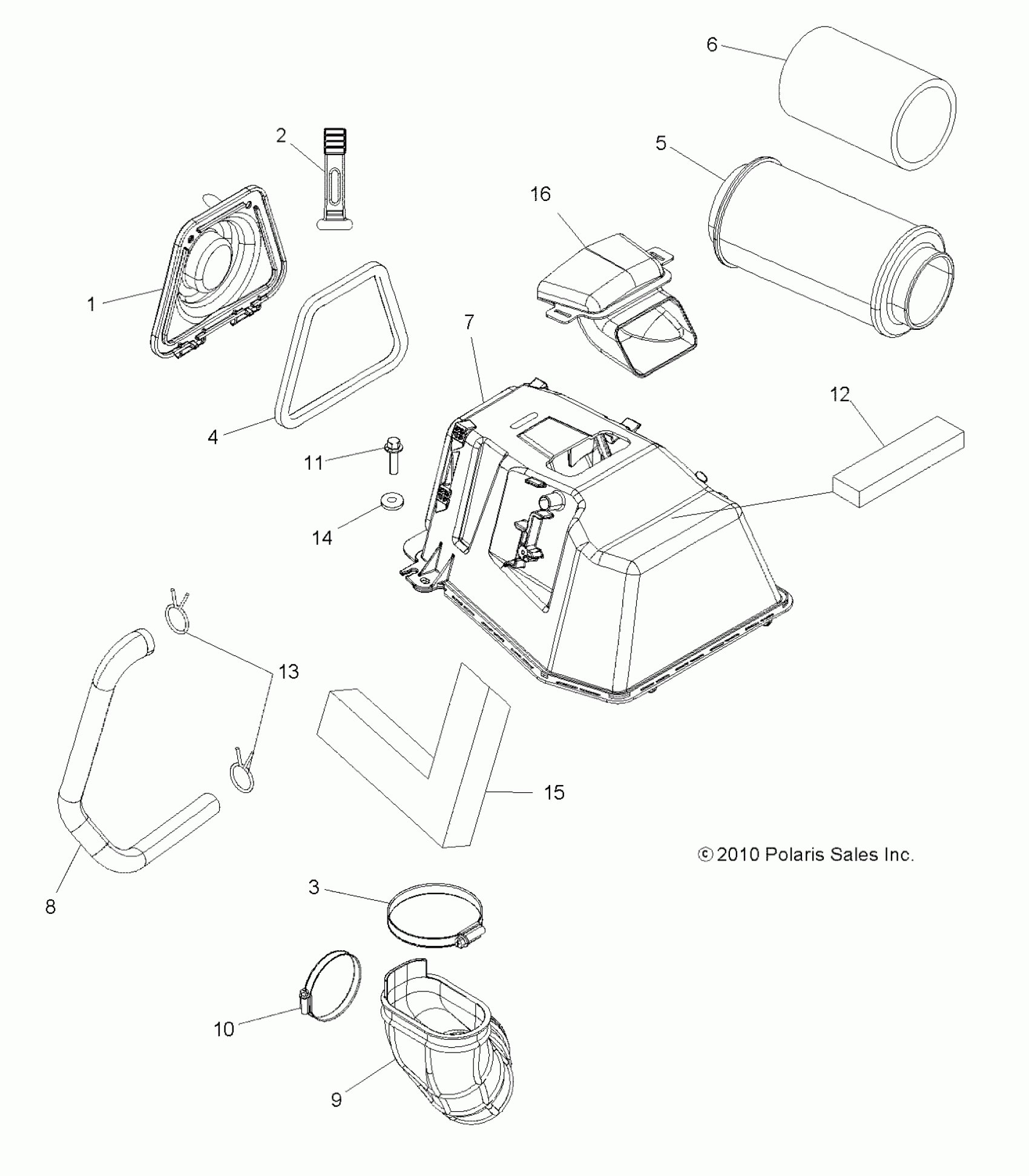

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ ENGINE, AIR INTAKE (Built 10/23/10 and After) - A11DX85AF/AG/AZ (49ATVAIRINTAKE11SP850) Diagram

#

Description
Price

1

ASM., COVER, AIRBOX [INCL. 1,4]

1204395

Unavailable

1

COVER, AIRBOX

5438881

$39.99

2

STRAP-AIRBOX TOP

5433150

$24.27

3

CLAMP

7081626

$7.99

4

SEAL, AIRBOX COVER

5813359

$6.79

5

FILTER, AIR INTAKE

7080595

Unavailable

6

Filter, Precleaner Sleeve

5811633

$11.99

7

Box, Air Intake

5438882

$149.75

8

Hose, Breather, Twin

5413889

$49.99

9

Boot, Throttle Body, Twin

5413125

Unavailable

10

CLAMP, WORM DRIVE

7081626

$7.99

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

12

FOAM

5813409

$6.39

13

CLAMP, HOSE

7081026

$7.99

14

Washer, Flat

7555859

$1.49

15

FOAM

5813410

$19.99

16

HOOD, AIR INTAKE

5413575

$35.99
