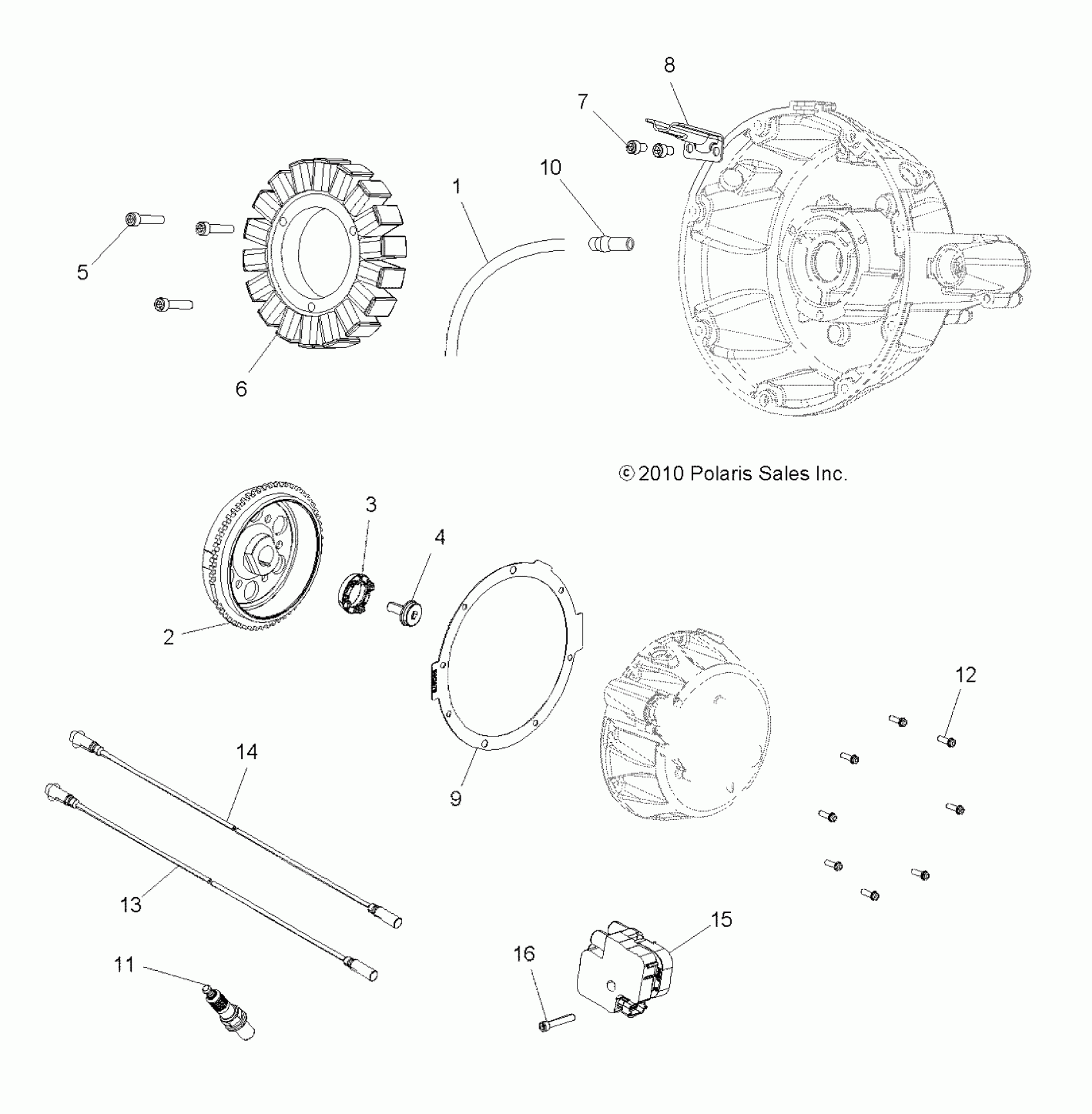

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ ELECTRICAL, IGNITION SYSTEM - A11DX85AF/AG/AZ (49ATVMAGNETO11SPXP850) Diagram

#

Description
Price

1

TUBING, NYLON

8360077

$14.56

2

Flywheel

4011428

$580.94

3

Coupler, Water Pump, Flywheel

5136307

$30.54

4

Bolt, Water Pump Drive, LH [Built 9/22/10 and Before]

5136389

Unavailable

4

Bolt, Water Pump Drive, LH [Built 9/23/10 and After]

5137471

Unavailable

5

SCREW

7518544

$5.65

6

Stator w/Grommet

4011427

Unavailable

7

SCREW

7518765

$3.97

8

RETAINER, STATOR WIRE

5250018

$19.84

9

Gasket, Stator Cover

5813267

$40.46

10

FITTING

7052463

$11.41

11

Plug, Spark

3022225

$6.35

12

SCREW

7518576

$3.17

13

Wire, Spark Plug, 356mm

4012343

$60.70

14

Wire, Spark Plug, 406mm

4012344

$64.75

15

COIL-EFI

4010425

$242.84

16

SCREW

7518922

$3.17
