Partiron

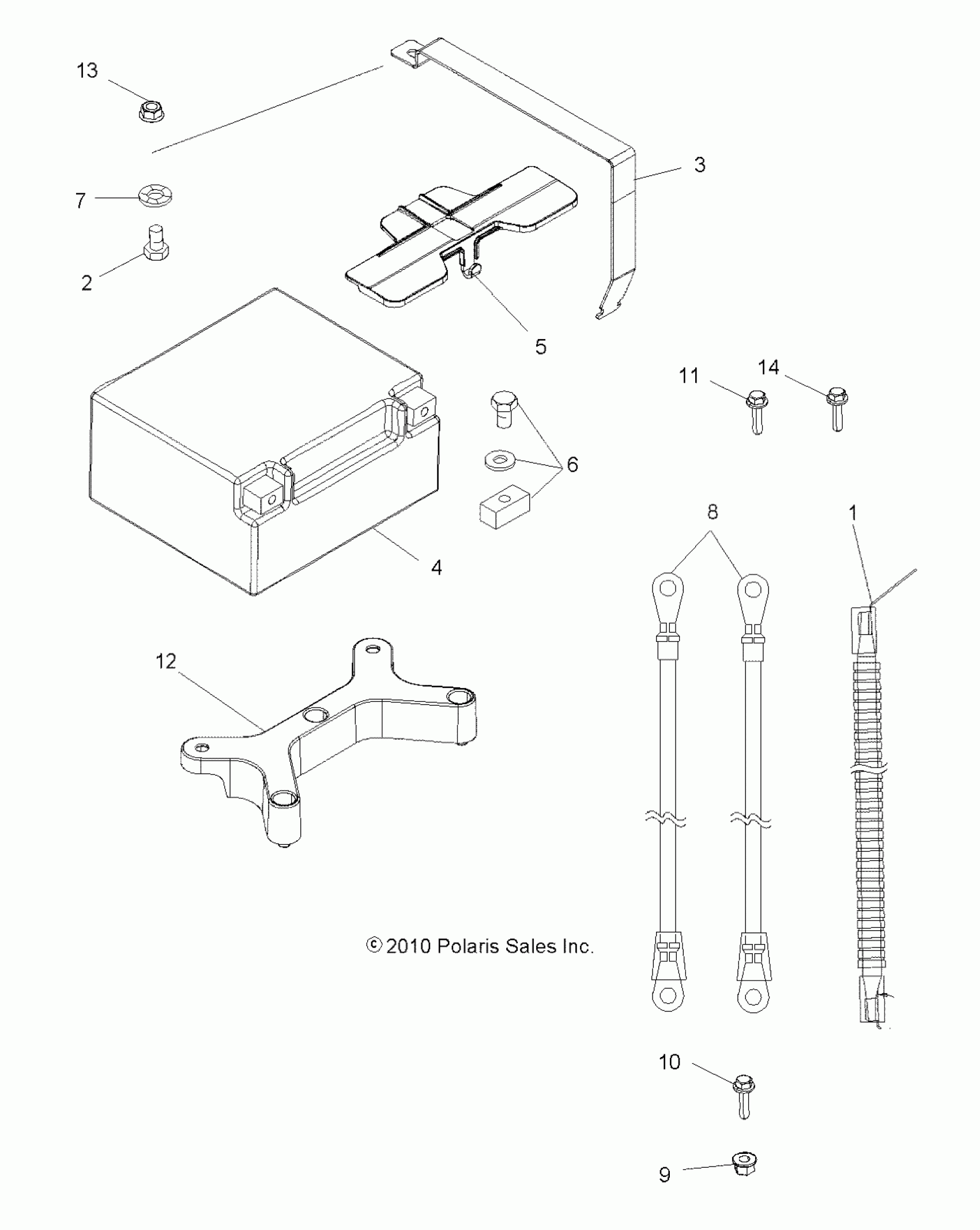

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ ELECTRICAL, BATTERY - A11DX85AF/AG/AZ (49ATVBATTERY1SPTRGEPS850) Diagram

#

Description
Price

1

CABLE, BATTERY/SOLENOID

4012710

$43.99

2

SCREW

7518925

$3.19

3

BRKT-BATTERY,30AH [USED W/4011224]

5253600

$35.99

3

BRACKET, BATTERY STRAP [USED W/4011496]

5253372

$12.31

4

BATTERY, SEALED, 30 AH [OPT.]

4011224

Unavailable

4

BATTERY, 18-AH [STD.]

4011496

Unavailable

5

COVER, BATTERY

5438299

$14.39

6

BATTERY BOLT KIT

2201357

$11.19

7

RETAINER, BOLT

7670154

$1.49

8

CABLE, BLACK

4012709

$31.99

9

NUT-M6 FLANGE,NYLOC

7547274

$1.49

10

SCREW, FLANGE

7519145

$3.99

11

BOLT

7518613

$3.99

12

SPACER, BATTERY

5438228

$10.39

13

NUT-M6 FLANGE,NYLOC

7547274

$1.49

14

SCREW

7517653

Unavailable
