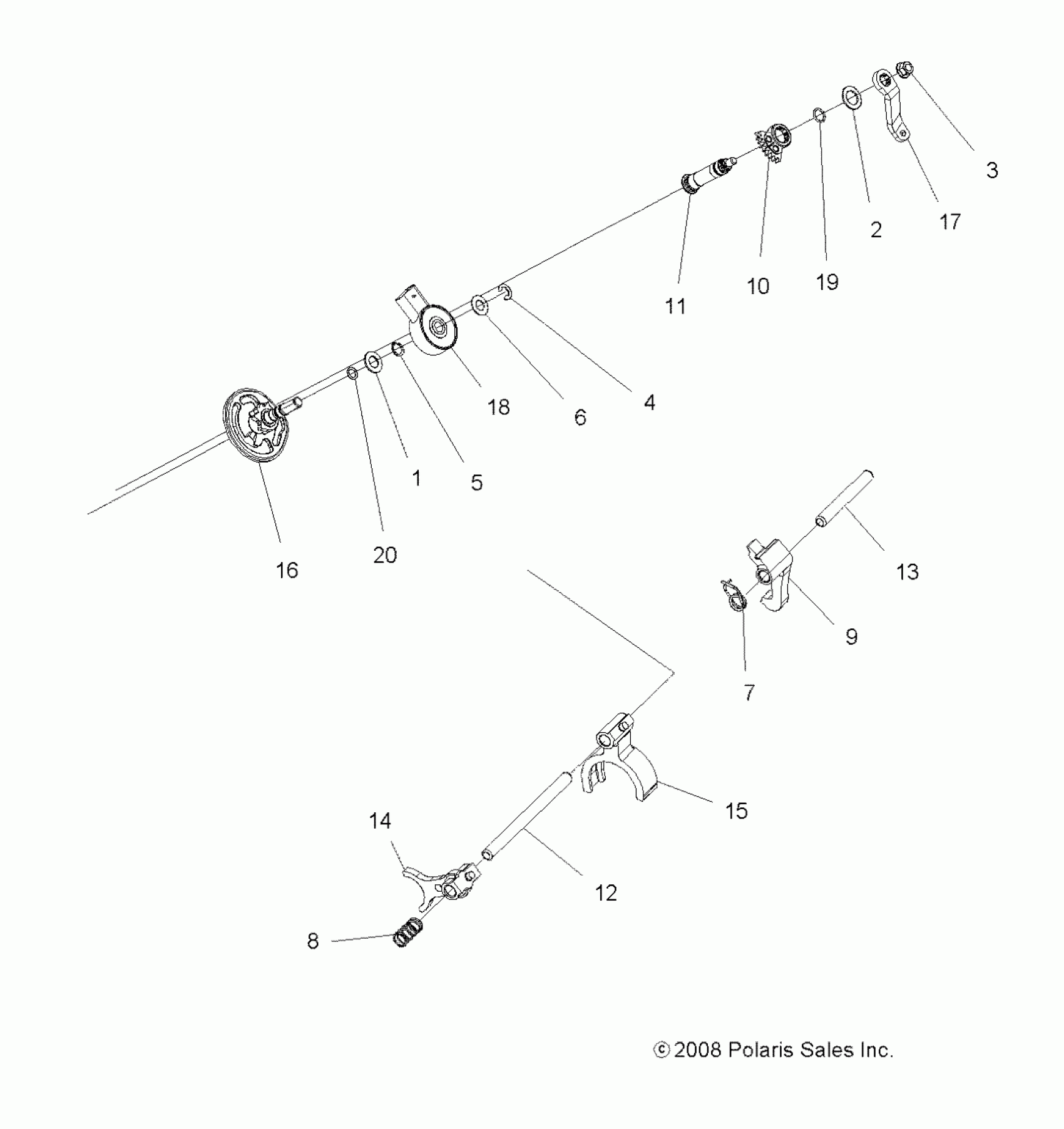

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS - A11DX85AF/AG/AZ (49ATVSHIFT09SPXP850) Diagram

#

Description
Price

-

ASM., TRANSMISSION [INCL. ALL]

1332848

$2,719.19

1

WASHER, THRUST

3234636

$7.99

2

WASHER, THRUST

3234637

$11.19

3

NUT, LOCK

3233961

$2.79

4

RING, SNAP

3233834

$10.39

5

RING, RETAINING, EXTERNAL

3234639

$10.39

6

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

7

SPRING, PARK PAWL, TORSION

3234787

$23.99

8

SPRING, COMPRESSION

3234687

$7.99

9

PAWL, PARK

3234692

Unavailable

10

GEAR, 38T

3234694

$27.99

11

SHAFT, SHIFT

3234712

$63.99

12

Rail, Shift, Shaft

3234714

$27.99

13

RAIL, PARK SHAFT

3234716

$27.99

14

FORK, SHIFT

3235342

$83.99

15

FORK, SHIFT

3234766

$83.99

16

ASM., SWITCH SHAFT

3234767

$115.99

17

BELLCRANK, 15T

3234724

$23.99

18

SWITCH, ROTARY

3233835

Unavailable

19

O-RING

3233828

$6.79

20

O-RING

3234730

$7.99
