- SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ
DRIVE TRAIN, FRONT GEARCASE INTERNALS - A11DX85AF/AG/AZ (49ATVGEARCASEFWBD1332804)

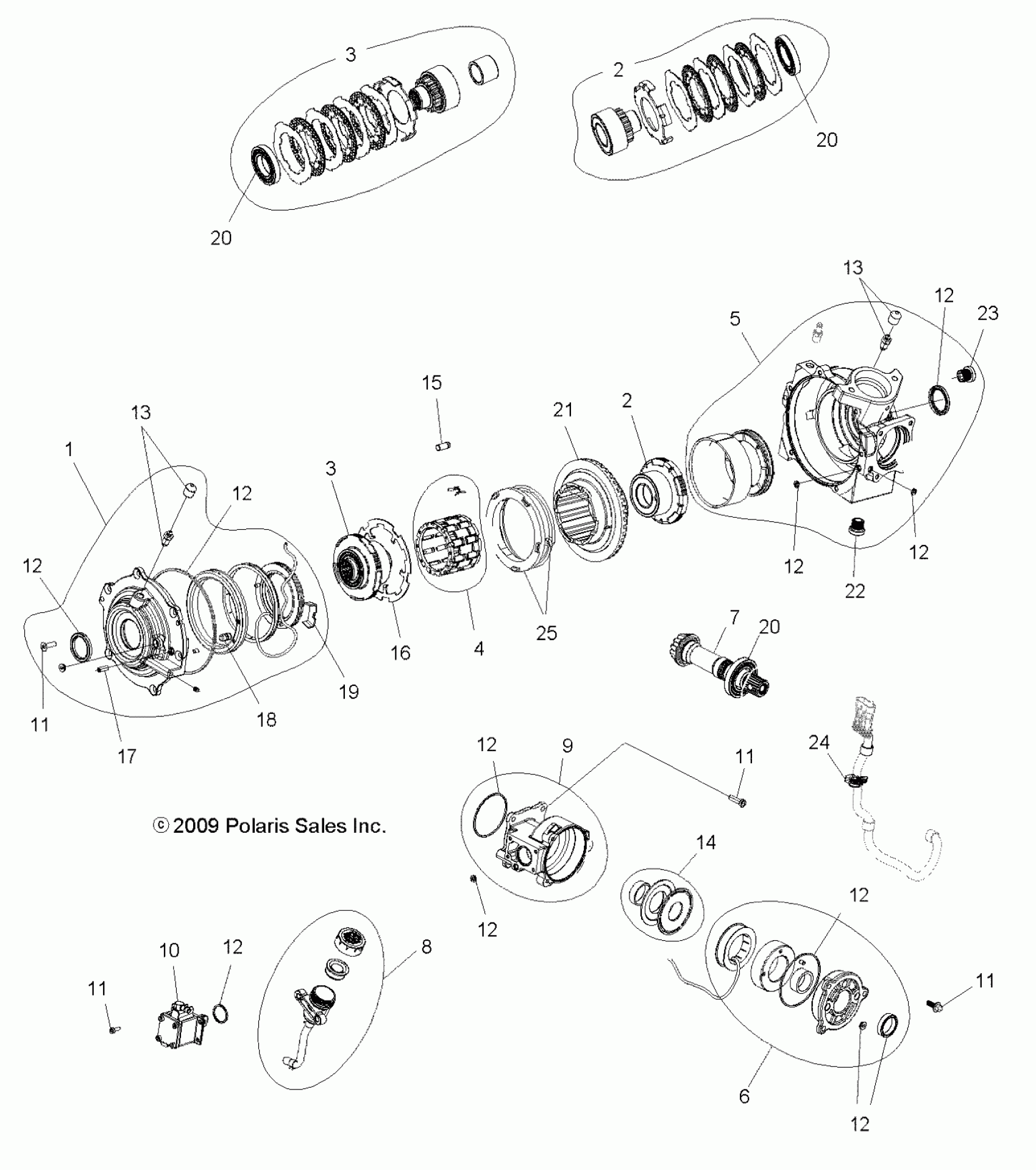

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ DRIVE TRAIN, FRONT GEARCASE INTERNALS - A11DX85AF/AG/AZ (49ATVGEARCASEFWBD1332804) Diagram
#
-
Asm., Gearcase, ADC
1332804
Unavailable
1
ASM., OUTPUT COVER [INCL. O-RING, DOWEL PIN, SET SCREW, SEAL, COVER, BLEEDER, THRUST BUTTON, PLATES, 4WD COIL, PISTON, GROMMET, COIL POCKET INSERT]
3235164
$428.99
2
Asm., Output Hub, Male/Female [Incl. 2,3, Hubs, Disks, Bearings, Bushing]
3235202
$534.99
2
Asm., Output Hub, Male/Female [Incl. 2,3, Hubs, Disks, Bearings, Bushing]
3235202
$534.99
3
Asm., Output Hub, Male/Female [Incl. 2,3, Hubs, Disks, Bearings, Bushing]
3235202
$534.99
3
Asm., Output Hub, Male/Female [Incl. 2,3, Hubs, Disks, Bearings, Bushing]
3235202
$534.99
4
ASM., ROLL CAGE [INCL. CAGE, H-CLIP SET]
3234907
$323.99
4
ASM., ROLL CAGE, BILLET ALUM [HIGH PERFORMANCE ACCESSORY][INCL. CLIP SET]
3235262
$526.49
5
ASM., GEARCASE, ADC [INCL. CASE, PLUGS, VENT, BLEEDER, SEAL, PISTON, BUSHING]
3234747
$683.36
6
ASM., COVER INPUT [INCL. COVER, BACKDRIVE COIL, SEALS, BEARING, COIL POCKET INSERT]
3234748
$187.99
7
Asm., Gear, Ring and Pinion [Incl. 7,20,21]
3235201
$518.69
8
ASM., RESERVOIR [INCL. BODY, CAP, DIAPHRAGM, HOSE, CLAMP]
3234751
$67.99
9
ASM., NECK [INCL. NECK, O-RING]
3234752
$565.49
10
ASM., PUMP [INCL. COMPLETE PUMP]
3234750
$413.59
11
KIT, FASTENER [INCL. ALL FASTENERS]
3234745
$63.99
11
KIT, FASTENER [INCL. ALL FASTENERS]
3234745
$63.99
11
KIT, FASTENER [INCL. ALL FASTENERS]
3234745
$63.99
11
KIT, FASTENER [INCL. ALL FASTENERS]
3234745
$63.99
12
KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]
3234746
$75.99
12
KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]
3234746
$75.99
12
KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]
3234746
$75.99
12
KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]
3234746
$75.99
12
KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]
3234746
$75.99
12
KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]
3234746
$75.99
12
KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]
3234746
$75.99
12
KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]
3234746
$75.99
12
KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]
3234746
$75.99
12
KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]
3234746
$75.99
13
Kit, Bleeder Valve [Incl. Valve, Cover]
3234431
$31.99
13
Kit, Bleeder Valve [Incl. Valve, Cover]
3234431
$31.99
14
KIT, CAM AND ARMATURE, FWBD [INCL. BUSHING, CAM, ARMATURE PLATE]
3234434
$135.99
15
KIT-ROLLER [INCL. FULL ROLLER SET]
3234393
$111.84
16
PLATE, ARMATURE
3234407
$107.99
17
Screw, Set
2203731
$23.99
18
Button, Thrust
2203732
$27.99
19
BUTTON, THRUST, DU
2203733
$23.99
20
Bearing
3234390
$35.99
20
Bearing
3234390
$35.99
20
Bearing
3234390
$35.99
21
Asm., Gear, Ring and Pinion [Incl. 7,20,21]
3235201
$518.69
22
KIT-PLUG,DRAIN
2203738
$35.99
23
KIT-PLUG,FILL
2203739
$39.99
24
CLIP, STRAIN RELIEF
3234601
$4.79
25
KIT, SPRING [INCL. TORSION SPRING, RETAINER]
3234908
$87.99
