- SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ
BODY, REAR RACK ASM. - A11DX85AF/AG/AZ (49ATVRACKMTGRR11SPTRG550)

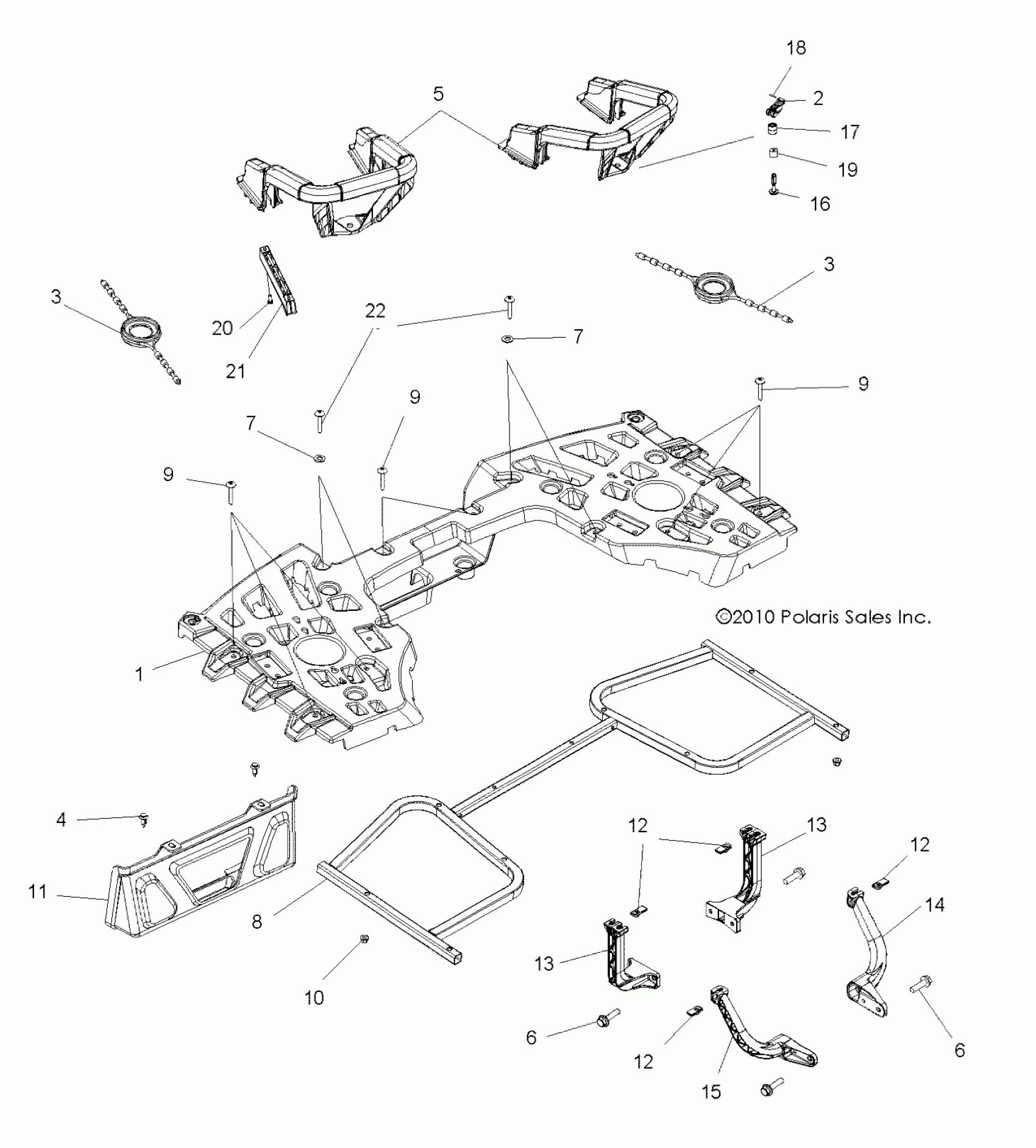

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ BODY, REAR RACK ASM. - A11DX85AF/AG/AZ (49ATVRACKMTGRR11SPTRG550) Diagram
#
Description
Price
1
RACK, REAR, BLACK
5437928-070
$219.99
2
HANDLE
5438117
$4.84
3
STRAP, CUP HOLDER, RUBBER
5413600
$8.79
3
STRAP, CUP HOLDER, RUBBER
5413600
$8.79
4
Rivet
7661855
$1.49
5
ASM., HANDGRIP, PASSENGER [INCL. 2,16-21, HANDGRIP]
2634066
$79.99
6
BOLT
7518555
$2.39
6
BOLT
7518555
$2.39
7
WASHER
7558302
$1.59
7
WASHER
7558302
$1.59
8
SUPPORT, REAR RACK, BLACK
1017834-329
$227.99
9
SCREW
7519090
$3.99
9
SCREW
7519090
$3.99
9
SCREW
7519090
$3.99
10
NUT-M6 FLANGE,NYLOC
7547274
$1.49
11
COVER, RACK, REAR, BLACK
5438112-070
Unavailable
12
CLIP-"U",M6.0X1.0
7547366
$5.99
12
CLIP-"U",M6.0X1.0
7547366
$5.99
12
CLIP-"U",M6.0X1.0
7547366
$5.99
13
SUPPORT, RACK, REAR
5632444
$35.99
13
SUPPORT, RACK, REAR
5632444
$35.99
14
SUPPORT, RACK, LH
5632451
$35.99
15
SUPPORT, RACK, RH
5632452
$35.99
16
SHAFT, LOCK AND RIDE ANCHOR
5138411
$5.59
17
BUSHING
5438504
$3.19
18
Pin, Dowel
7661982
$2.39
19
Bushing, Rubber
5413887
$3.19
20
CAP, HANDLE
5438706
$8.79
21
SCREW
7519283
$3.19
22
SCREW
7519001
$3.99
