- SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ
BODY, REAR CAB and FOOTWELL - A11DX85AF/AG/AZ (49ATVFOOTWELL11SPTRG550)

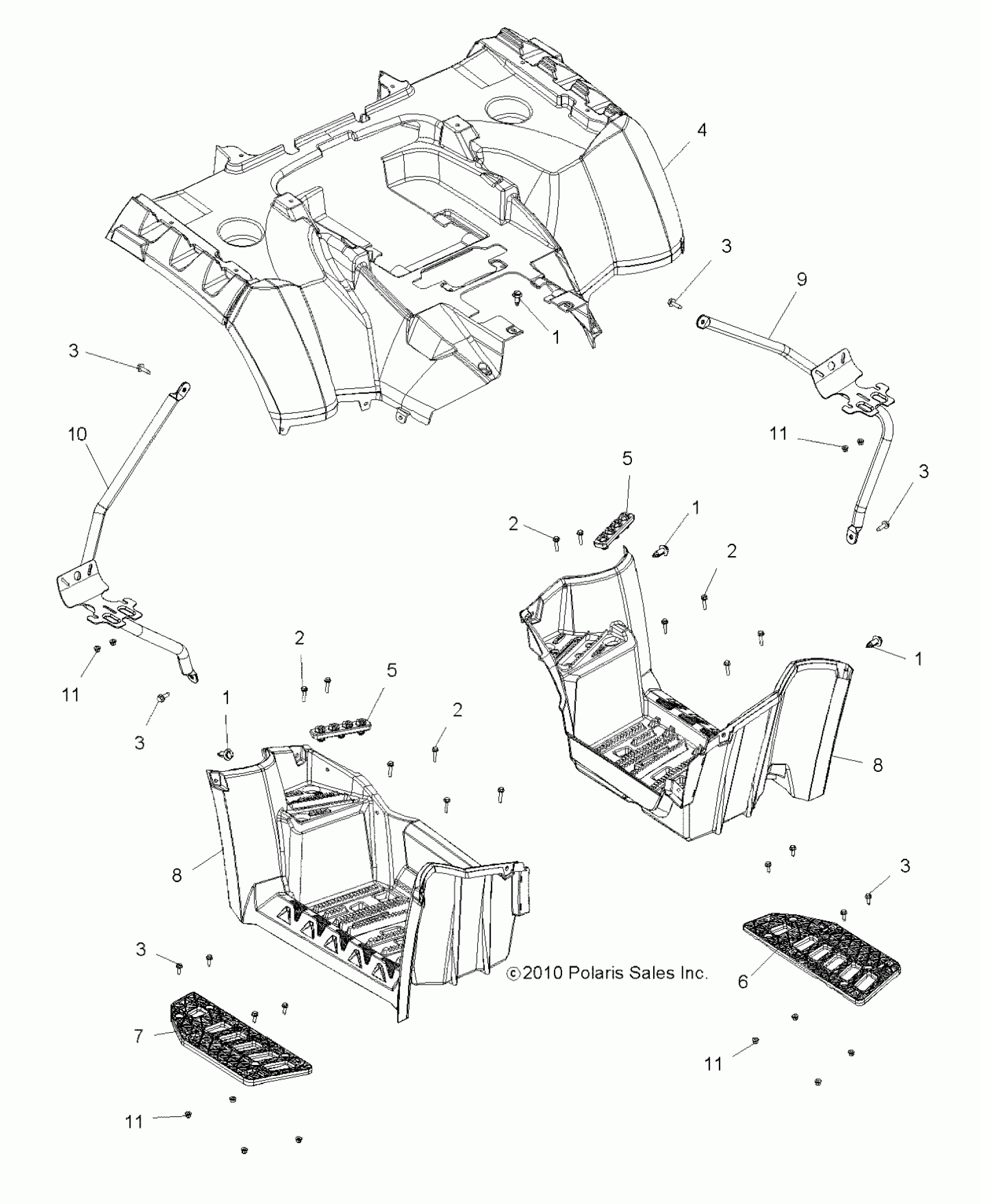

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ BODY, REAR CAB and FOOTWELL - A11DX85AF/AG/AZ (49ATVFOOTWELL11SPTRG550) Diagram
#
Description
Price
1
Rivet
7661855
$1.49
1
Rivet
7661855
$1.49
1
Rivet
7661855
$1.49
1
Rivet
7661855
$1.49
2
SCREW, FLANGE
7519202
$3.99
2
SCREW, FLANGE
7519202
$3.99
2
SCREW, FLANGE
7519202
$3.99
2
SCREW, FLANGE
7519202
$3.99
3
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
3
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
3
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
3
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
3
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
3
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
4
Cab, Rear, Broadwalk Blue [AF]
5438282-524
Unavailable
4
Cab, Rear, Indy Red [AZ]
5438282-293
Unavailable
4
Cab, Rear, Super Graphite [AG]
5437887-509
$569.99
5
PAD, FOOTWELL, SHORT
5413165
$23.99
5
PAD, FOOTWELL, SHORT
5413165
$23.99
6
Support, Footpad, LH
5437600
$39.99
7
SUPPORT, FOOTPAD, RH
5437601
$39.99
8
Footwell, Black, LH
5437888-070
$227.99
8
FOOTWELL, BLACK, RH
5439078-070
$227.99
8
Footwell, Black, LH
5437888-070
$227.99
8
FOOTWELL, BLACK, RH
5439078-070
$227.99
9
SUPPORT, FOOLWELL, LH
1017556-329
$95.99
10
SUPPORT, FOOLWELL, RH
1017557-329
$95.99
11
NUT-M6 FLANGE,NYLOC
7547274
$1.49
11
NUT-M6 FLANGE,NYLOC
7547274
$1.49
11
NUT-M6 FLANGE,NYLOC
7547274
$1.49
11
NUT-M6 FLANGE,NYLOC
7547274
$1.49
