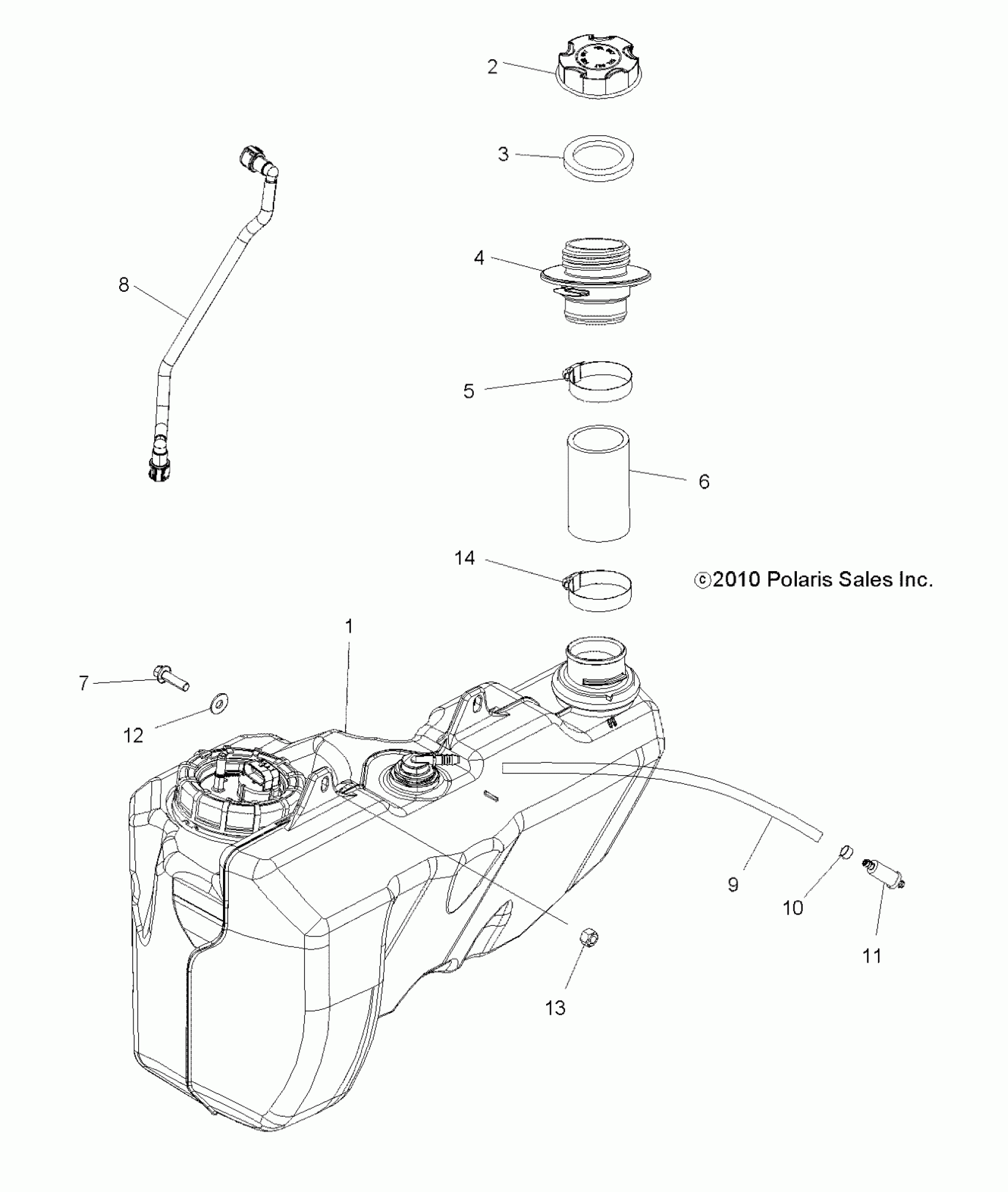

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ BODY, FUEL TANK - A11DX85AF/AG/AZ (49ATVFUEL11SPTRG550) Diagram

#

Description
Price

1

KIT, FUEL PUMP [INCL. PUMP ASM., GASKET, NUT, INSTRUCTIONS]

2204401

$431.19

1

Asm., Fuel Tank w/Pump [Incl. Pump]

2521079

Unavailable

2

Cap, Gas Tank [Incl. Gasket]

5433687

$20.22

3

GASKET

5812123

$5.65

4

INLET, FUEL

5436898

$79.99

5

Clamp, Narrow Band

7080413

$3.19

6

HOSE, FUEL FILL

5413142

$31.99

7

SCREW, FLANGE

7519202

$3.99

8

Asm., Fuel Line

2521082

Unavailable

9

LINE, VENT

8450126-104

Unavailable

10

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

11

FILTER

2530009

$5.65

12

Washer, Flat

7555859

$1.49

13

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

14

CLAMP, CONSTANT TENSION

7081413

$11.19
