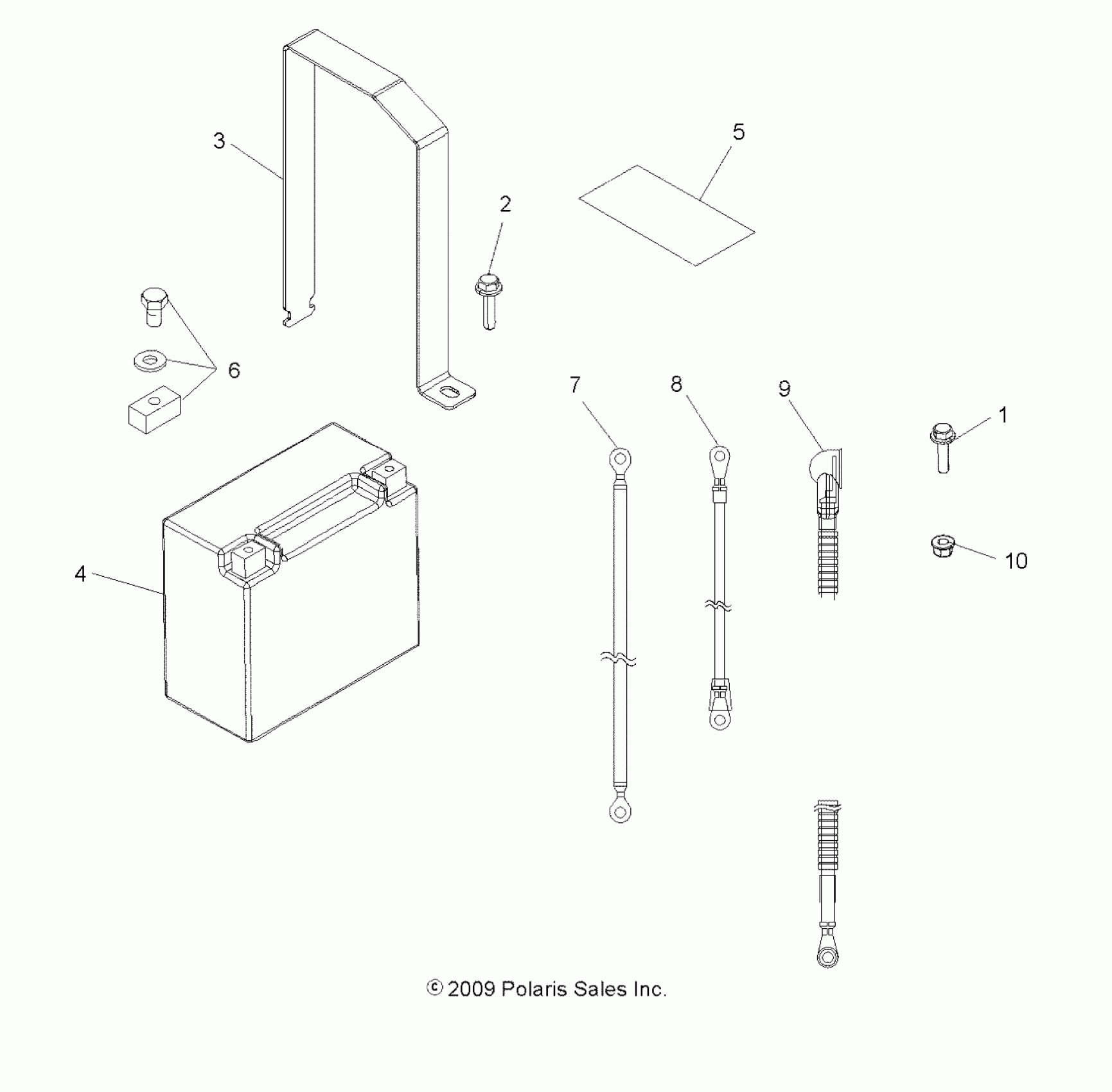

Polaris SPORTSMAN TOURING EPS 850 - A10DX85AL/AF ELECTRICAL, BATTERY - A10DX85AL/AF (49ATVBATTERY10SPTRGEPS8) Diagram

#

Description

Price

1

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

3

Bracket, Battery Strap [Used w/4011496]

5250571

$49.99

3

BRKT-BATTERY,30AH [USED W/4011224]

5253600

$36.41

4

BATTERY, SEALED, 30 AH [OPT.]

4011224

$199.98

4

BATTERY, 18-AH [STD.]

4011496

$151.99

5

PAD, RACK MOUNT

5810455

$3.22

6

BATTERY BOLT KIT

2201357

Unavailable

7

Cable, Black

4011988

$23.81

8

Cable, Black, Battery/Frame

4011233

Unavailable

9

Cable, Battery to Solenoid [Red]

4012477

$30.32

10

NUT-M6 FLANGE,NYLOC

7547274

$1.19
