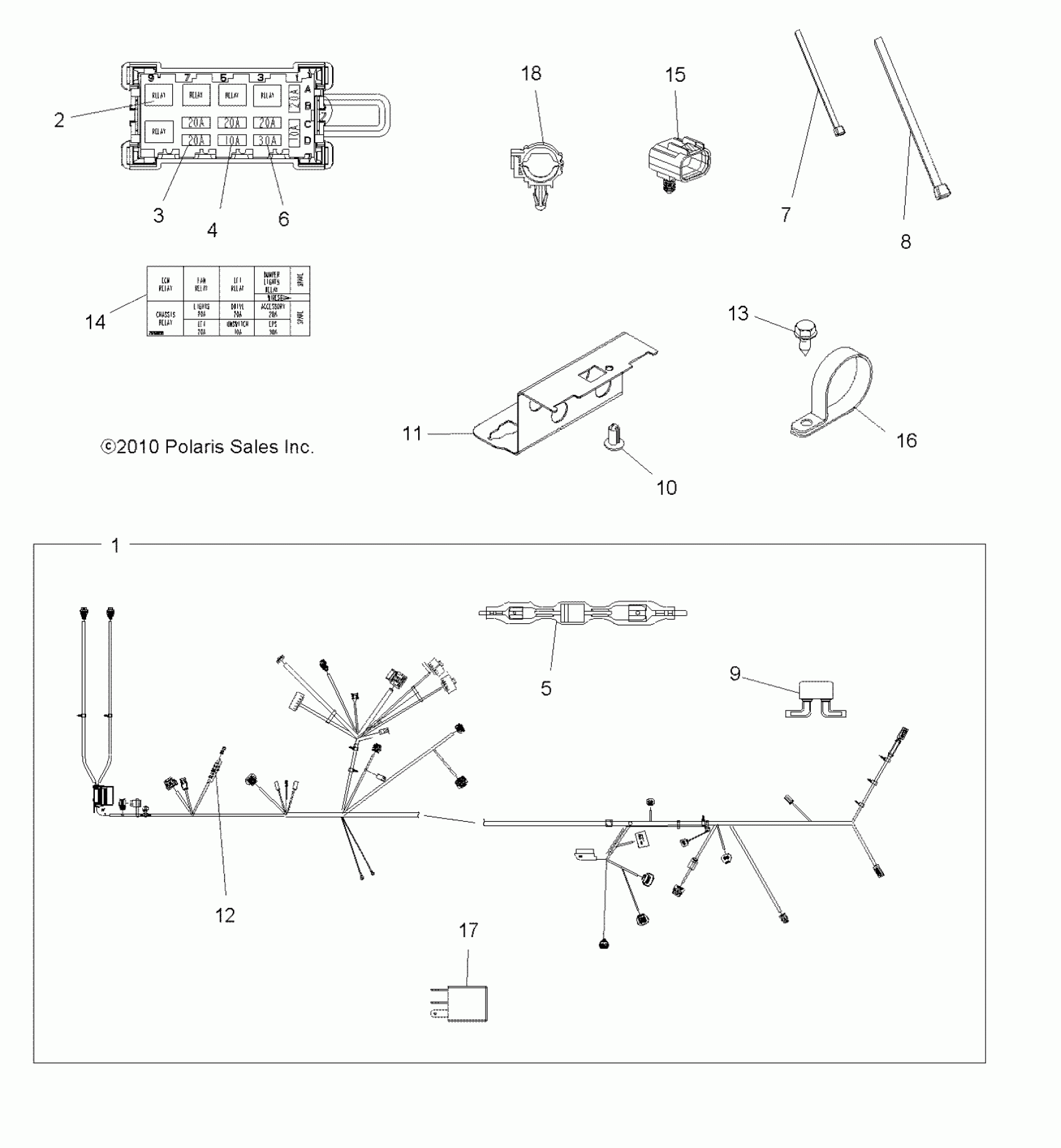

Polaris SPORTSMAN TOURING EPS 550 - A11DX55AF/AZ ELECTRICAL, HARNESS - A11DX55AF/AZ (49ATVHARNESS11SPTR550) Diagram

Kit, Harness, Resistor Module [For Gear Position]

2204890

$127.99

KIT, HARNESS, TPS

2878498

$113.32

Harness, Main [Incl. 1-6,9,12,14,17, All Kits]

2411462

$854.99

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

DIODE, 6AMP

2411035

$51.99

FUSE-MAIN,30 AMP

2434015

$7.19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

BREAKER, CIRCUIT, 10 AMP, SEALED

2410692

$24.27

CLIP, PUSH ON

7670125

$7.99

BRACKET, FUSE BLOCK

5253502

$6.39

Kit, Fusible Link, .8 MM

2202607

$39.99

Kit, Fusible Link, 2.0 mm

2203632

$35.99

Screw

7512095

$4.79

LABEL, FUSE BOX

7175808

Unavailable

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

CLAMP-HOSE

7080807

$9.59

Kit, Repair, Relay, EPS [Incl. Relay, Harness Wire Repair, Conn.,Shrink Tubin, Instr.]

2204853

$75.99

CLIP, ROUTING

7670116

$5.59
