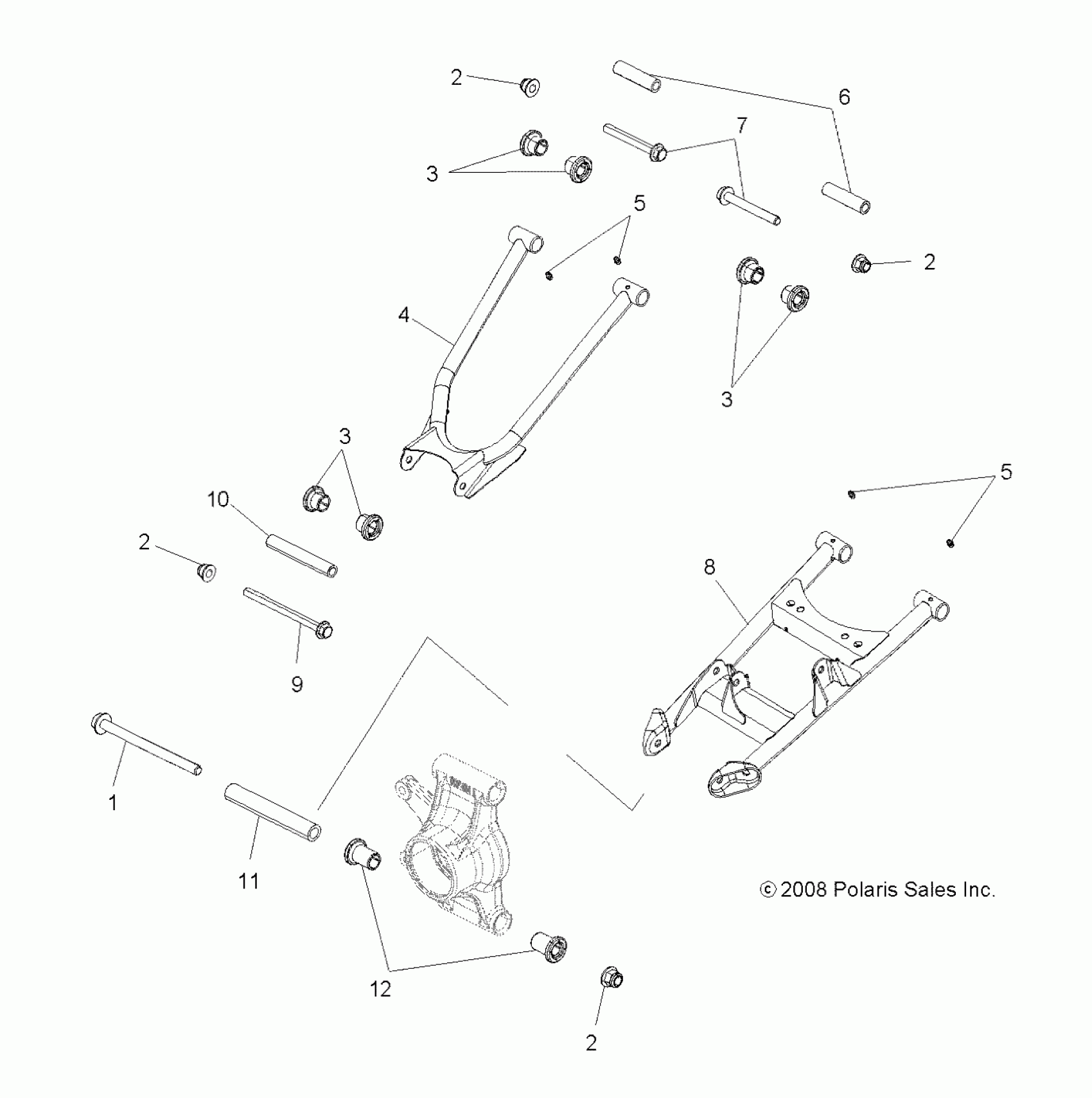

Polaris SPORTSMAN TOURING EPS 550 - A10DX55AL/AF SUSPENSION, REAR - A10DX55AL/AF (49ATVSUSPRR10SP550X2) Diagram

#

Description
Price

1

BOLT, FLANGE

7518467

$5.59

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

3

Bushing, Control Arm

5436832

$2.38

3

Bushing, Control Arm

5436832

$2.38

3

Bushing, Control Arm

5436832

$2.38

4

Arm, Control, Upper, Rear, RH, Black

1017259-067

$139.99

4

Arm, Control, Upper, Rear, LH, Black

1017258-067

$139.99

5

FITTING, LUBRICATING

7080433

$1.49

5

FITTING, LUBRICATING

7080433

$1.49

6

Shaft, A-Arm

5135270

$12.79

7

BOLT, FLANGE

7518466

$4.79

8

Arm, Control, Lower, Rear, RH, Black

1017257-067

$106.49

8

Arm, Control, Lower, Rear, LH, Black

1017256-067

$106.49

9

BOLT, FLANGE

7518675

$5.59

10

Shaft, Pivot

5135501

Unavailable

11

SHAFT, A-ARM, LOWER CONTROL ARM

5136473

Unavailable

12

BUSHING, LOWER CONTROL ARM

5437651

$6.39
