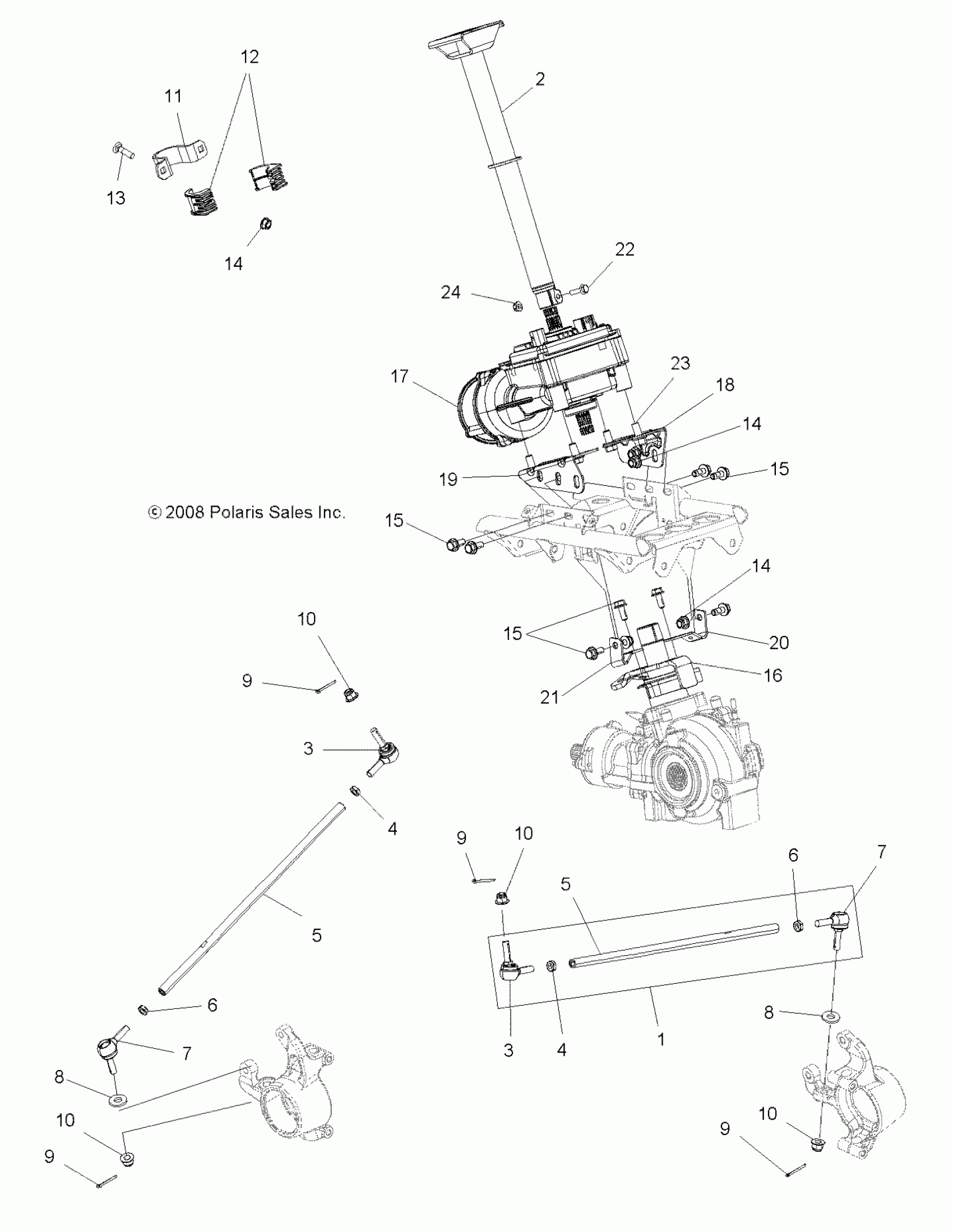

Polaris SPORTSMAN TOURING EPS 550 - A10DX55AL/AF STEERING, STEERING POST ASM. - A10DX55AL/AF (49ATVSTEERING09SPEPS850) Diagram

#

Description
Price

1

Asm., Tie Rod [Incl. 3-7]

1823620

$123.49

2

Post, Steering, Upper, Black

1823656-329

Unavailable

3

Rod End, RH

7061175

$90.24

3

Rod End, RH

7061175

$90.24

4

Nut, Jam, RH

7547452

$4.35

4

Nut, Jam, RH

7547452

$4.35

5

Tie Rod

5136903

$48.56

5

Tie Rod

5136903

$48.56

6

Nut, Jam, LH

7547451

$4.35

6

Nut, Jam, LH

7547451

$4.35

7

Rod End, LH

7061174

$91.97

7

Rod End, LH

7061174

$91.97

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

9

Pin, Cotter

7661205

$0.79

9

Pin, Cotter

7661205

$0.79

9

Pin, Cotter

7661205

$0.79

9

Pin, Cotter

7661205

$0.79

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

BRACKET, STEERING, UPPER

5249143

$28.32

12

Bushing, Steering, Upper

5436128

$4.76

13

BOLT, CARRIAGE

7518479

$3.97

14

Nut, Flange

7547317

$2.38

14

Nut, Flange

7547317

$2.38

14

Nut, Flange

7547317

$2.38

15

Bolt, Flange

7518450

$1.59

15

Bolt, Flange

7518450

$1.59

15

Bolt, Flange

7518450

$1.59

16

Post, Steering, Lower

1823467

$161.89

17

Asm., Power Steering [Built 11/09/09 and Before]

2411500

$1,158.99

17

Asm., Power Steering [Built 11/10/09 and After]

2411630

$1,158.99

18

Bracket, Power Steering, LH, Black

5253075-329

Unavailable

19

Bracket, Power Steering, RH, Black

5253076-329

Unavailable

20

BRACKET, FRONT DRIVE, LH, BLACK

5253166-329

Unavailable

21

BRACKET, FRONT DRIVE, RH, BLACK

5253167-329

Unavailable

22

SCREW, FLANGE

7516827

$6.35

23

BOLT, FLANGE

7518558

$3.97

24

NUT-M6 FLANGE,NYLOC

7547274

$1.19
