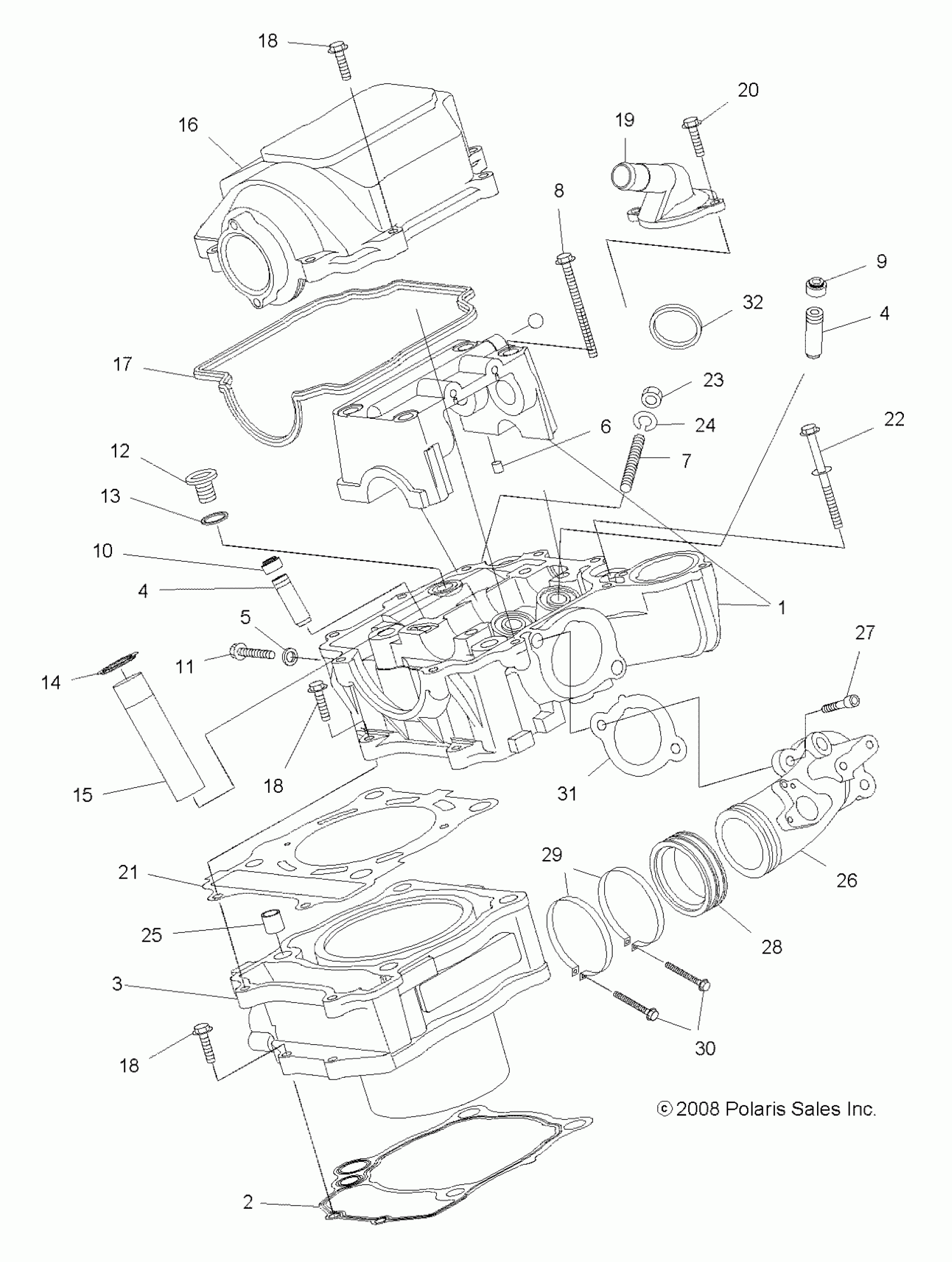

Polaris SPORTSMAN TOURING EPS 550 - A10DX55AL/AF ENGINE, CYLINDER - A10DX55AL/AF (49ATVCYLINDER09SPXP550) Diagram

#

Description
Price

1

Head, Cylinder [Incl. 4-7,9-11,15, Rocker Arm Support]

3090093

$849.99

2

GASKET, CYLINDER

3090092

Unavailable

3

UNIT, CYLINDER

3090202

Unavailable

4

GUIDE, VALVE

3090203

Unavailable

4

GUIDE, VALVE

3090203

Unavailable

5

GASKET, COPPER

3088030

$4.84

6

PIN, DOWEL

3084721

$4.76

7

STUD

3090095

Unavailable

8

BOLT, FLANGE

3090096

$4.76

9

Seal, Intake Valve

3090097

$13.75

10

SEAL, EXHAUST VALVE

3090098

$12.13

11

BOLT, FLANGE

3088135

Unavailable

12

PLUG

3084860

$7.14

13

GASKET

3084861

$4.84

14

GASKET, SPARK PLUG PIPE

3090100

$8.08

15

PIPE, SPARK PLUG

3090099

$36.41

16

COVER, ROCKER

3090101

$82.29

17

O-RING, ROCKER COVER

3090204

Unavailable

18

BOLT, FLANGE

3084874

Unavailable

18

BOLT, FLANGE

3084874

Unavailable

18

BOLT, FLANGE

3084874

Unavailable

19

ADAPTOR, WATER OUT

3090205

Unavailable

20

BOLT, FLANGE

3084877

Unavailable

21

GASKET, HEAD

3090104

Unavailable

22

ASM., BOLT, CYLINDER HEAD

3090206

Unavailable

23

Nut

3087295

Unavailable

24

Washer, Spring

3080530

$3.17

25

KNOCK, PIPE

3087266

Unavailable

26

PIPE, INTAKE

3090137

$97.13

27

BOLT, SOCKET HEAD

3081330

$3.97

28

ADAPTER

3090208

$64.75

29

ASM., BAND ADAPTER [INCL. 30]

3090209

$24.27

30

SCREW

3081497

$2.38

31

GASKET, INTAKE PIPE

3090144

$4.84

32

GASKET, EXHAUST

3090004

$32.37
