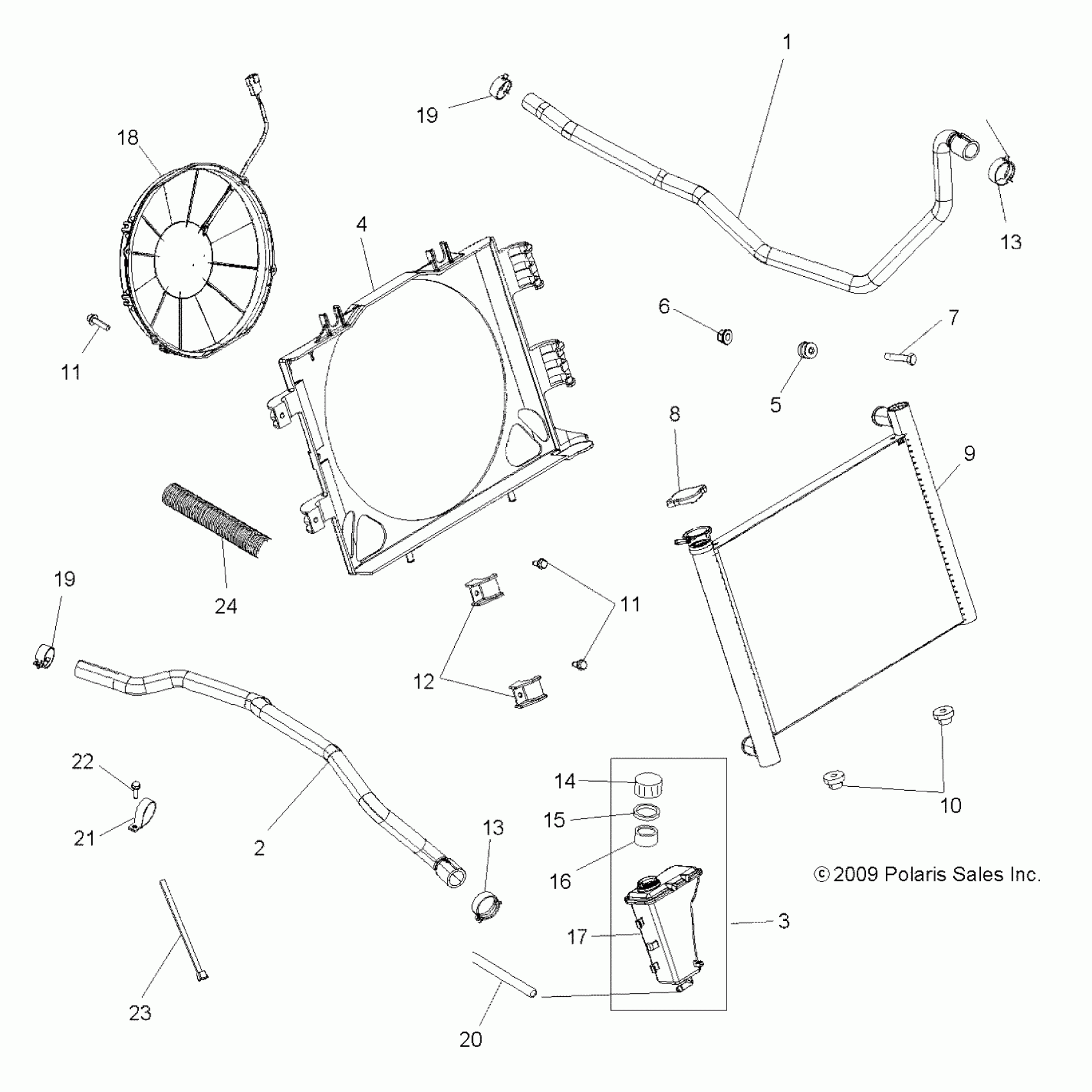

Polaris SPORTSMAN TOURING EPS 550 - A10DX55AL/AF ENGINE, COOLING SYSTEM - A10DX55AL/AF (49ATVCOOL10SPX2550) Diagram

#

Description
Price

1

Hose, Radiator, Engine Out [Built 10/10/09 and After]

5413847

Unavailable

1

Asm., Hose, Radiator, Engine Out [Incl. 19][Built 10/09/09 and Before]

1240409

$95.19

2

Asm., Hose, Radiator, Engine In [Incl. 19]

1240447

$121.41

3

ASM., BOTTLE, COOLANT RECOVERY [INCL. 14-17,20]

1240406

$71.99

4

Shroud

5437627

Unavailable

5

ASM., GROMMET AND INSERT

5413509

$15.99

6

NUT-M6 FLANGE,NYLOC

7547274

$1.49

7

SCREW

7519202

$3.99

8

CAP, PRESSURE

1240466

$55.99

9

RADIATOR

1240404

$428.99

10

GROMMET, RADIATOR MOUNT, LOWER

5413510

$15.99

11

Screw

7518918

$15.03

11

Screw

7518918

$15.03

12

Clip

5437628

$17.59

13

Clamp, Springband

7080843

$3.99

13

Clamp, Springband

7080843

$3.99

14

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

15

GASKET-OVERFLOW CAP

5810279

$2.41

16

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

17

BOTTLE, COLLANT RECOVERY

5437257

Unavailable

18

Fan

2411118

Unavailable

19

Clamp, Hose

7081519

Unavailable

19

Clamp, Hose

7081519

Unavailable

20

LINE, COOLANT

8450128-27

$31.99

21

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

22

SCREW

7518513

$4.79

23

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

24

TUBING, CONVOLUTED

5521324

$9.70
