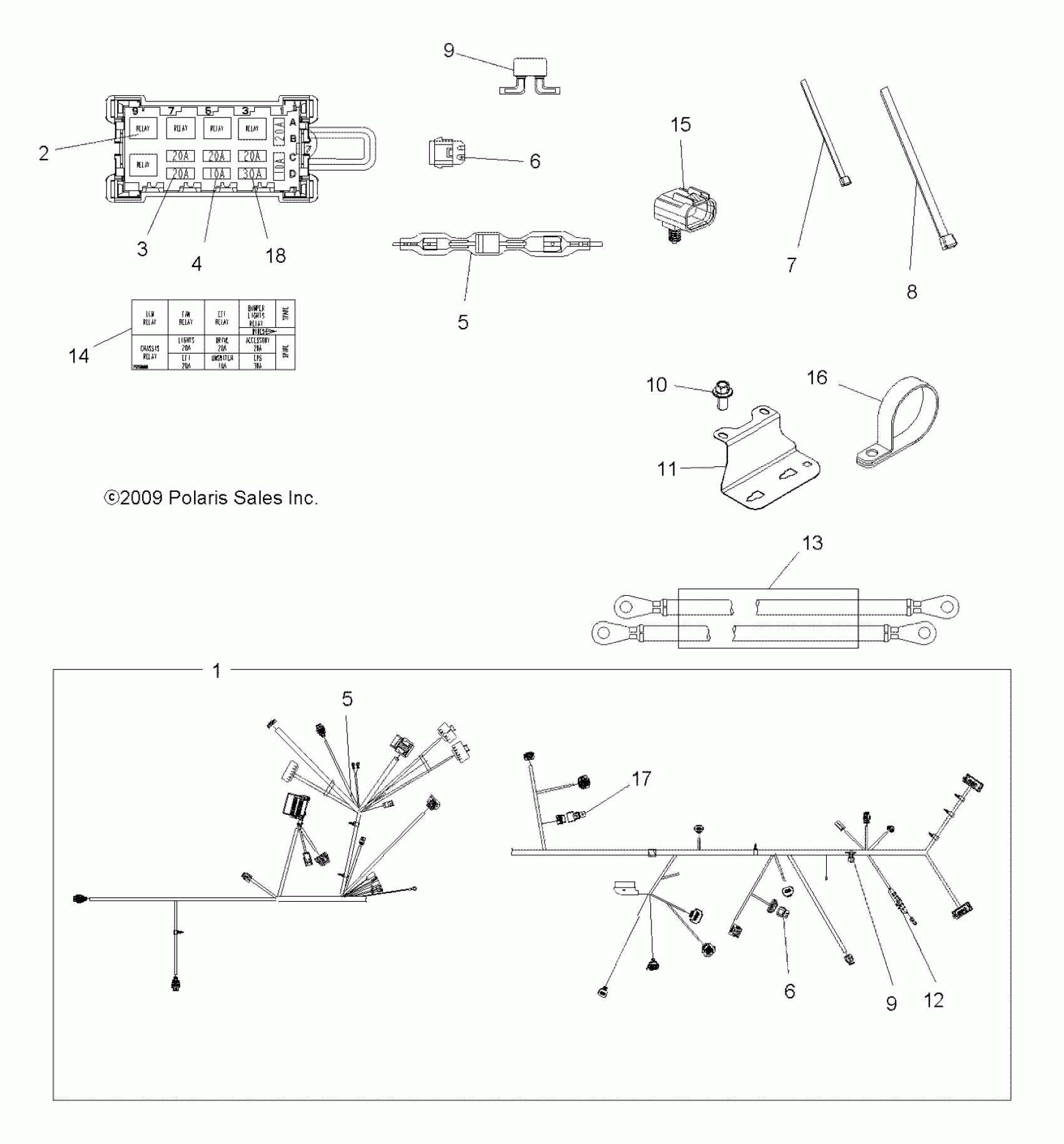

Polaris SPORTSMAN TOURING EPS 550 - A10DX55AL/AF ELECTRICAL, HARNESS - A10DX55AL/AF (49ATVHARNESS10SPTRGEPS) Diagram

KIT, HARNESS, TPS

2878498

$113.32

Harness, Main [Incl. 1-6,9,12,14,17,18, All Kits]

2411188

Unavailable

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

DIODE, 6AMP

2411035

$51.99

DIODE, 6AMP

2411035

$51.99

Kit, Harness, Resistor Module

2204890

$127.99

Kit, Harness, Resistor Module

2204890

$127.99

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

Breaker, Circuit, 8 AMP, Sealed

2411228

Unavailable

Breaker, Circuit, 8 AMP, Sealed

2411228

Unavailable

SCREW

7518513

$4.79

Bracket, Mount, Fuse Block

5250452

$13.99

Kit, Fusible Link, .8 MM

2202607

$39.99

Kit, Fusible Link, 2.0 mm

2203632

$35.99

Harness, Winch, Pre-Wire

2411209

$62.39

LABEL, FUSE BOX

7175808

Unavailable

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

CLAMP-HOSE

7080807

$9.59

Relay, SPST, Sealed

4011407

$51.99

FUSE-MAIN,30 AMP

2434015

$7.19
