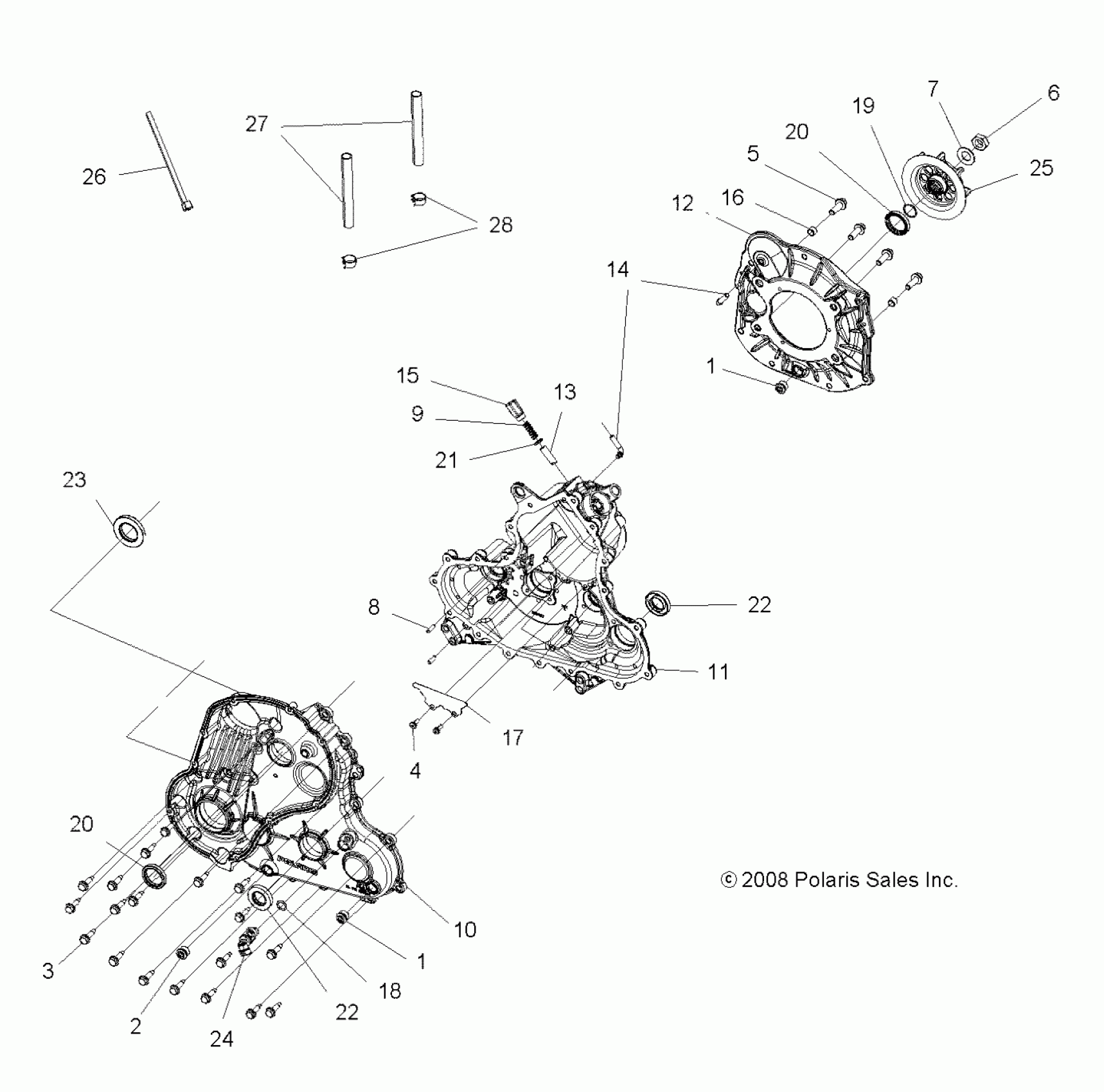

Polaris SPORTSMAN TOURING EPS 550 - A10DX55AL/AF DRIVE TRAIN, MAIN GEARCASE - A10DX55AL/AF (49ATVGEARCASE09SPXP550) Diagram

#

Description
Price

-

Asm., Transmission, Drive System

1332786

$1,929.99

1

PLUG, M18 X 1.5 [Qty 1 if built 11/09/09 and After]

3234755

$27.99

1

PLUG, M18 X 1.5 [Qty 1 if built 11/09/09 and After]

3234755

$27.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

4

SCREW, TORX

3234309

$7.19

5

SCREW, HEX

3234634

$13.59

6

NUT-HEX M18X1.5

3234788

$23.99

7

Washer

3234638

$23.99

8

PIN, DOWEL 6 X 20

3234330

$7.19

9

SPRING, COMPRESSION

3234790

$19.99

10

GEARCASE, GTO COVER

3234689

$351.99

11

Gearcase, Main

3234690

$320.99

12

Bellhousing [Not Equipped w/#1 if built 11/09/09 and After]

3234691

Unavailable

13

BULLET DETENT

3234695

$31.99

14

TUBE, VENT

3234230

$9.59

15

PLUG, DETENT

3234715

$35.99

16

PIPE, KNOCK

3234765

$12.79

17

Deflector, Oil

3234725

$12.79

18

O-RING

3234302

$7.19

19

O-Ring

3234728

$9.59

20

SEAL, TRIPLE LIP

3234739

$31.99

20

SEAL, TRIPLE LIP

3234739

$31.99

21

O-RING

3234729

$13.75

22

SEAL, TRIPLE LIP

3234892

$35.99

22

SEAL, TRIPLE LIP

3234892

$35.99

23

SEAL, TRIPLE LIP

3234769

$43.99

24

SENSOR, SPEED

4012167

$100.38

25

Coupler

5136575

Unavailable

26

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

27

Line, Fuel

8450003-1525

Unavailable

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49
