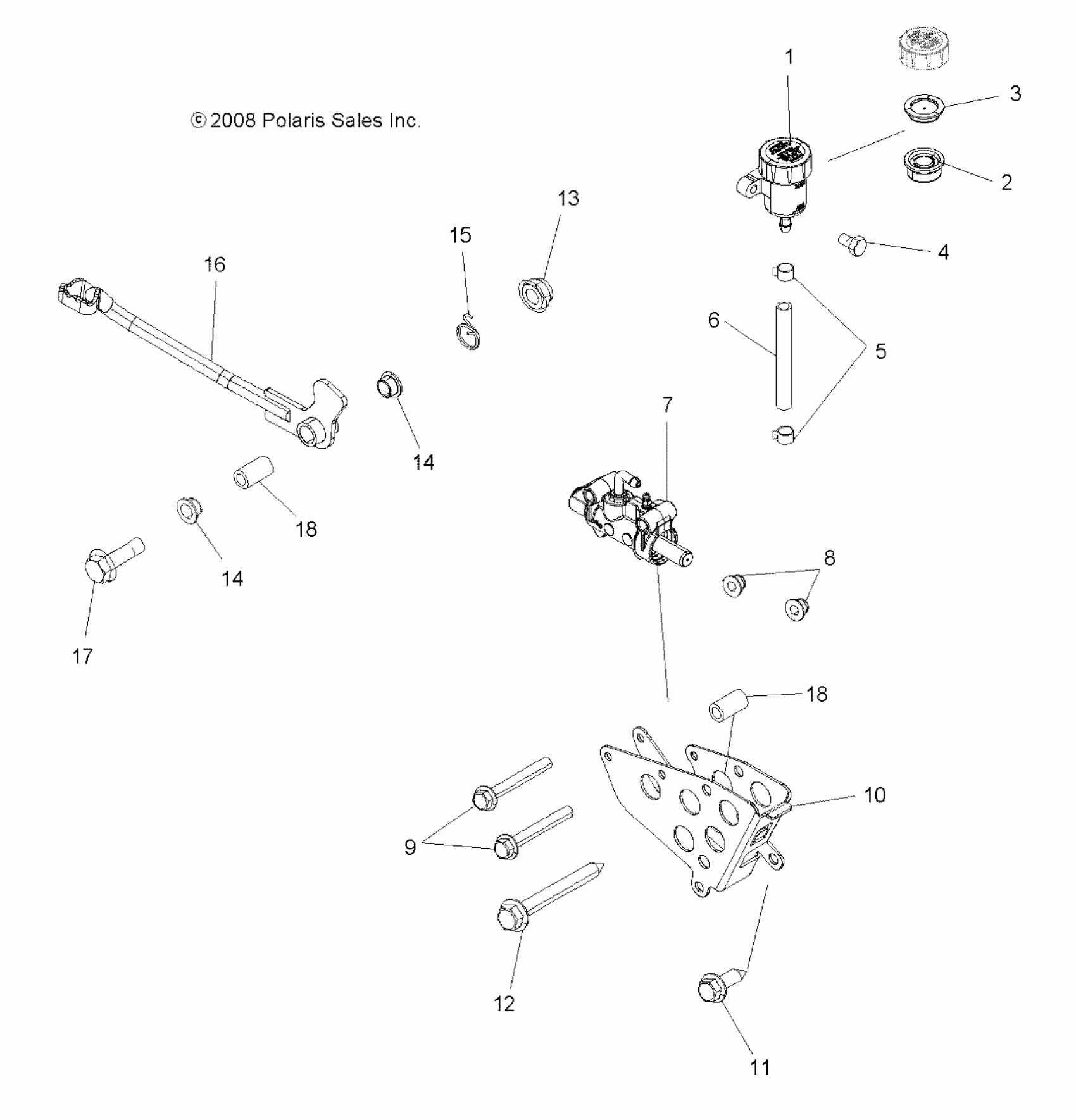

Polaris SPORTSMAN TOURING EPS 550 - A10DX55AL/AF BRAKES, BRAKE PEDAL and MASTER CYLINDER - A10DX55AL/AF (49ATVBRAKEFOOT10SP850) Diagram

#

Description
Price

1

ASM., RESERVOIR, BRAKE, REAR [INCL. 2,3, CAP]

1911224

$35.99

2

DIAPHRAGM, BRAKE RESERVOIR

5413262

$4.79

3

RING, BRAKE RESERVOIR

5437041

$5.59

4

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

5

HOSE CLAMP, RED

7080003

$1.49

6

HOSE, RESERVOIR, BRAKE

1911267-826

$14.39

7

ASM., MASTER CYLINDER

1911123

Unavailable

8

NUT-M6 FLANGE,NYLOC

7547274

$1.49

9

Screw

7517950

$5.59

10

BRACKET, MOUNT, BRAKE

5251561

$47.99

11

BOLT, FLANGE

7518555

$2.39

12

BOLT

7518677

$3.99

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

BUSHING, PIVOT, PEDAL

5433189

$3.99

14

BUSHING, PIVOT, PEDAL

5433189

$3.99

15

SPRING-TORSION,BRAKE

7041750

$8.79

16

LEVER, BRAKE, BLACK

1911207-067

$47.99

17

BOLT

7518559

$5.59

18

SPACER

5135720

$6.39

18

SPACER

5135720

$6.39
