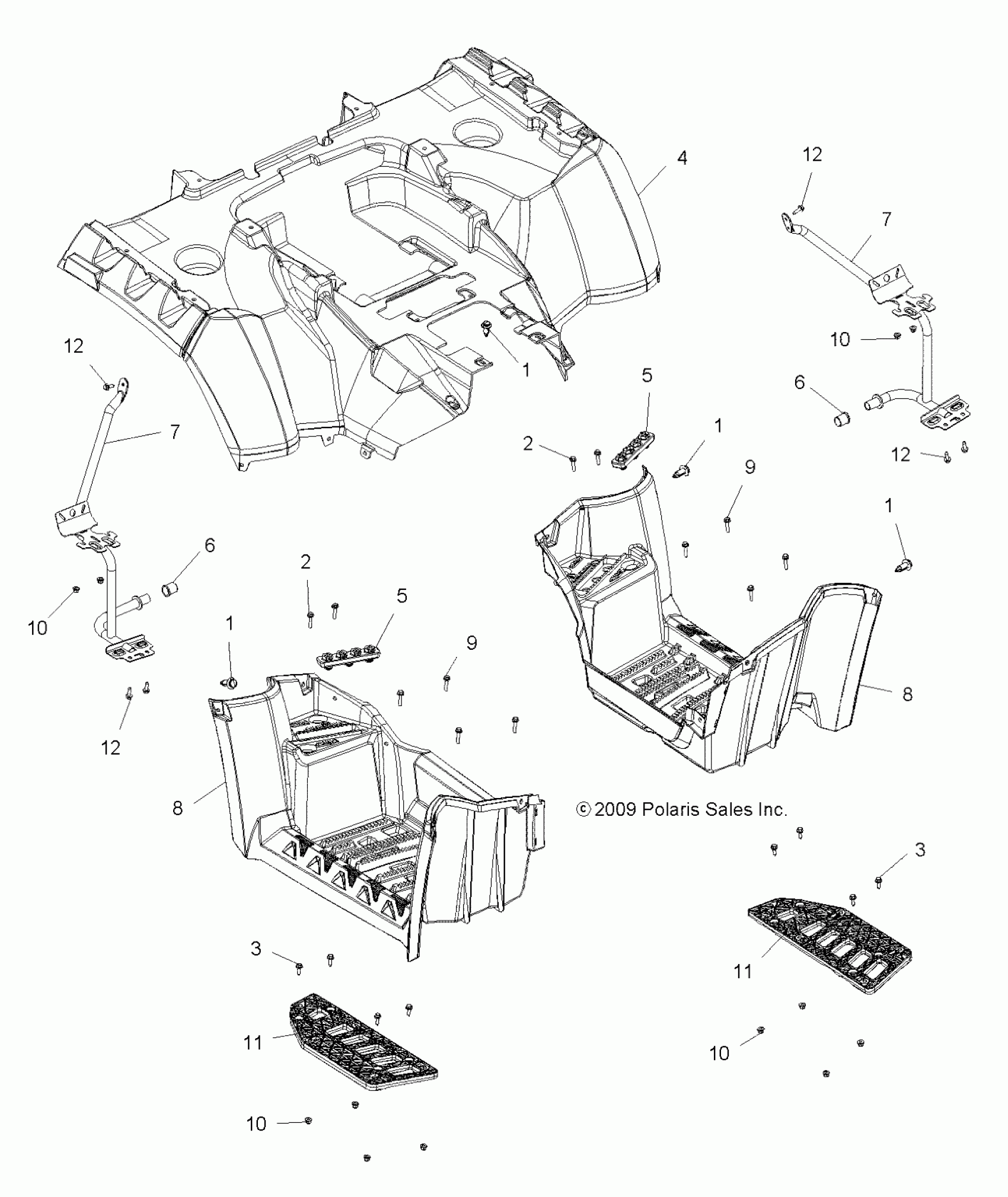

Polaris SPORTSMAN TOURING EPS 550 - A10DX55AL/AF BODY, REAR CAB and FOOTWELL - A10DX55AL/AF (49ATVFOOTWELL10SPTRGEPS) Diagram

#

Description
Price

1

Rivet

7661855

$1.19

1

Rivet

7661855

$1.19

1

Rivet

7661855

$1.19

1

Rivet

7661855

$1.19

2

SCREW

7519202

$3.97

2

SCREW

7519202

$3.97

3

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

3

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

4

Cab, Rear, Broadwalk Blue [AF]

5438282-524

Unavailable

4

Cab, Rear, Indy Red [AL]

5438282-293

Unavailable

5

PAD, FOOTWELL, SHORT

5413165

$24.27

5

PAD, FOOTWELL, SHORT

5413165

$24.27

6

Bushing

5433369

$11.90

6

Bushing

5433369

$11.90

7

Footwell, Passenger, Black, RH

1016824-329

Unavailable

7

Footwell, Passenger, Black, LH

1016823-329

$172.22

7

Footwell, Passenger, Black, RH

1016824-329

Unavailable

7

Footwell, Passenger, Black, LH

1016823-329

$172.22

8

Footwell, Black, LH

5437888-070

$230.70

8

Footwell, Black, RH

5437889-070

$230.70

8

Footwell, Black, LH

5437888-070

$230.70

8

Footwell, Black, RH

5437889-070

$230.70

9

SCREW, FLANGE

7519202

$3.97

9

SCREW, FLANGE

7519202

$3.97

10

NUT-M6 FLANGE,NYLOC

7547274

$1.19

10

NUT-M6 FLANGE,NYLOC

7547274

$1.19

10

NUT-M6 FLANGE,NYLOC

7547274

$1.19

10

NUT-M6 FLANGE,NYLOC

7547274

$1.19

11

Support, Foodpad, LH

5437600

$40.46

11

Support, Foodpad, RH

5437601

$40.46

11

Support, Foodpad, LH

5437600

$40.46

11

Support, Foodpad, RH

5437601

$40.46

12

SCREW, FLANGE

7519202

$3.97

12

SCREW, FLANGE

7519202

$3.97

12

SCREW, FLANGE

7519202

$3.97

12

SCREW, FLANGE

7519202

$3.97
