- SPORTSMAN TOURING EPS 550 - A10DX55AL/AF
BODY, PASSENGER SEAT BOTTOM and SEAT BACK - A10DX55AL/AF (49ATVSEATBOTTOM10SPTRGEPS)

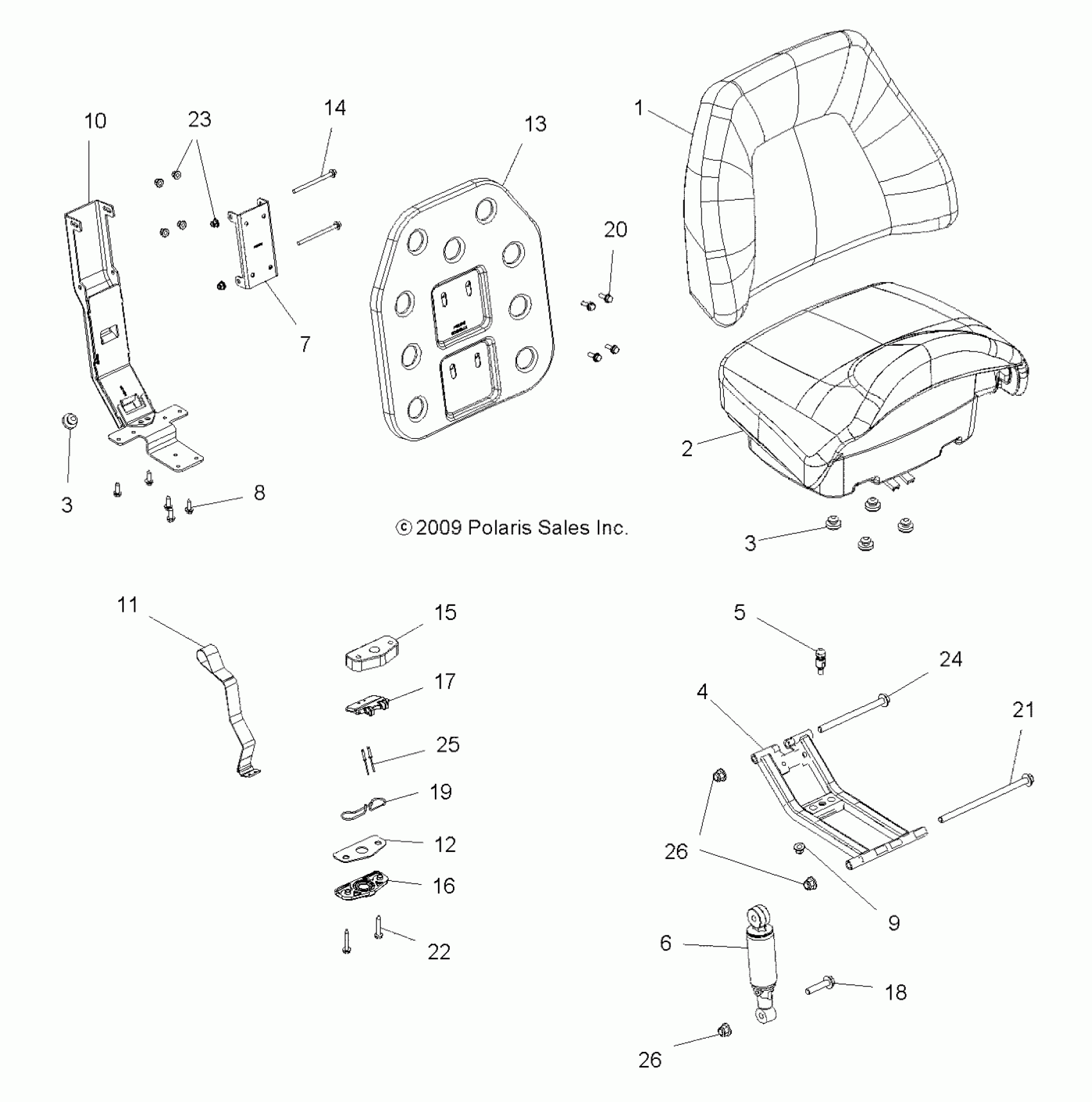

Polaris SPORTSMAN TOURING EPS 550 - A10DX55AL/AF BODY, PASSENGER SEAT BOTTOM and SEAT BACK - A10DX55AL/AF (49ATVSEATBOTTOM10SPTRGEPS) Diagram
#
Description
Price
1
Asm., Seat, Passenger, Back [Incl. Cover, Foil]
2684091
Unavailable
1
ASM., COVER, SEAT, PASSENGER, BACK
2684113
$127.99
2
COVERING, SEAT, BLACK
2684331-070
Unavailable
2
Asm., Seat, Passenger, Bottom, Black
2684332-070
Unavailable
3
BUMPER-RUBBER
5412067
$3.99
3
BUMPER-RUBBER
5412067
$3.99
4
PIVOT, SEAT FRAME, BLACK
1016837-329
$82.39
5
Plunger, Latch
5136319
$20.22
6
Asm., Shock, Seat [Built 5/18/10 and After]
1542870
$62.39
6
Asm., Shock, Seat, Indy Red [Built 5/17/10 and Before]
1542666-293
Unavailable
7
BRACKET, SEAT BACK, PIVOT, BLACK
5253184-329
$39.99
8
Bolt
7512232
$1.49
9
NUT-5/16-18 HX FLG NL-Y
7542343
$4.79
10
SUPPORT, SEAT BACK, BLACK
1017011-067
$479.59
11
ASM., STRAP, SEAT LATCH
2684439
$10.39
12
PLATE, SEAT LATCH
5251162
Unavailable
13
PLATE, SEAT BACK, SUPPORT
5251351-329
Unavailable
14
SCREW
7518407
$3.19
15
PLATE-TOP, SEAT BASE LATCH
5437119
$6.46
16
CAP-LATCH,SEAT
5437120
$7.99
17
HANDLE-SEAT BASE LATCH
5437121
$4.84
18
BOLT
7518531
$4.79
19
SPRING, SEAT LATCH
7081466
$39.99
20
SCREW
7516822
$2.39
21
SCREW
7519040
$11.19
22
SCREW
7518418
$3.99
23
NUT-M6 FLANGE,NYLOC
7547274
$1.49
24
SCREW
7519041
$10.39
25
Rivet
7621220
$2.39
26
Nut, Flange
7547313
$1.49
26
Nut, Flange
7547313
$1.49
