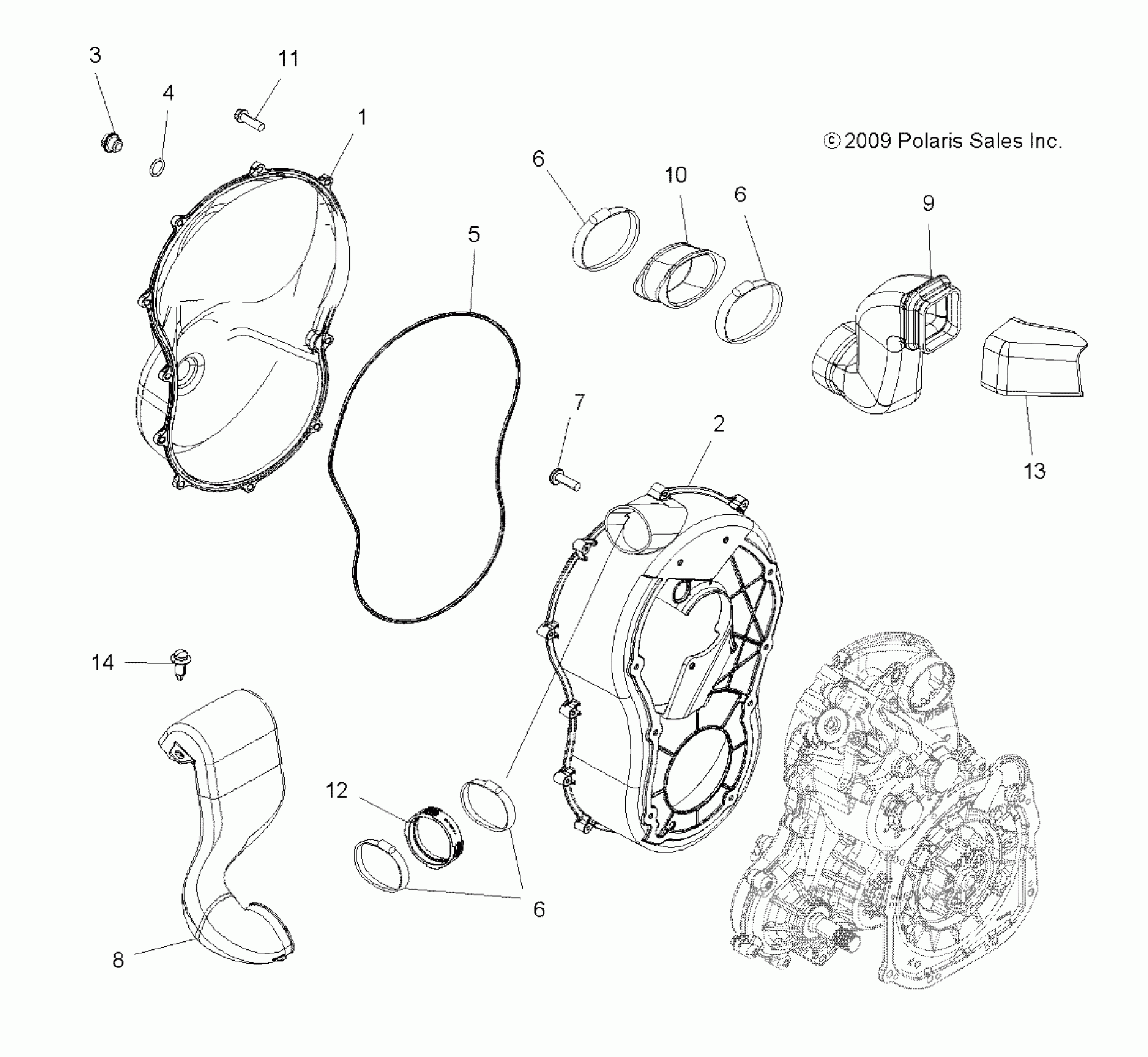

Polaris SPORTSMAN TOURING EPS 550 - A10DX55AL/AF BODY, CLUTCH COVER - A10DX55AL/AF (49ATVCLUTCHCVR10SPTRGEPS) Diagram

Description

Price

ASM., COVER, OUTER [INCL. 3,4]

2633919

$149.75

COVER, CLUTCH INNER

5438127

$178.08

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

O RING-.364X.504X.07

5410542

$4.84

SEAL

5521802

$36.41

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

SCREW

7518914

$3.17

DUCT, OUTLET

5438392

$58.08

DUCT, AIR INLET

5436820

$48.56

Boot, Clutch, Inlet

5413177

$40.46

SCREW

7512094

$1.59

BOOT, OUTLET, DUCT

5413667

$8.08

BOOT, INLET, DUCT

5413516

$9.70

Rivet

7661855

$1.19
