- SPORTSMAN TOURING 850 SP (R10) - A16SYE85AS
BODY, REAR CAB and FOOTWELL - A16SYE85AS (100050)

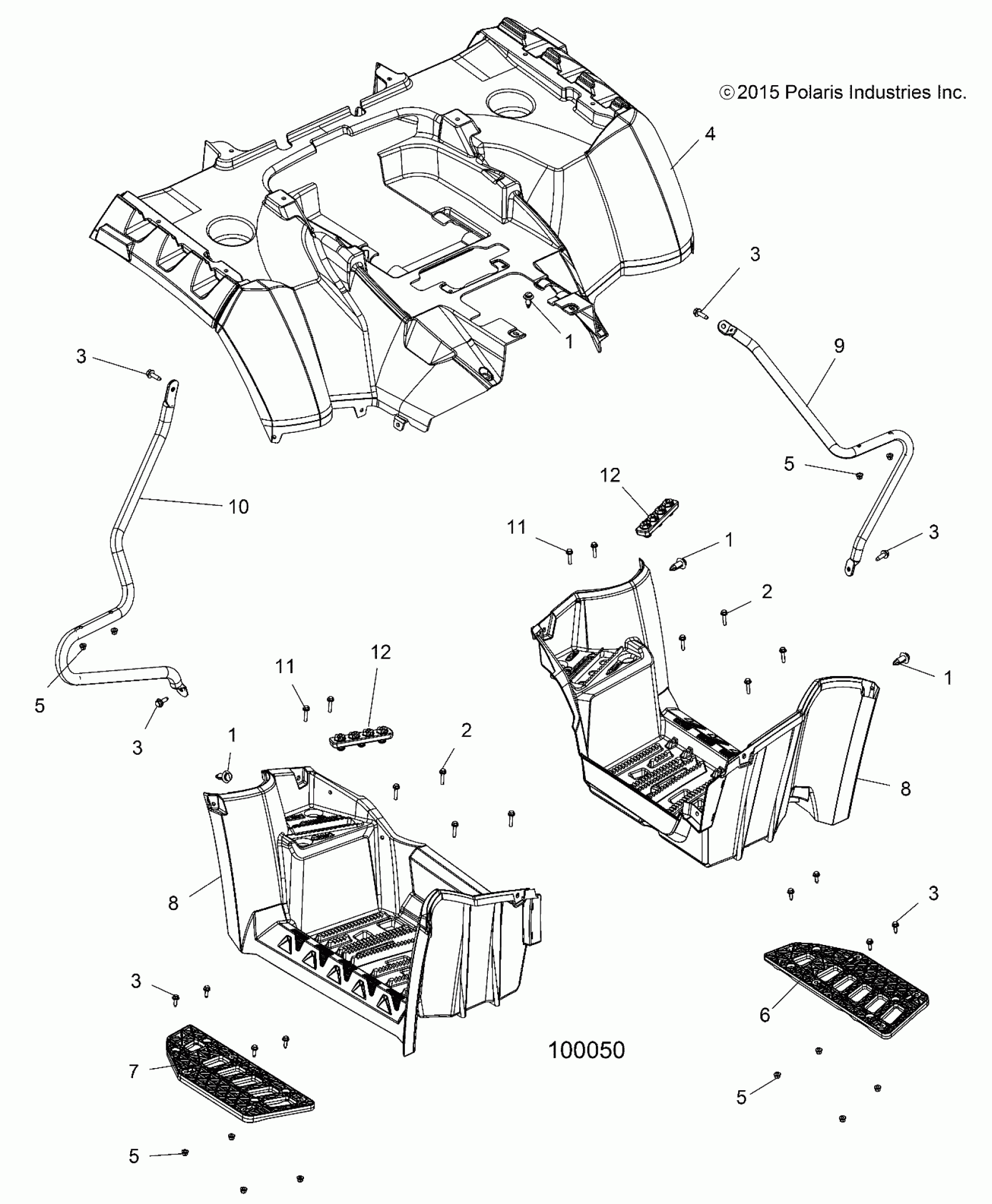

Polaris SPORTSMAN TOURING 850 SP (R10) - A16SYE85AS BODY, REAR CAB and FOOTWELL - A16SYE85AS (100050) Diagram
#
Description
Price
1
Rivet
7661855
$1.49
1
Rivet
7661855
$1.49
1
Rivet
7661855
$1.49
1
Rivet
7661855
$1.49
2
SCREW, FLANGE
7519202
$3.99
2
SCREW, FLANGE
7519202
$3.99
3
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
3
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
3
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
4
CAB, REAR, PAINTED, SUNSET RED
5451775-520
$391.99
5
NUT-M6 FLANGE,NYLOC
7547274
$1.49
5
NUT-M6 FLANGE,NYLOC
7547274
$1.49
5
NUT-M6 FLANGE,NYLOC
7547274
$1.49
5
NUT-M6 FLANGE,NYLOC
7547274
$1.49
6
Support, Footpad, LH
5437600
$39.99
7
SUPPORT, FOOTPAD, RH
5437601
$39.99
8
Footwell, Black, LH
5437888-070
$227.99
8
FOOTWELL, BLACK, RH
5439078-070
$227.99
8
Footwell, Black, LH
5437888-070
$227.99
8
FOOTWELL, BLACK, RH
5439078-070
$227.99
9
TUBE, FOOTWELL SUPPORT, LH, BLACK
5338574-329
$95.99
10
TUBE, FOOTWELL SUPPORT, RH, BLACK
5338575-329
$91.99
11
SCREW
7518579
$3.99
11
SCREW
7518579
$3.99
12
PAD-FOOTWELL,SHORT
5413165
$23.99
12
PAD-FOOTWELL,SHORT
5413165
$23.99
