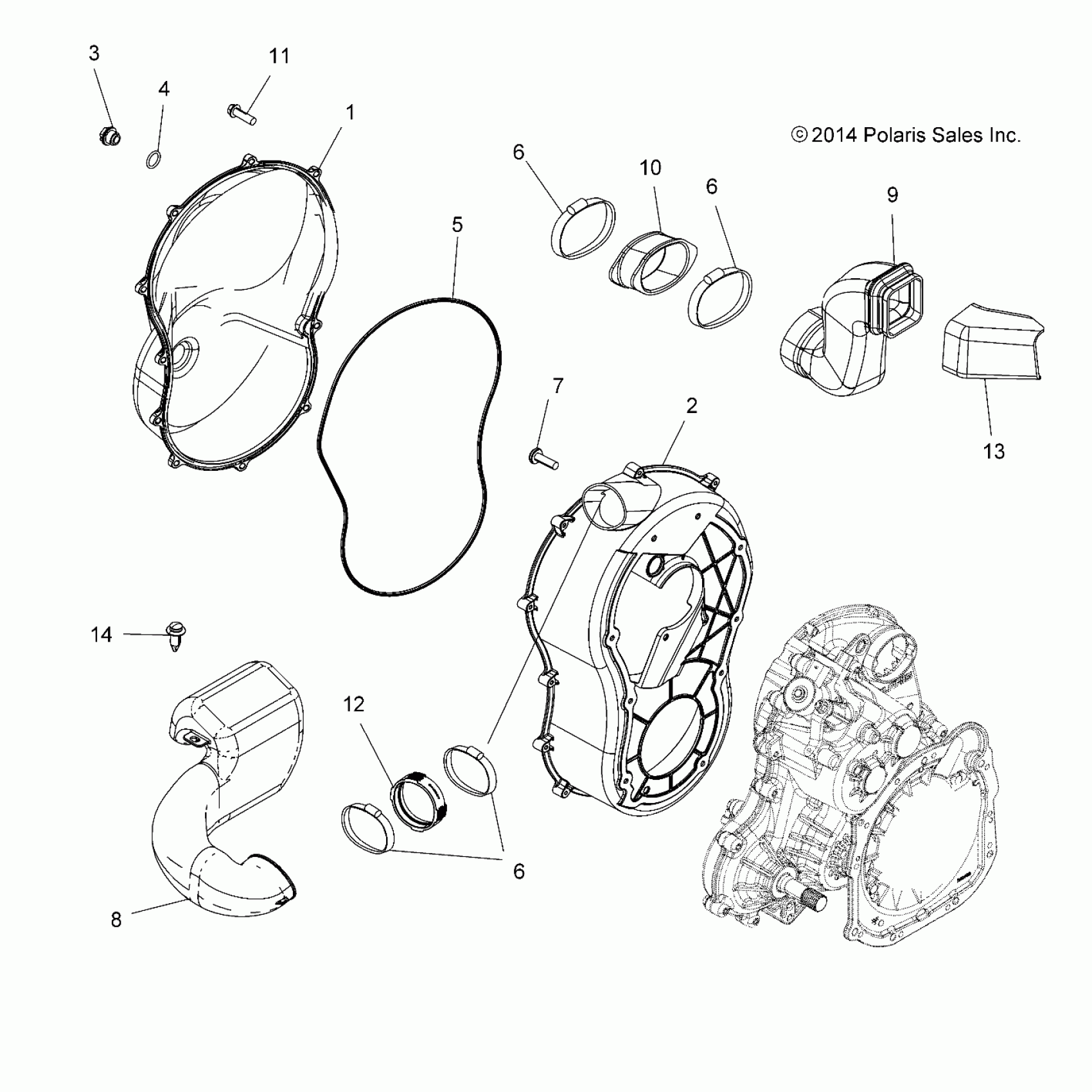

Polaris SPORTSMAN TOURING 850 SP (R10) - A16SYE85AS BODY, CLUTCH COVER - A16SYE85AS (49ATVCLUTCHCVR15850TRG) Diagram

#

Description
Price

1

ASM., COVER, OUTER [INCL. 3,4]

2633919

$139.99

2

COVER, CLUTCH INNER

5438127

$167.99

3

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

4

O RING-.364X.504X.07

5410542

Unavailable

5

SEAL

5521802

$34.74

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

7

SCREW [TO 11/16/15]

7518914

$3.19

7

SCR-M6X1.0X14,PN/TX [FROM 11/17/15]

7520472

$3.19

8

DUCT, OUTLET

5439157

$36.45

9

DUCT, AIR INLET

5436820

$43.99

10

Boot, Clutch, Inlet

5413177

$35.99

11

SCREW

7519849

$3.19

12

BOOT, OUTLET, DUCT

5415255

$6.59

13

BOOT, INLET, DUCT

5413516

$9.59

14

Rivet

7661855

$1.49
