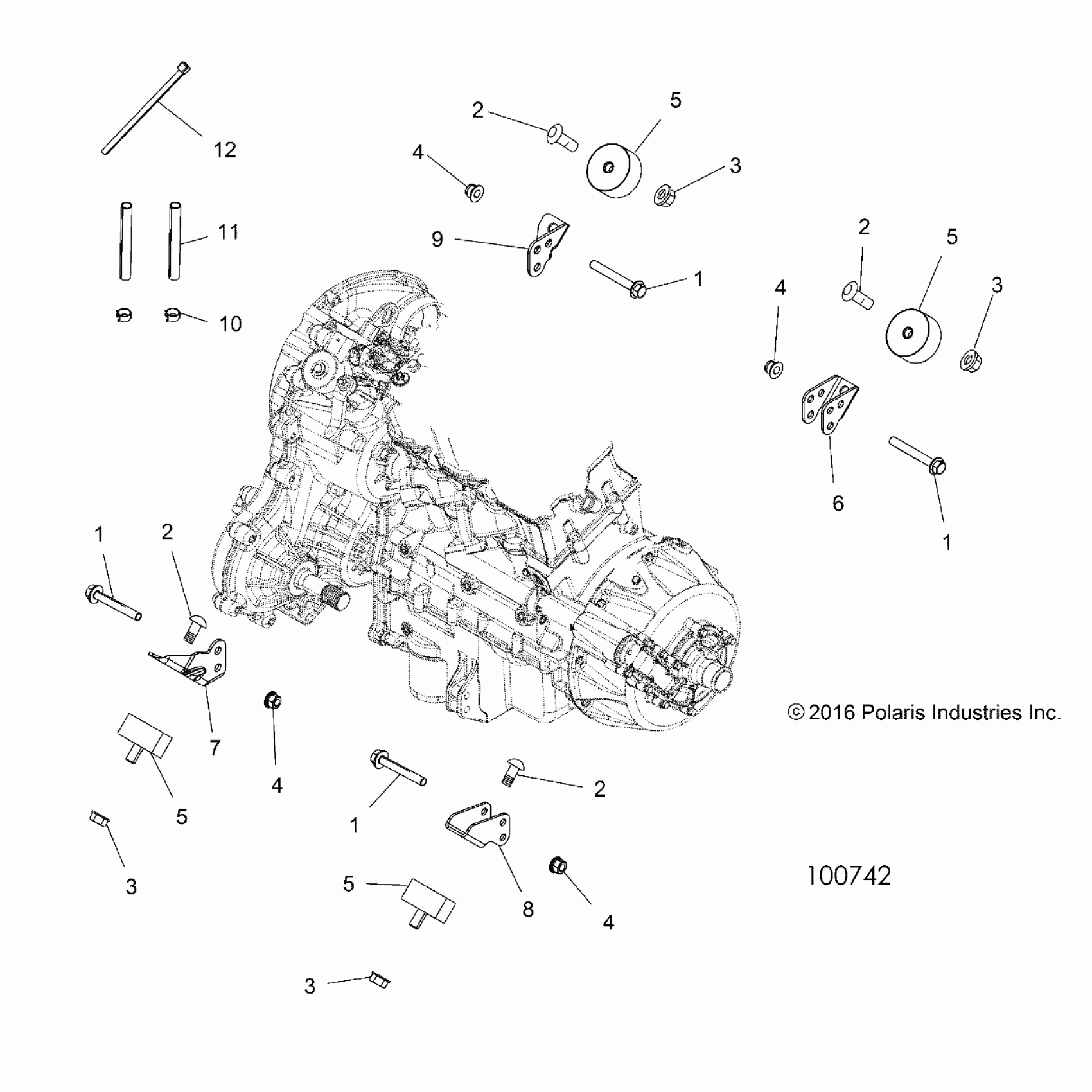

Polaris SPORTSMAN TOURING 850 SP (R06) - A19SYE85BH ENGINE, TRANSMISSION MOUNTING & LONG BLOCK - A19SYE85BH (100742) Diagram

#

Description
Price

-

K-LONG BLOCK, 850

2206555

$5,741.99

1

SCREW, FLANGE

7516732

$1.59

1

SCREW, FLANGE

7516732

$1.59

1

SCREW, FLANGE

7516732

$1.59

1

SCREW, FLANGE

7516732

$1.59

2

SCREW

7519032

$4.79

2

SCREW

7519032

$4.79

2

SCREW

7519032

$4.79

2

SCREW

7519032

$4.79

3

Nut, Flange

7547313

$1.49

3

Nut, Flange

7547313

$1.49

3

Nut, Flange

7547313

$1.49

3

Nut, Flange

7547313

$1.49

4

Nut, Flange

7547317

Unavailable

4

Nut, Flange

7547317

Unavailable

4

Nut, Flange

7547317

Unavailable

4

Nut, Flange

7547317

Unavailable

5

ISOLATOR [TO 12/1/2018]

3022154

$30.88

5

ISOLATOR-M10X1.5,M/F,65 DURO [FROM 12/1/2018]

3023594

$30.88

5

ISOLATOR [TO 12/1/2018]

3022154

$30.88

5

ISOLATOR-M10X1.5,M/F,65 DURO [FROM 12/1/2018]

3023594

$30.88

5

ISOLATOR [TO 12/1/2018]

3022154

$30.88

5

ISOLATOR-M10X1.5,M/F,65 DURO [FROM 12/1/2018]

3023594

$30.88

5

ISOLATOR [TO 12/1/2018]

3022154

$30.88

5

ISOLATOR-M10X1.5,M/F,65 DURO [FROM 12/1/2018]

3023594

$30.88

6

BRACKET, TRANSMISSION MOUNT, LH

5251716

$43.99

7

BRACKET, TRANSMISSION, RH

5252091

$43.99

8

BRACKET, ENGINE, MOUNT, RH

5251717

$47.99

9

BRACKET, TRANSMISSION, LH [TO 1/1/2019]

5253340

$11.19

9

BRKT-TRANS,LH [FROM 1/1/2019]

5267453

$8.79

10

CLAMP-HOSE, 17/32, GREEN [TRANSMISSION VENTING]

7081432

$3.99

11

LINE, FUEL [TRANSMISSION VENTING]

8450040-600

Unavailable

12

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39
