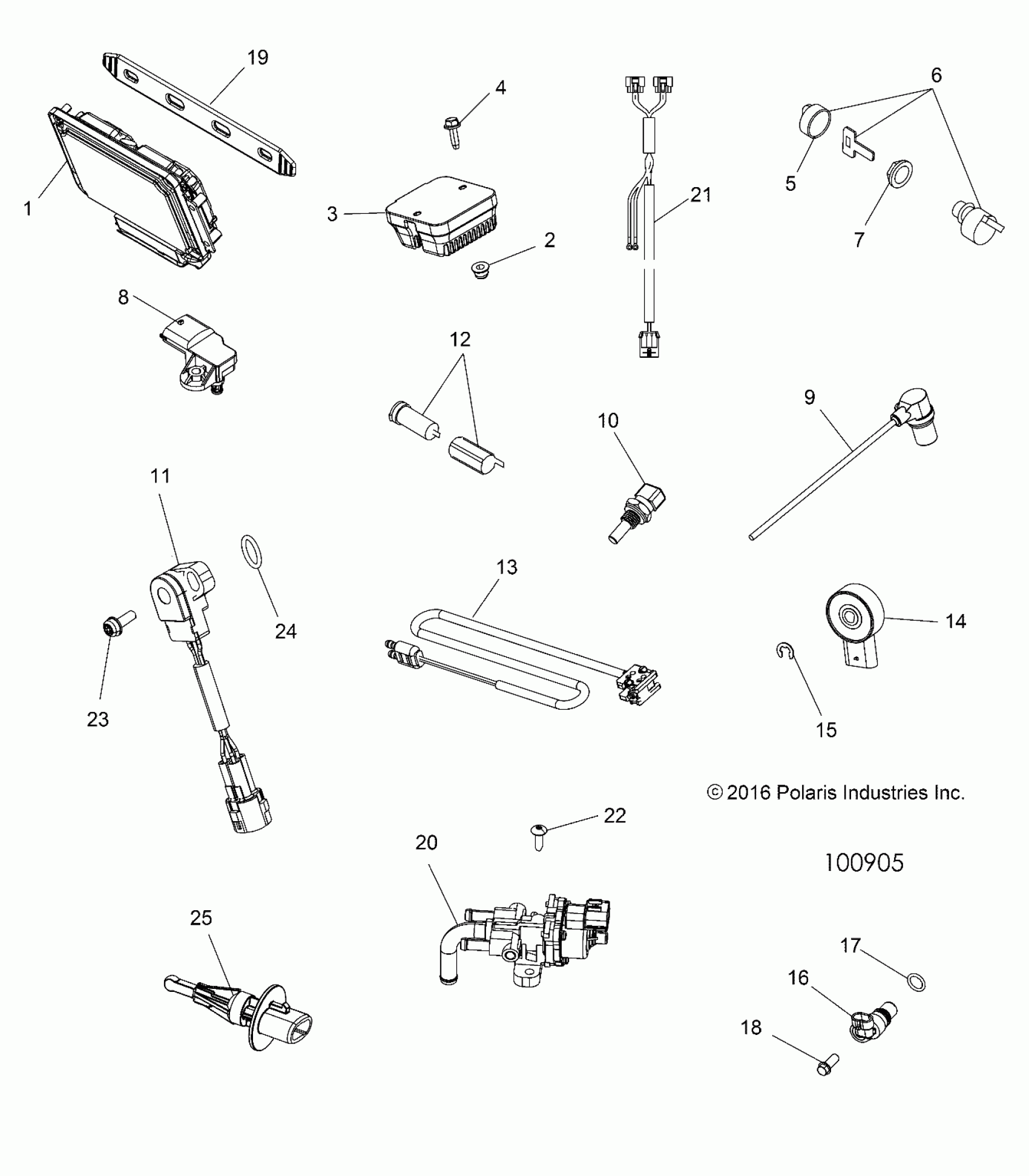

Polaris SPORTSMAN TOURING 850 SP (R06) - A19SYE85BH ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A19SYE85BH (100905) Diagram

#

Description
Price

1

ECU, BASE, M17

4012838

$565.24

2

NUT-M6 FLANGE,NYLOC

7547274

$1.19

3

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$156.74

4

SCREW, FLANGE

7519202

$3.97

5

KEY SWITCH KEY COVER

5433534

$13.75

6

SWITCH, KEY, 3 POSITION [INCL. 5]

4012165

$109.27

7

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

8

SENSOR-TMAP DSS3-TF

2411528

$97.13

8

SCREW [USE W/2411528]

7518576

$3.17

9

SCREW

7518548

$1.59

9

Sensor, Crank Position

2411589

$79.37

10

SENSOR-THERMISTER

4010644

$91.97

11

SENSOR, THROTTLE POSITION

2412634

$259.03

12

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

13

KIT, BRAKE LIGHT SWITCH

2202794

$72.84

14

SWITCH [GEAR POSITION]

3233835

$142.49

15

RING, RETAINING

3233834

$10.32

16

SENSOR-SPEED,TRANS

4013908

$109.27

17

O-RING

3234302

$7.27

18

SCREW

3234329

$9.52

19

STRAP, ECU

5414193

$27.78

20

KIT, HARNESS, IAC

2878507

$179.99

20

VALVE, IAC

4013313

$222.68

21

HARNESS-JUMPER,REGULATOR

2413583

$174.99

22

SCREW

7519045

$3.17

23

SCREW

3131010

$4.76

24

O-RING

3131729

$14.99

25

Sensor, Air Temp

2410687

$153.79
