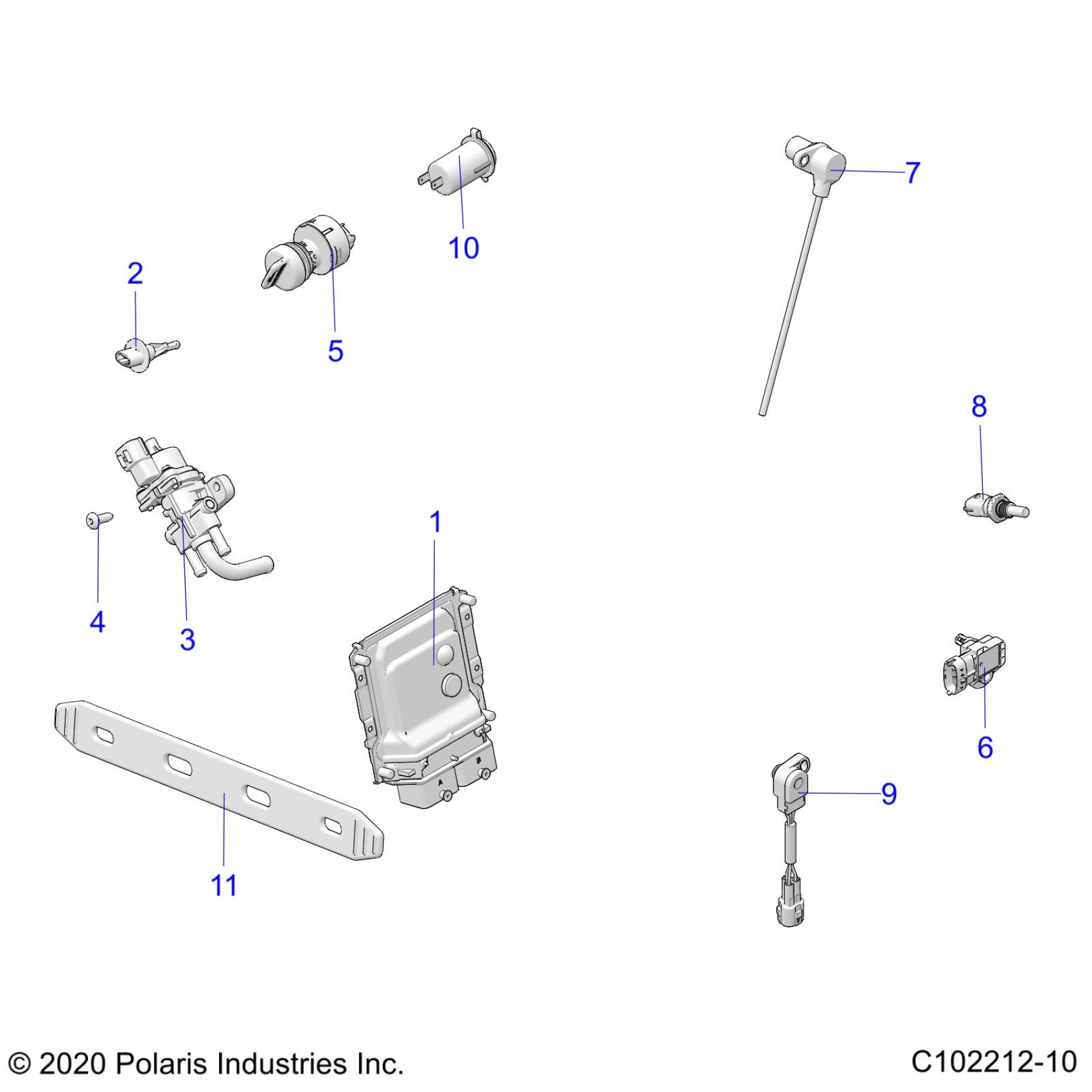

Polaris SPORTSMAN TOURING 850 48" (R03) - A21SYE85AP/CAP ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A21SYE85AP/CAP (C102212-10) Diagram

ECU, BASE, M17

4012838

$565.24

Sensor, Air Temperature

2410687

$153.79

VALVE, IAC

4013313

$222.68

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.17

SWITCH, KEY, 3 POSITION, SEALED

4015033

$62.92

KEY SWITCH KEY COVER

5433534

$13.75

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

SENSOR-TMAP DSS3-TF

2411528

$97.13

SCR-SENSOR TMAP [NOT ILLUSTRATED][USED WITH T-MAP]

3131726

$3.17

Sensor, Crank Position

2411589

$79.37

SCREW-HXFL-M6X1.0X16 8.8 ZY3 [NOT ILLUSTRATED][USED WITH CRANK POSSITION SENSOR]

7518548

$1.59

SENSOR-THERMISTER

4010644

$91.97

SENSOR, THROTTLE POSITION

2412634

$259.03

Screw [MAG Side] [NOT ILLUSTRATED][USED WITH TPS]

3131010

$4.76

O-RING [NOT ILLUSTRATED][USED WITH TPS]

3131729

$14.99

Receptacle, Pod Mount, 12 Volt

4010638

$28.32

STRAP, ECU

5414193

$27.78
