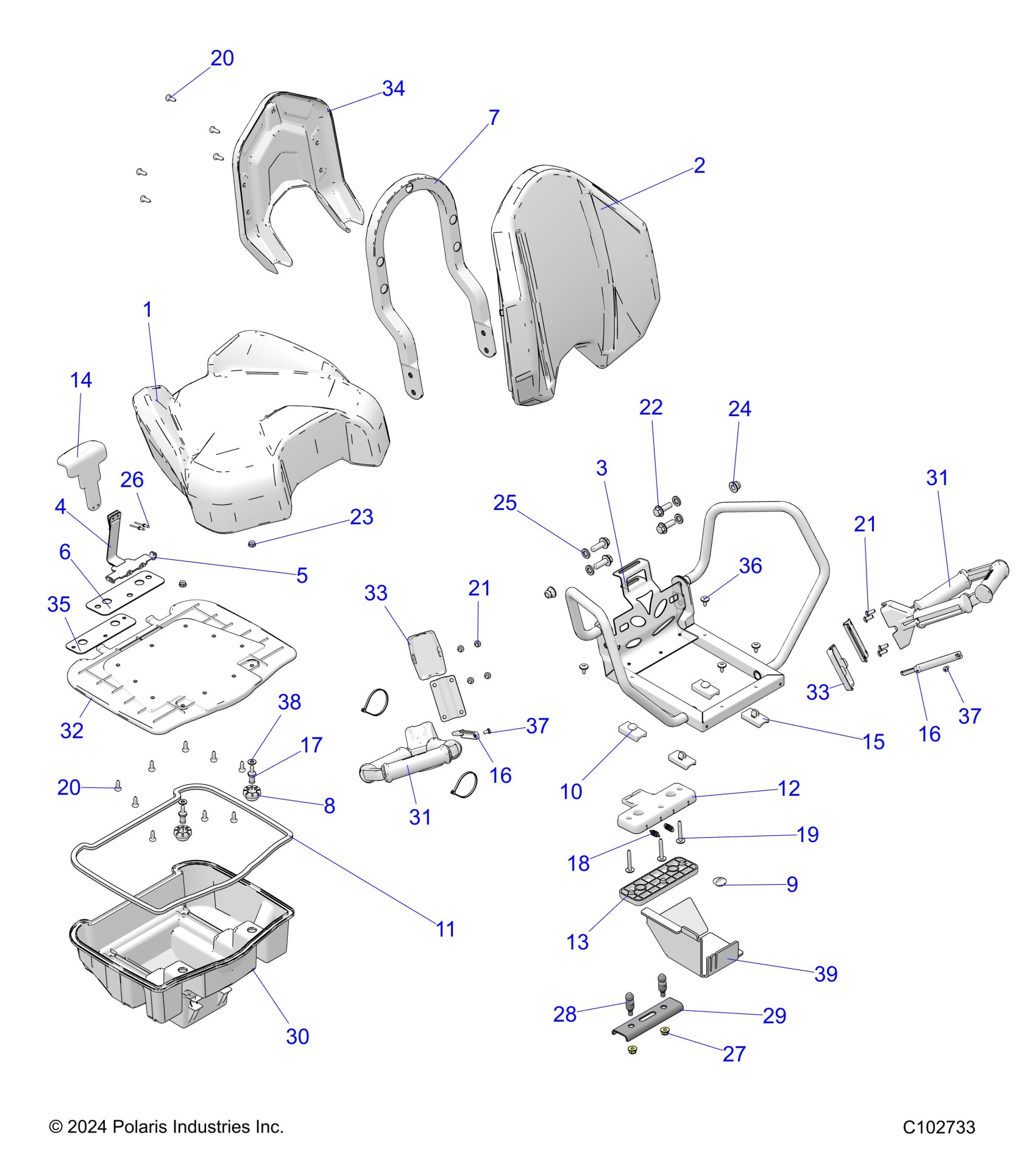

Polaris SPORTSMAN TOURING 850 48" (R02) - A25SYE85AL BODY, SEAT, PASSENGER - A25SYE85AL (C102733) Diagram

#

Description
Price

-

ASM-SEAT,PASSENGER [INCL. ALL]

2693472

$791.99

-

ASM-SEAT,PASSENGER [INCL. ALL EXCEPT 39]

2687926

$769.99

1

ASM-SEAT,BOTTOM,PASSENGER

2636787

$169.99

2

ASM-SEAT,BACKREST,PASSENGER

2636788

$244.99

3

WELD-FRAME,BASE,SEAT

1021269-458

$234.99

4

ASM., STRAP, SEAT LATCH

2686230

$13.59

5

PLATE, LATCH, SEAT

5259991

Unavailable

6

PLATE, LATCH, SEAT, GUIDE

5259990

$7.99

7

TUBE-FRAME,BACK,SEAT,M.BLK

5338614-458

$71.99

8

GROMMET-SEAT LATCH

5418614

$3.19

9

PLUG-COMPARTMENT

5418084

$3.73

10

BUMPER, RUBBER

5415293

$3.19

11

SEAL, STORAGE, PASSENGER

5415486

$63.99

12

SEAT, LATCH, BODY, TOP

5451665

$13.59

13

SEAT, LATCH, BODY, BOTTOM

5451666

$13.59

14

HANDLE, SEAT, LATCH, BASE

5451667

$9.59

15

MOUNT, SEAT, BASE, FRONT

5451669

$14.39

16

INSERT, GRIP, PASSENGER

5451795

$5.59

16

INSERT, GRIP, PASSENGER

5451795

$5.59

17

Pin, Seat Latch

5910306

$10.39

18

SPRING, SEAT LATCH

7082026

$7.19

19

SCR-1/4-20X1.75 TR/TX-M

7518504

$1.59

20

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

20

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

21

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

21

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

22

SCR-HXFL-M10X1.25X30 8.8 ZOD

7519059

$3.19

23

NUT-1/4-20 NYLOC FLANGED-B

7547494

$3.99

24

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

25

WASHER-LOCK, 7/16-B

7552614

$1.59

26

RIVET-POP 1/8(.251-.312)-AL-B

7621224

$8.79

27

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

28

Plunger, Latch

7519251

$19.99

29

PLATE-MOUNT,PIN,M.BLK

5259998-458

$13.59

30

BOX, STORAGE

5451765

$99.99

31

ASM-HANDLE,PASSENGER,OVERMOLD

2638541

$79.99

31

ASM-HANDLE,PASSENGER,OVERMOLD

2638541

$79.99

32

LID, STORAGE

5451784

$35.99

33

HANDLE, COVER

5451794

$5.59

33

HANDLE, COVER

5451794

$5.59

34

COVER, SEAT BACK

5451766

$39.99

35

PLATE, LATCH, SPACER

5260517

$7.19

36

SCR-M6X1X16 TR/TX-M

7518936

$3.99

37

SCR-M5X0.8X10,PHPN ZY,L/W SEMS

7517867

$1.59

37

SCR-M5X0.8X10,PHPN ZY,L/W SEMS

7517867

$1.59

38

WASHER-1/4 SAE FLAT-Y

7558301

$1.49

39

SHIELD-ZC,1000 TRG,RR STRG

5815846

$27.99
