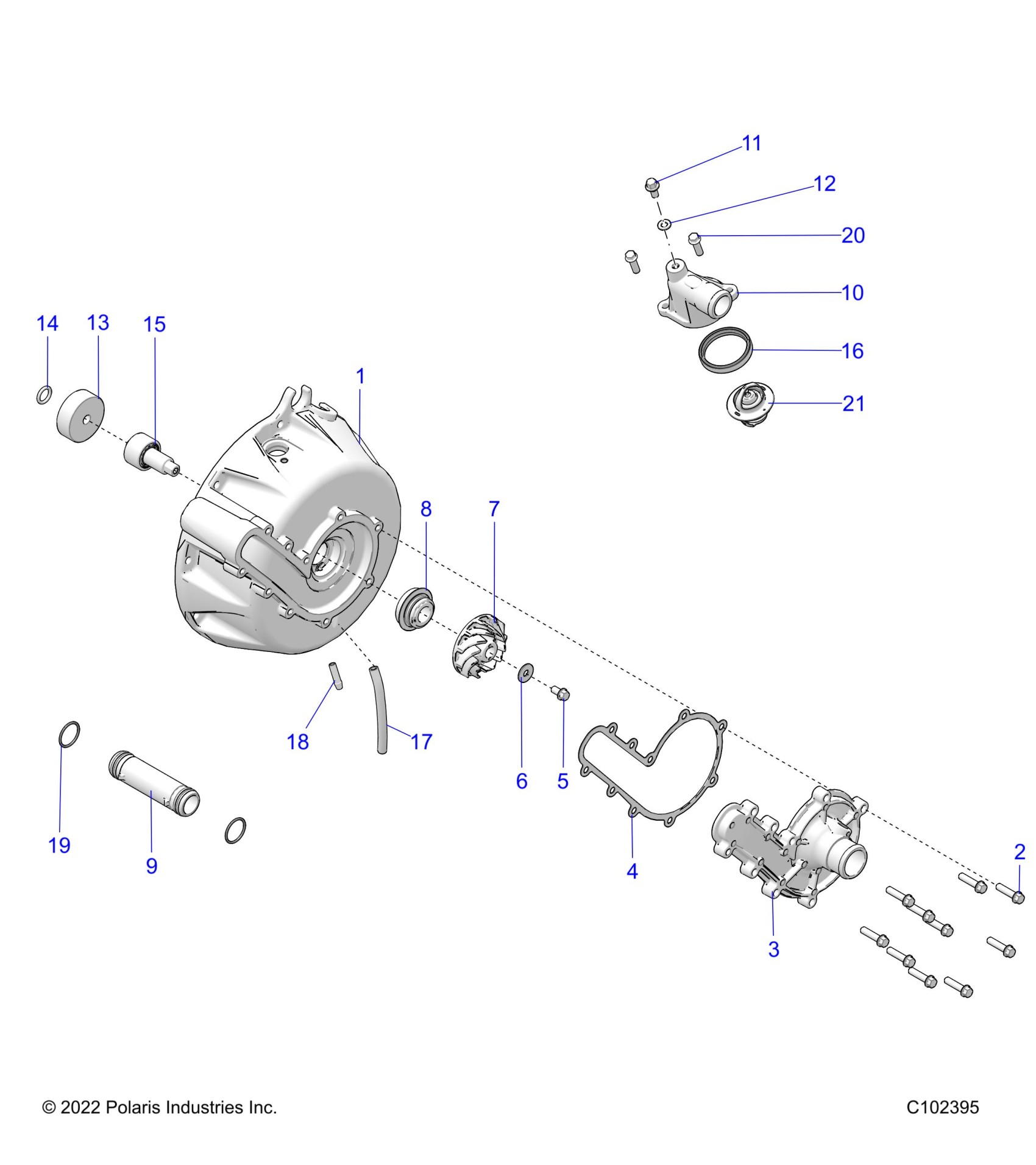

Polaris SPORTSMAN TOURING 850 48" (R01) - A23SYE85AP ENGINE, COOLING SYSTEM and WATER PUMP - A23SYE85AP (C102395) Diagram

ASM-STATOR CVR W/WATERPUMP

1208906

Unavailable

COVER-STATOR W/WATERPMP [COVER ONLY]

5144073

$371.99

SCR-M6X1.0X25-HXHD CLR COAT

7527861

$2.39

KIT-WATERPUMP COVER W/FTNG [INCL. COVER, FITTING, GASKET]

2204955

$55.99

COVER-WATERPMP W/BP

5144074

$63.99

GASKET, COVER

5412954

$31.99

SCR-M6X1.0X12-HXHD

7527860

$2.39

WASHER-FLAT M6

7558730

$3.99

IMPELLER-WATERPMP,CAST,60MM

5639192

$43.99

SEAL

3610136

$71.99

FITTING-COOLANT 3/8 [USED W/ 5453707]

7055563

$8.79

TUBE, WATER TRANSFER [INCL. O-RINGS]

5453707

$79.99

ASM, THERMOSTAT COVER [INCL. COVER, BLEED SCREW, WASHER]

1206006

$39.99

SCR-M6X1.0X13,SL/HX/FL-Z,BLEED [USED W/ 1206006]

7521072

$3.99

WASHER-FLAT,6.15X12X1MM-AL [USED W/ 1206006]

7557179

$3.19

COUPLER, SPLINE INT, WP BEARING

5140079

$31.99

O-RING-12.37X2.62,VITON

5417753

$1.59

BEARING-W/SHAFT,WATERPUMP OPC

3514921

$51.99

SEAL-THERMOSTAT

5413948

$7.99

TUBING-NYLON 5MMX100MM BLK

8360209

$13.59

FITTING-6 MM,BRASS

7055562

$13.59

O-RING,.864X1.00X.07

5412955

$7.19

SCR-M6X1.0X10,SHCS

7527859

$4.79

THERMOSTAT

7052561

$39.99
