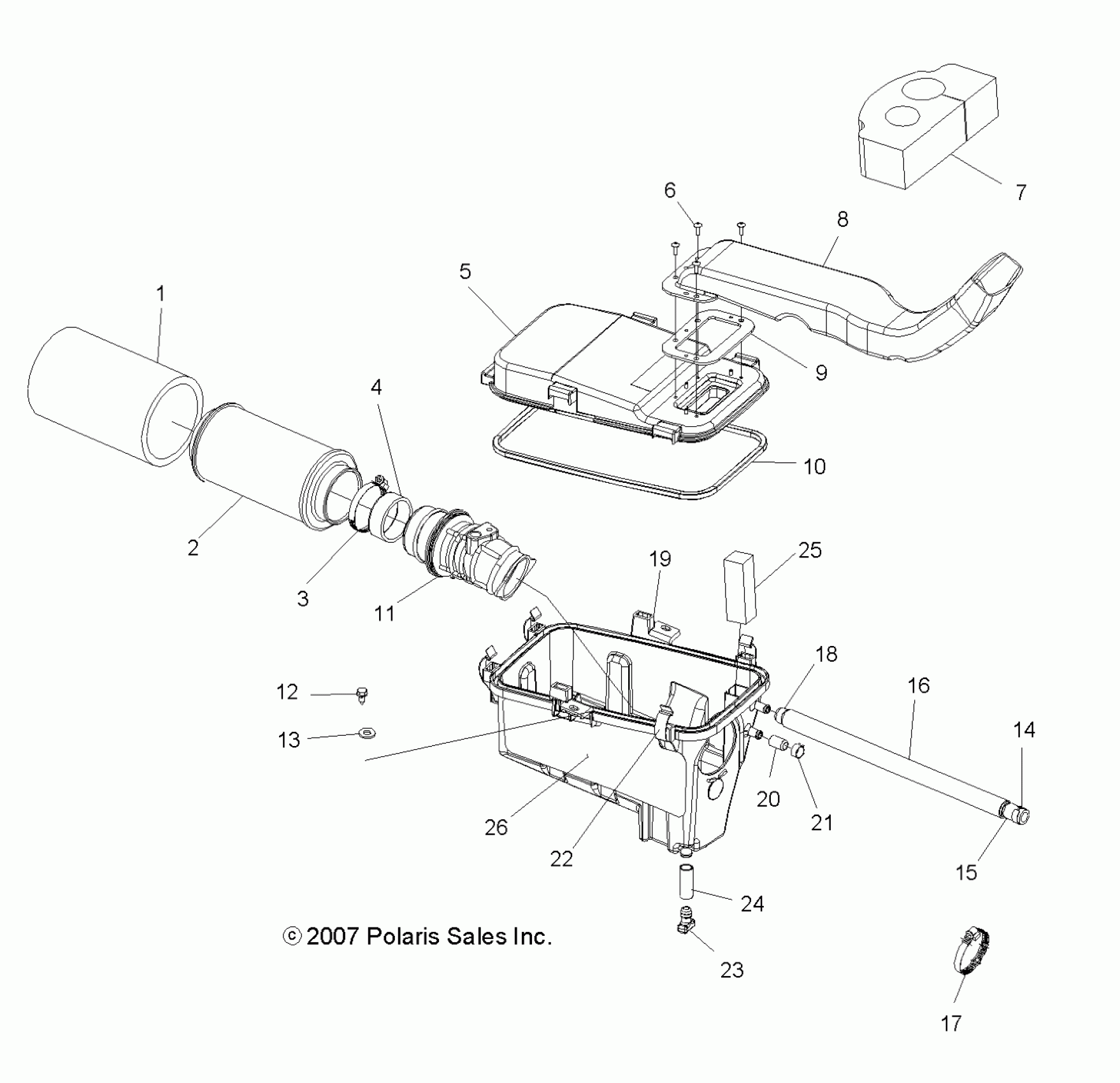

Polaris SPORTSMAN TOURING 800 EFI - A09DN76AB/AL/AY ENGINE, AIR INTAKE SYSTEM - A09DN76AB/AL/AY (49ATVAIRBOX08SPTRG800) Diagram

#

Description
Price

1

Filter, Preclean Sleeve

5811633

$11.99

2

Filter, Air

7080595

Unavailable

3

Clamp, Narrow Band

7080413

$3.19

4

Sleeve, Carburetor, Inner

5433847

$13.59

5

Cover, Air Box

5436278

Unavailable

6

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

7

Seal, Foam, Large, Intake

5812773

$28.32

8

Duct, Air Intake

5436957

Unavailable

9

Gasket, Intake

5412748

Unavailable

10

Seal, Cover

5812829

$27.02

11

Boot, Carb

5412842

$39.99

12

Screw

7515179

$2.39

13

Washer, Flat

7555859

$1.49

14

Clamp, Hose, Spring

7080694

$6.53

15

Hose, Breather

5412615

Unavailable

16

Sheath, Reflective Sleeve

8450108-34

Unavailable

17

Clamp, Narrow Band

7080511

$4.79

18

Clamp, Hose

7080699

$1.59

19

Box, Air

5435981

Unavailable

20

Cap, End

5433396

$4.79

21

HOSE CLAMP, RED

7080003

$1.49

22

CLIP-AIR BOX

5242044

$9.59

23

Plug, Trap

5432377

Unavailable

24

Line, Fuel

8450059-150

Unavailable

25

Filter, Crankcase

5812910

$4.79

26

Foil

5812771

Unavailable
