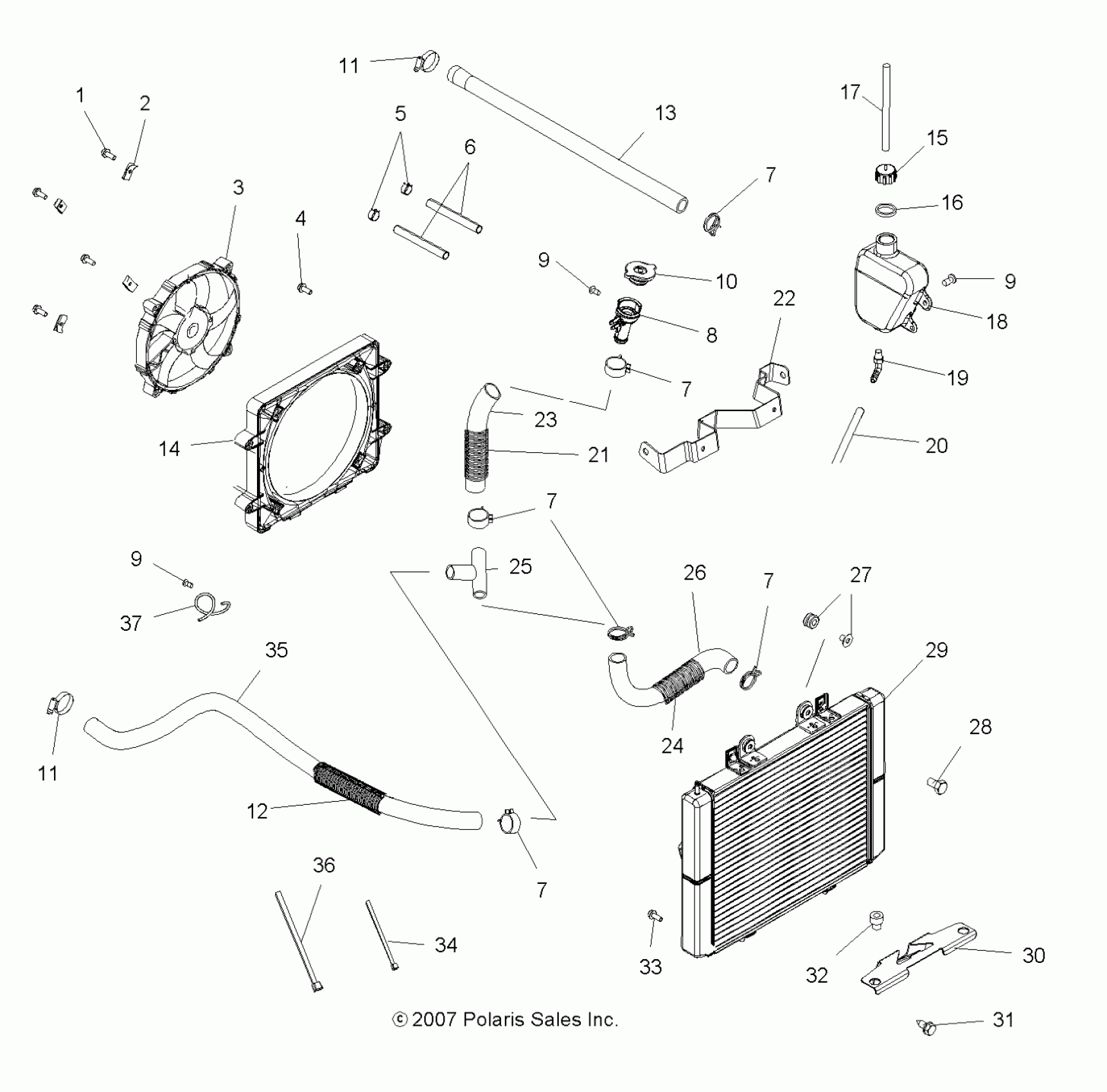

Polaris SPORTSMAN TOURING 800 EFI - A08DN76AF/AG/AH/AL/AJ/AS ENGINE, COOLING SYSTEM - A08DN76AF/AG/AH/AL/AJ/AS (49ATVCOOL08SPTRG800) Diagram

#

Description
Price

1

Bolt

7517975

$5.56

2

U-Clip

7547197

$6.19

3

Fan

2410901

Unavailable

4

Screw w/Washer

7547220

Unavailable

5

HOSE CLAMP, RED

7080003

$1.19

6

HOSE

8450120-600

$72.84

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

8

Filler, Neck

5435196

Unavailable

9

Screw

7512084

$1.19

9

Screw

7512084

$1.19

10

Cap, Pressure

1240044

$48.56

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

12

Guard, Hose

5521742

$9.84

13

Hose, Engine, Upper

5413169

$44.51

14

Shroud, Fan

5434853

Unavailable

15

CAP, OVERFLOW BOTTLE W/FITTING

5437635

$4.84

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

LINE, FUEL

8360009-600

Unavailable

18

TANK-SURGE

5436936

$80.94

19

FITTING, 90 DEGREE

7052065

$7.14

20

Line, Fuel

8450003-1525

$89.99

21

Guard, Hose

5521749

$3.81

22

Bracket, Radiator Mount, Upper

5250769

$6.59

23

Hose, Filler Neck

5412857

Unavailable

24

Guard, Hose

5521753

$5.71

25

T-Connector

7052397

$23.81

26

Hose, Lower Radiator

5412838

$32.70

27

ASM., GROMMET AND INSERT

5411975

$3.17

28

Screw

7515179

$2.38

29

Radiator

1240301

$461.41

30

Bracket, Radiator, Lower, Black

5247047-067

Unavailable

31

SCREW

7517386

$1.19

32

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

33

Valve, Drain

7052296

Unavailable

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

Hose, Engine, Lower

5413168

$56.65

36

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

37

Retainer, Hose

7043335

$2.46
