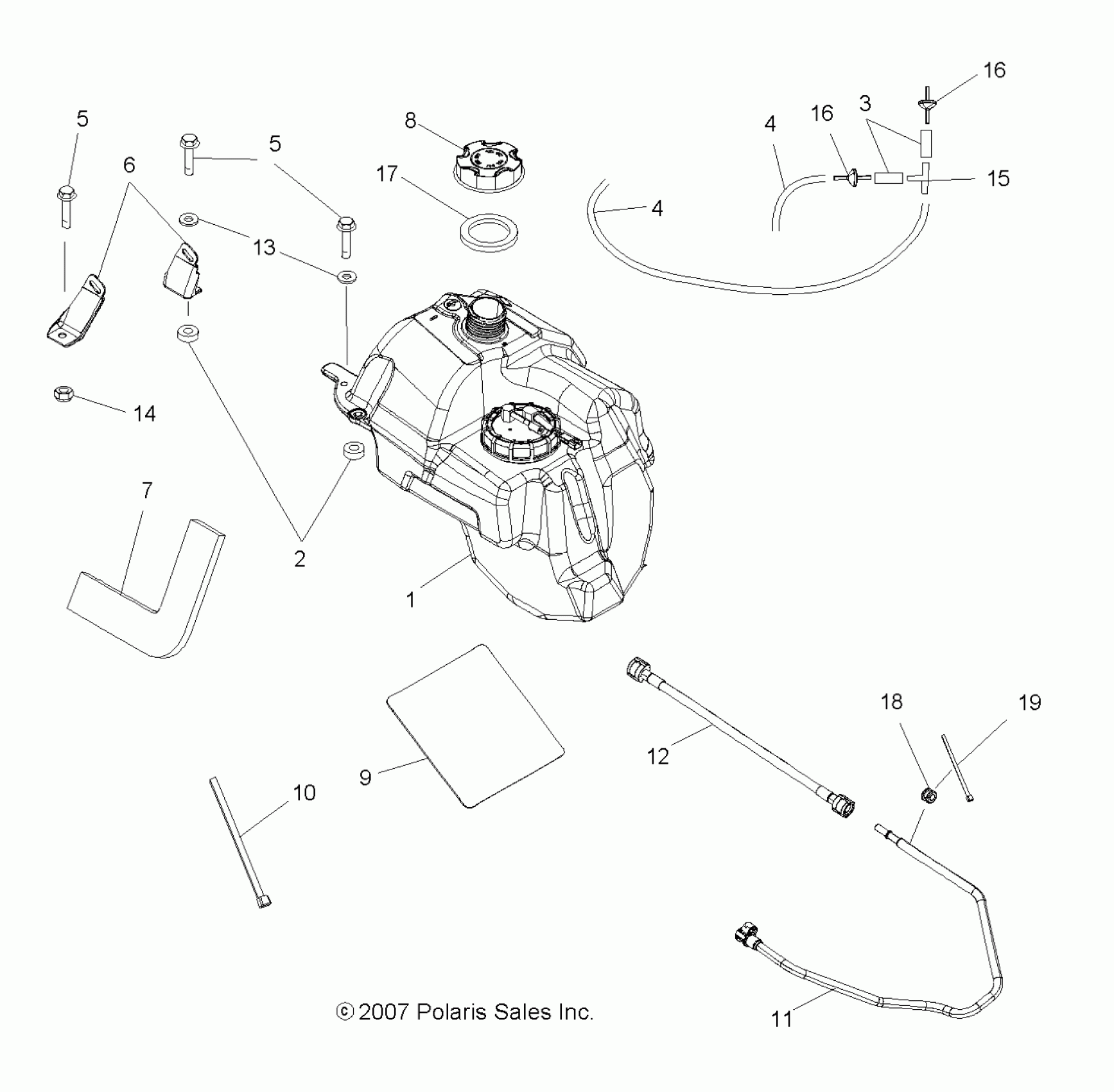

Polaris SPORTSMAN TOURING 800 EFI - A08DN76AF/AG/AH/AL/AJ/AS BODY, FUEL TANK ASM. - A08DN76AG/AH/AJ (49ATVFUEL08SPTRG800AG) Diagram

#

Description
Price

1

Asm., Fuel Tank [Incl. Pump, Foil]

2520875

Unavailable

1

KIT, FUEL PUMP [INCL. FUEL PUMP ASM., GASKET, NUT, CLEANING PAD, INSTRUCTIONS]

2204308

$457.59

2

WASHER, NYLON

7555916

$1.59

3

LINE, OIL

8450061-600

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

SCREW

7517219

$4.79

5

SCREW

7517219

$4.79

6

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

6

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

7

SEAL, FOAM

5812265

$27.99

8

Cap, Gas Tank

5433687

$20.22

9

Foil

5813024

Unavailable

10

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

11

LINE, FUEL, HARD

2520820

$51.99

12

LINE, FUEL, SOFT

2520821

$51.99

13

Washer, Flat

7558301

$1.49

14

Nut, Nylok

7542122

$1.49

15

FITTING, T

7052048

$3.99

16

VALVE, CHECK, VENT

7051011

Unavailable

16

VALVE, CHECK, VENT

7051011

Unavailable

17

GASKET

5812123

$5.65

18

Grommet

5413317

$2.39

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
