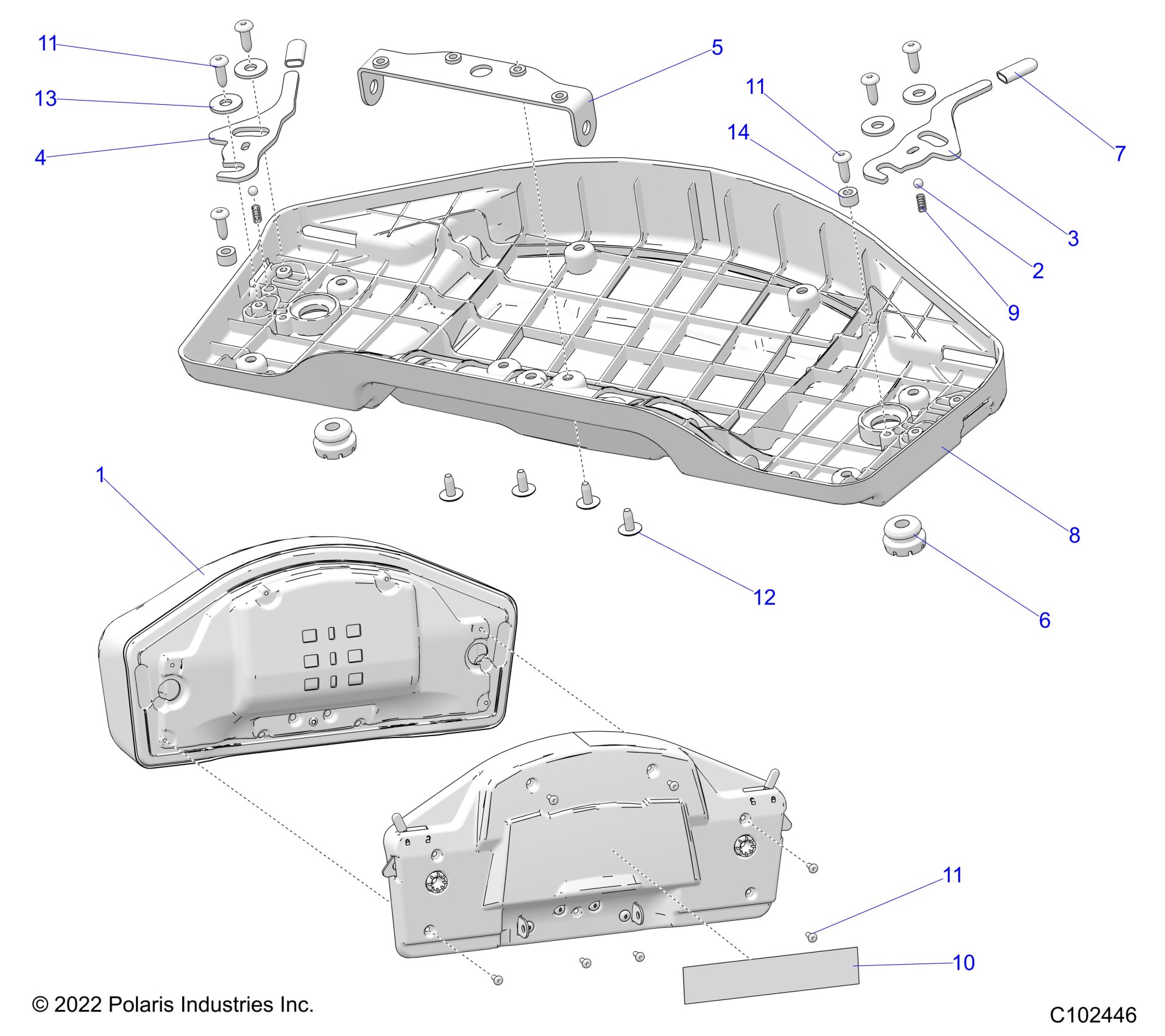

Polaris SPORTSMAN TOURING 570 X2 EPS (R04) - A25SWE57AL BODY, SEAT, PASSENGER, BOTTOM - A25SWE57AL (C102446) Diagram

#

Description
Price

1

ASM., SEAT, BLACK [INCL. 1-14]

2684903-070

$409.49

1

ASM-SEAT BUN,X2 PASS,BLK

2687968-070

$35.19

1

COVERING-SEAT,BLK

2687969-070

$39.99

2

BEARING, BALL, DETENT

3514698

$1.59

3

BRKT-LEVER,LH

5254314

$31.99

4

BRKT-LEVER,RH

5254315

$31.99

5

BRKT-SEAT PIVOT

5254316

$14.39

6

GROMMET-SEAT LATCH

5418614

$3.19

7

CAP - VINYL, 125X375, BLACK

5438230

$5.59

8

COVER, PASSENGER SEAT BOTTOM

5438565

$59.99

9

SPRING-DETENT

7043668

$6.15

10

DECAL-WARN,CONTAINER/PASS,X2

7301054

Unavailable

11

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

11

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

11

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

12

SCR-TXTH-M6X1.0X15 ZPB TAP

7519092

$1.49

13

WASHER-.327X.875X.090,FL-Y

7555960

$3.99

14

SPACER-.26X.50X.31

7556318

$2.39
