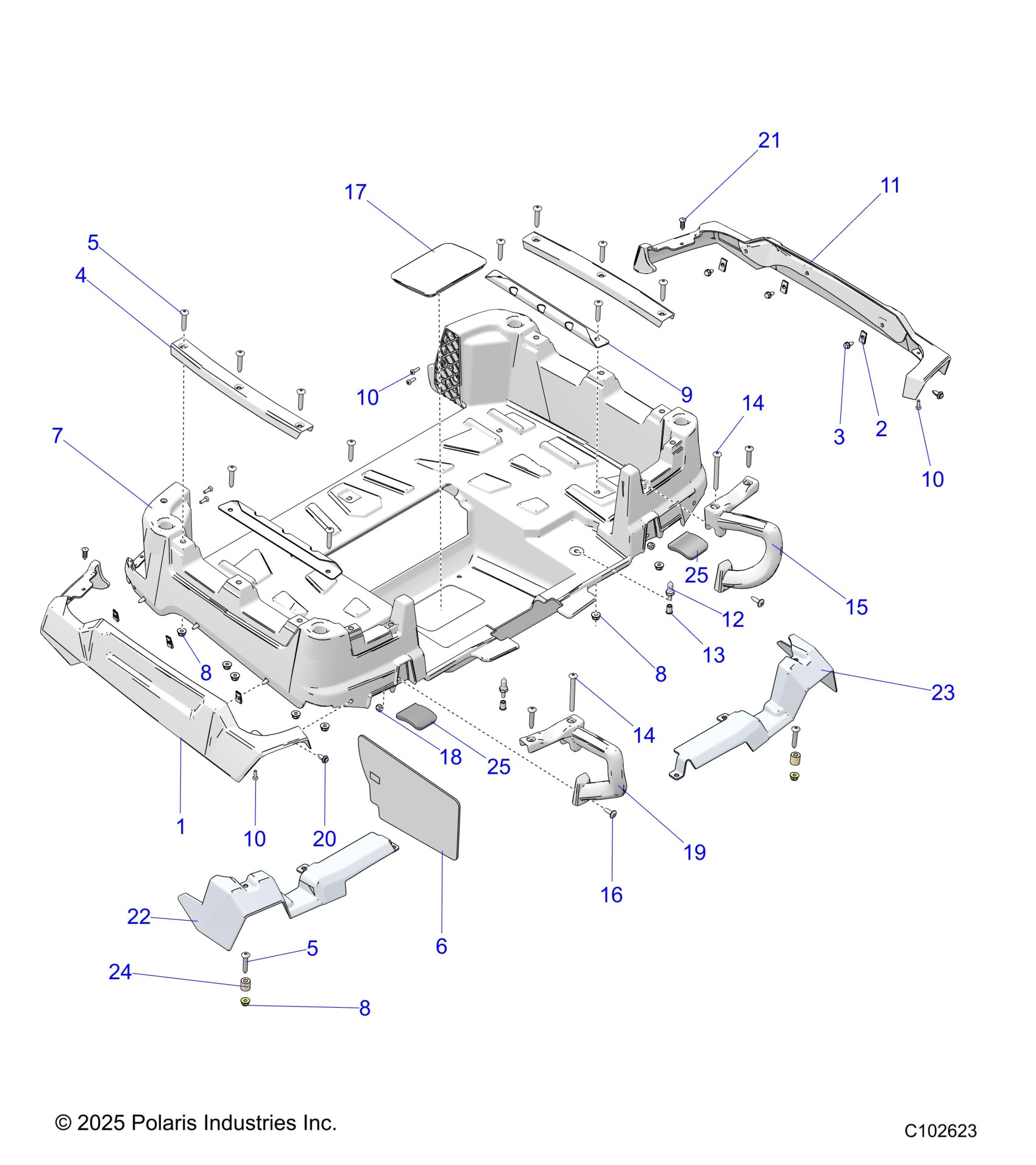

Polaris SPORTSMAN TOURING 570 X2 EPS (R04) - A25SWE57AL BODY, BOX, REAR - A25SWE57AL (C102623) Diagram

#

Description
Price

1

FENDER-REAR BOX,RH,TPO,BLK [TO 6/13/2024]

5465656-070

Unavailable

1

FENDER-REAR BOX,RH,HDPE,BLACK [FRM 6/13/2024]

5450716-070

$67.99

2

NUT-1/4-20 "U" TYPE SPEED

7670057

$1.49

3

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

4

Tie Down, Side, Black

5434803-070

$11.19

5

SCR-5/16-18X1.75 TX-M

7518235

$1.59

5

SCR-5/16-18X1.75 TX-M

7518235

$1.59

6

SHIELD-HEAT,X2 BOX

5814820

$31.99

7

K-ASM-BOX,X2,BLK,DOM,DECALED [INCL. 6 & WARNING DECAL]

2212534

$263.99

8

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

9

CHANNEL, REAR RACK, FRONT, MATTE BLACK

5248471-458

$35.19

10

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

10

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

10

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

11

FENDER-REAR BOX,LH,TPO,BLK [TO 6/13/2024]

5465655-070

Unavailable

11

FENDER-REAR BOX,LH,HDPE,BLACK [FRM 6/13/2024]

5450715-070

$67.99

12

Pin, Seat Latch

5910284

$13.75

13

Insert-1/4-20

7542143

$5.59

14

SCR-5/16-18X3.25 TX-M [TO 8/28/2024]

7518215

$4.79

14

SCR-5/16-18X3.25 TX-M [TO 8/28/2024]

7518215

$4.79

15

HANDLE-PASSENGER, LH,BLK [TO 8/28/2024]

5436491-070

$39.99

16

SCR-1/4-20X1.00 TR/TX-M [TO 8/28/2024]

7517685

$1.59

17

Plug, Drain, Box

5413002

$27.99

18

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

19

HANDLE-PASSENGER, RH,BLK [TO 8/28/2024]

5436492-070

$39.99

20

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

21

CLIP-XMAS TREE, .945 X .228

7670101

$2.39

22

COVER-REAR,BOX,X2,LH,BLK [TO 4/4/2024]

5466019-070

$27.99

23

COVER-REAR,BOX,X2,RH,BLK [TO 4/4/2024]

5466020-070

$27.99

24

SPACER-D18XD8,0XH19,ZNC,BLK [TO 3/14/2024]

5339706

$3.77

25

HANDLE-BOX,LATCH,X2 [TO 8/28/2024]

5418952

$12.79

25

HANDLE-BOX,LATCH,X2 [TO 8/28/2024]

5418952

$12.79
