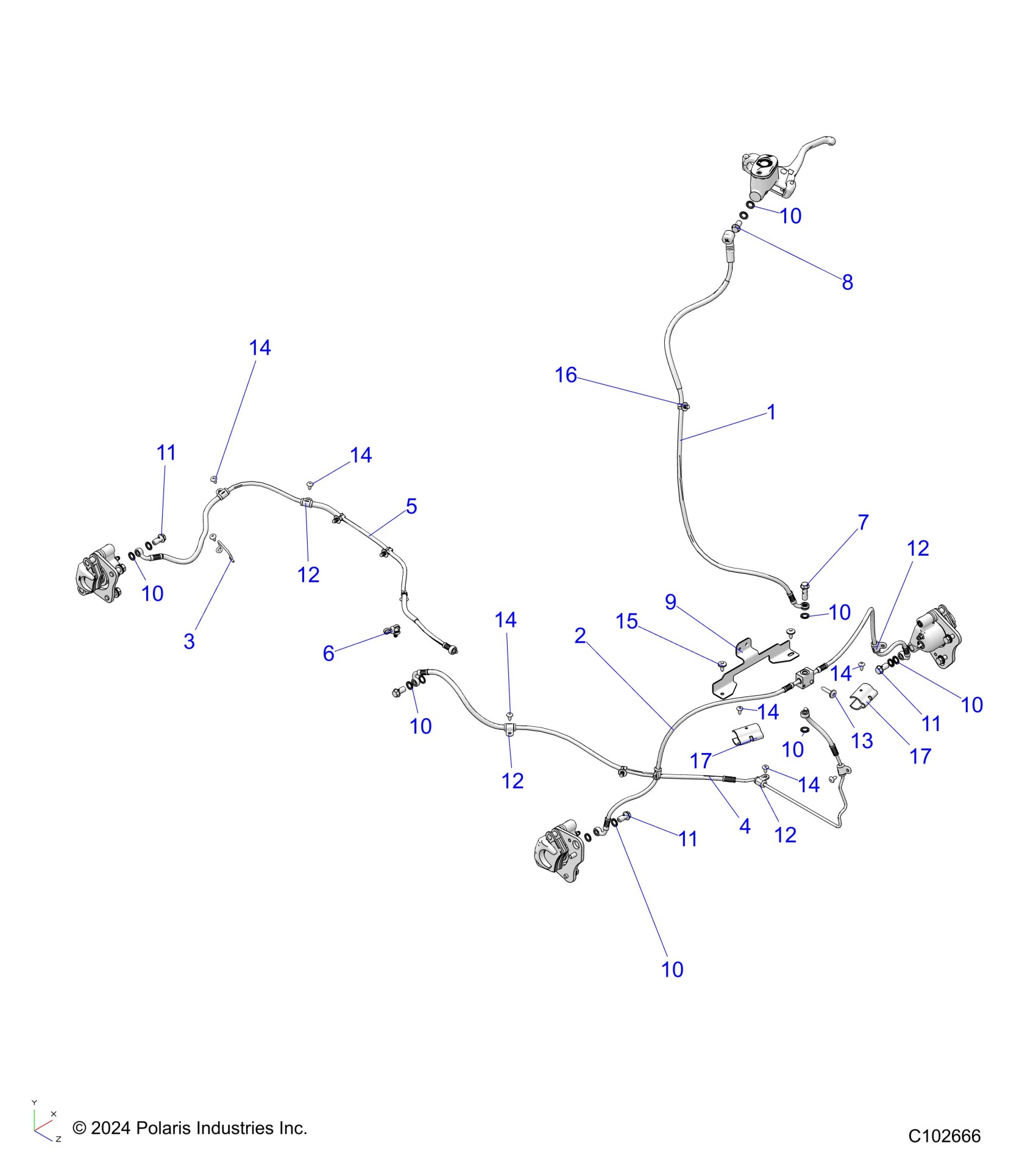

Polaris SPORTSMAN TOURING 570 ULT (R03) - A25SJR57AM BRAKES, BRAKE LINES - A25SJR57AM (C102666) Diagram

#

Description
Price

1

LINE-BRK,MCT

1914077

$35.99

2

LINE-BRK,FRONT SP

1914079

$115.99

3

WIREFORM-GUIDE,ROUTING,0.125

5345903

$2.39

4

LINE-BRK,MCT

1914078

$59.99

5

LINE-BRK,REAR,SINGLE-CALPR

1914081

$83.99

6

CLIP-MOD OMEGA,1X12MM OD HOSE

7082593

$3.99

7

BOLT-DOUBLE BANJO,M10X1.25

1911194

$23.99

8

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

9

BRKT-JUNCTION-BLOCK,BLK

5272745-329

$14.39

10

SEAL-STAT-0-3/8, 70EP

5413212

$4.79

10

SEAL-STAT-0-3/8, 70EP

5413212

$4.79

10

SEAL-STAT-0-3/8, 70EP

5413212

$4.79

10

SEAL-STAT-0-3/8, 70EP

5413212

$4.79

10

SEAL-STAT-0-3/8, 70EP

5413212

$4.79

10

SEAL-STAT-0-3/8, 70EP

5413212

$4.79

10

SEAL-STAT-0-3/8, 70EP

5413212

$4.79

11

BOLT-BANJO,10MMX1.00-6G

1910499

$5.59

11

BOLT-BANJO,10MMX1.00-6G

1910499

$5.59

11

BOLT-BANJO,10MMX1.00-6G

1910499

$5.59

12

CLAMP-CABLE

-------

Unavailable

12

CLAMP-CABLE

-------

Unavailable

12

CLAMP-CABLE

-------

Unavailable

12

CLAMP-CABLE

-------

Unavailable

13

SCR-TXTH-M6X1.0X30 RIE

7520411

$4.66

14

SCR-#12-24,X1/2",TXTRSHDTAPR-Y

7517560

$4.79

14

SCR-#12-24,X1/2",TXTRSHDTAPR-Y

7517560

$4.79

14

SCR-#12-24,X1/2",TXTRSHDTAPR-Y

7517560

$4.79

14

SCR-#12-24,X1/2",TXTRSHDTAPR-Y

7517560

$4.79

14

SCR-#12-24,X1/2",TXTRSHDTAPR-Y

7517560

$4.79

14

SCR-#12-24,X1/2",TXTRSHDTAPR-Y

7517560

$4.79

15

SCR-M6X1X16 TR/TX-M

7518936

$3.99

16

CLIP-FIR TREE,HEAT-STAB

7662429

$5.59

17

RETAINER, BRAKE LINE, 1"

5439192

$1.59

17

RETAINER, BRAKE LINE, 1"

5439192

$1.59
