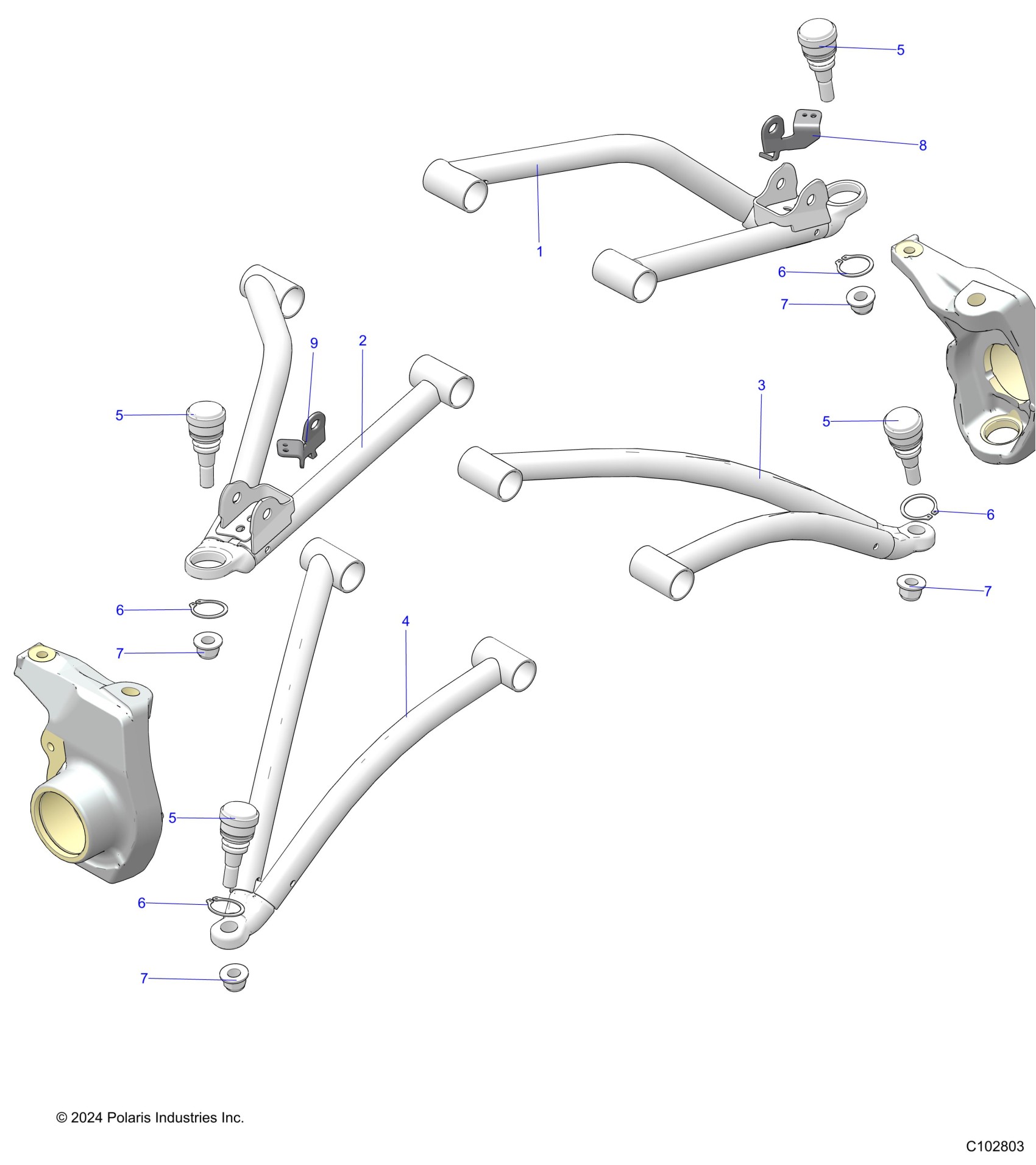

Polaris SPORTSMAN TOURING 570 ULT (R01) - A26SJR57AG SUSPENSION, A-ARMS - A26SJR57AG (C102803) Diagram

#

Description
Price

1

WELD-UCA,FRONT,LH,M.BLK

1023354-458

$83.99

2

WELD-UCA,FRONT,RH,M.BLK

1023355-458

$83.99

3

WELD-LCA,FRONT,LH,M.BLK

1023352-458

$95.99

4

WELD-LCA,FRONT,RH,M.BLK

1023353-458

$95.99

5

BALL-JOINT,M12X1.50,TAPERED

7082538

$39.99

5

BALL-JOINT,M12X1.50,TAPERED

7082538

$39.99

5

BALL-JOINT,M12X1.50,TAPERED

7082538

$39.99

5

BALL-JOINT,M12X1.50,TAPERED

7082538

$39.99

6

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

6

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

6

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

6

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

7

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

7

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

7

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

7

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

8

BRKT-BRAKE LINE MOUNT,LH,BLK

5273274-329

$3.99

9

BRKT-BRAKE LINE MOUNT,RH,BLK

5273275-329

$3.99
