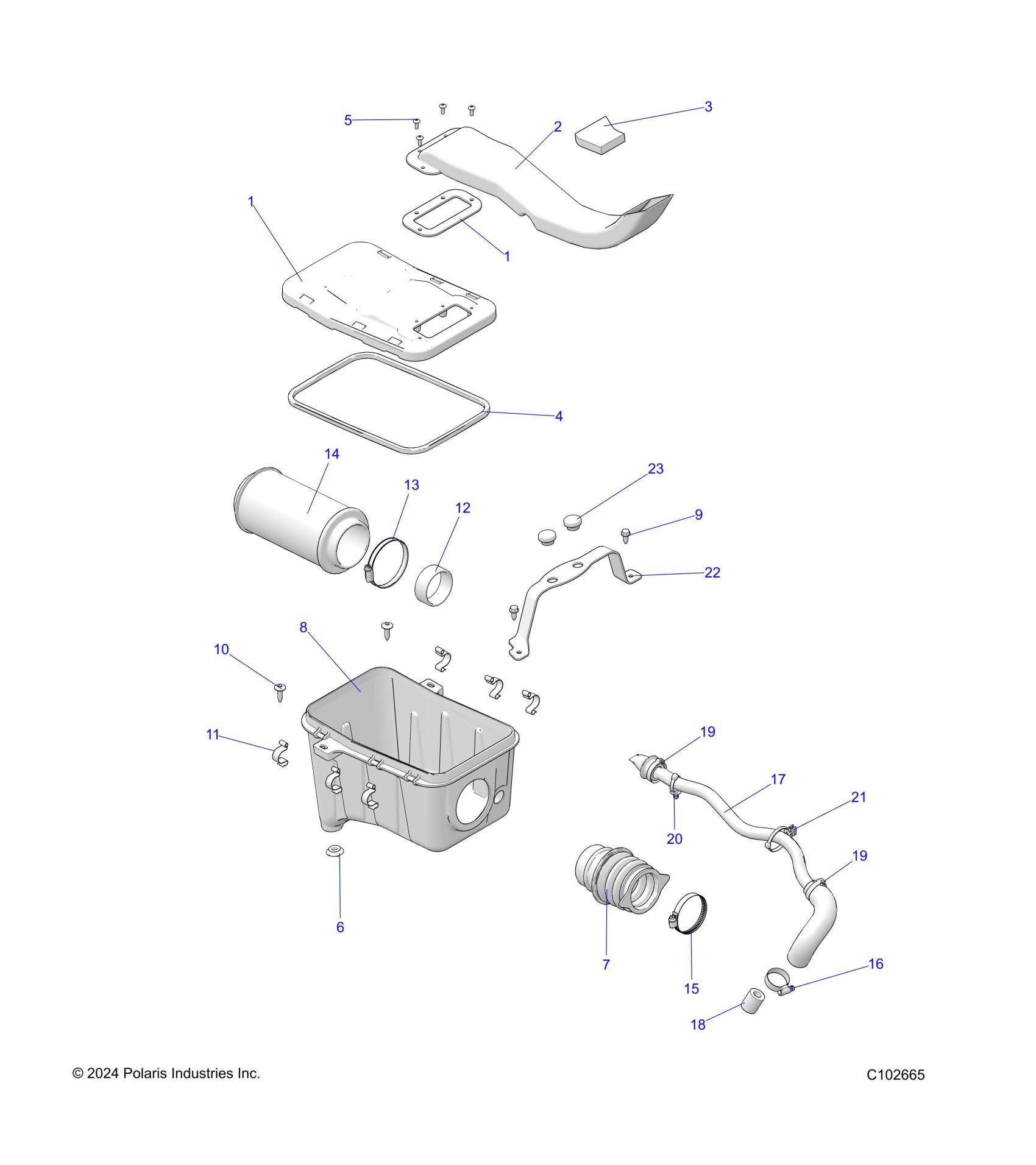

Polaris SPORTSMAN TOURING 570 ULT (R01) - A26SJR57AG ENGINE, AIR INTAKE SYSTEM - A26SJR57AG (C102665) Diagram

#

Description
Price

-

ASM-COVER/DUCT,TOUR [INCL 1-5]

1244766

$107.99

1

COVER-AIR BOX

5459622

$39.99

1

Gasket, Intake

5411422

$6.63

1

COVER-AIR BOX

5459622

$39.99

1

Gasket, Intake

5411422

$6.63

2

DUCT-AIR INLET,TOUR

5450580

$30.39

3

FOAM,INTAKE,STICK ON

5815089

$6.39

4

SEAL, AIRBOX COVER

5813949

$27.99

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

6

PLUG-COMPARTMENT

5418084

$3.73

7

BOOT, ENGINE, INTAKE

5415034

$83.99

8

BOX, AIR INTAKE

5450387

$127.99

9

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

10

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

11

CLIP-AIR BOX

5242044

$9.59

12

Sleeve, Carburetor, Inner

5433847

$13.59

13

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

14

FILTER-AIR INTAKE,HD

7083107

$27.99

14

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

15

CLAMP, HOSE, 2.75" SS

7080446

$11.19

16

CLAMP-HOSE,13/16"-1 1/2"

7081174

$7.19

17

ASM-CRANK BREATHER,ATV

2523082

$59.99

18

BUSHING-BREATHER HOSE

5418611

$7.19

19

CLAMP-HOSE,OETIKER,25.4-28.6

-------

Unavailable

19

CLAMP-HOSE,OETIKER,25.4-28.6

-------

Unavailable

20

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

21

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

22

BRKT-SUPPORT,INTAKE DUCT,BLK

5274388-329

$23.99

23

BUMPER-RUBBER

5412067

$3.99
