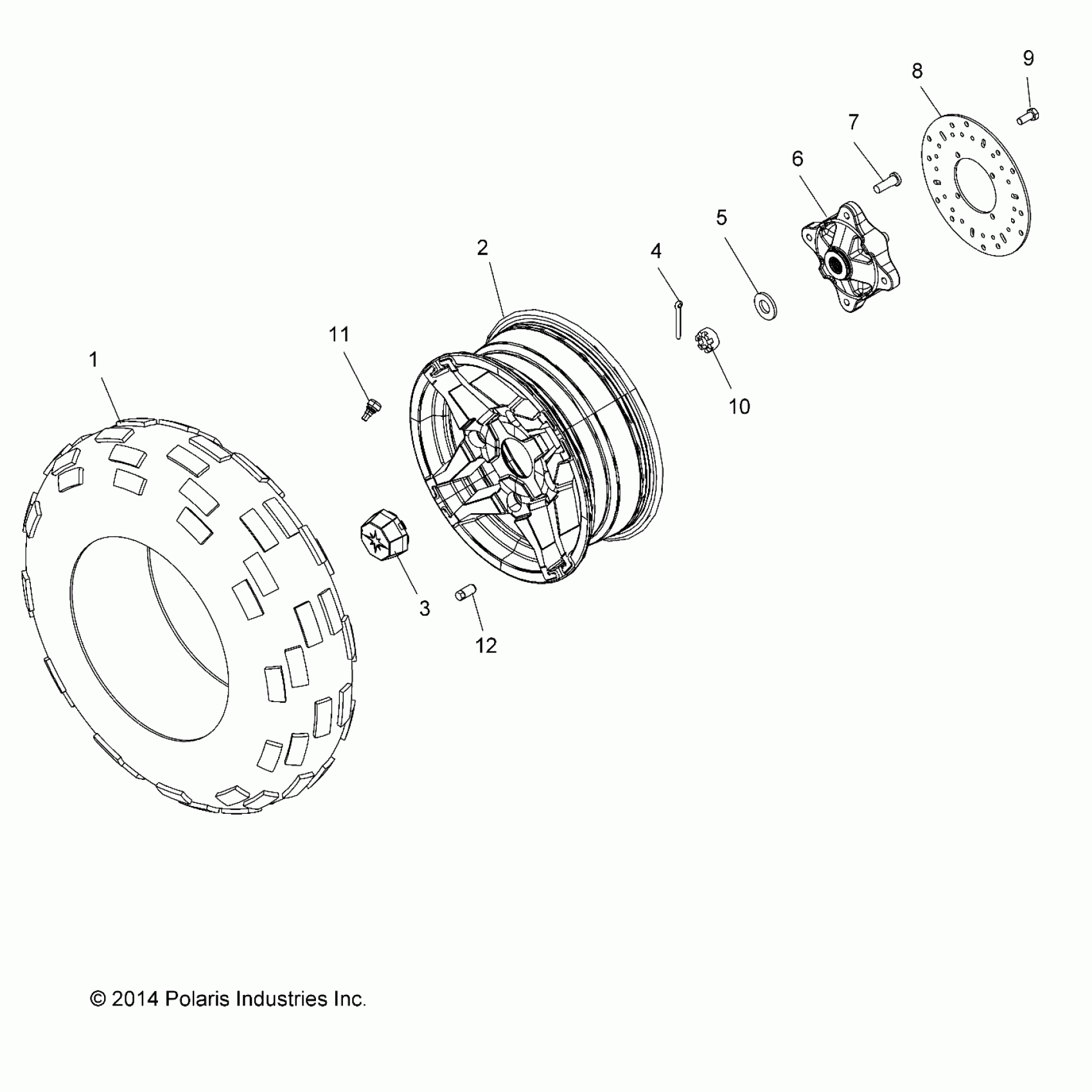

Polaris SPORTSMAN TOURING 570 SP (R09) - A16SJE57AB WHEELS, FRONT TIRE and BRAKE DISC - A16SJE57AB (49ATVWHEELFRT15570SP) Diagram

#

Description
Price

1

TIRE-26X8-14,CU05S

5415600

$145.19

2

RIM, FRONT, CAST, 14X5.5, BLACK

1522277-067

$182.39

3

COVER, HUB, BLACK

5451374-067

$27.99

4

PIN, COTTER

7661404

$4.79

5

WASHER

7556004

$7.19

6

HUB, WHEEL

5134310

Unavailable

7

STUD

7518378

$1.59

8

DISC-BRAKE,8.95 OD,.158

5244314

$75.99

9

BOLT

7512325

$2.39

10

NUT, SLOTTED

7542810

$3.19

11

VALVE-RIM

1525017

$5.59

12

NUT, WHEEL

7547309

$3.59
