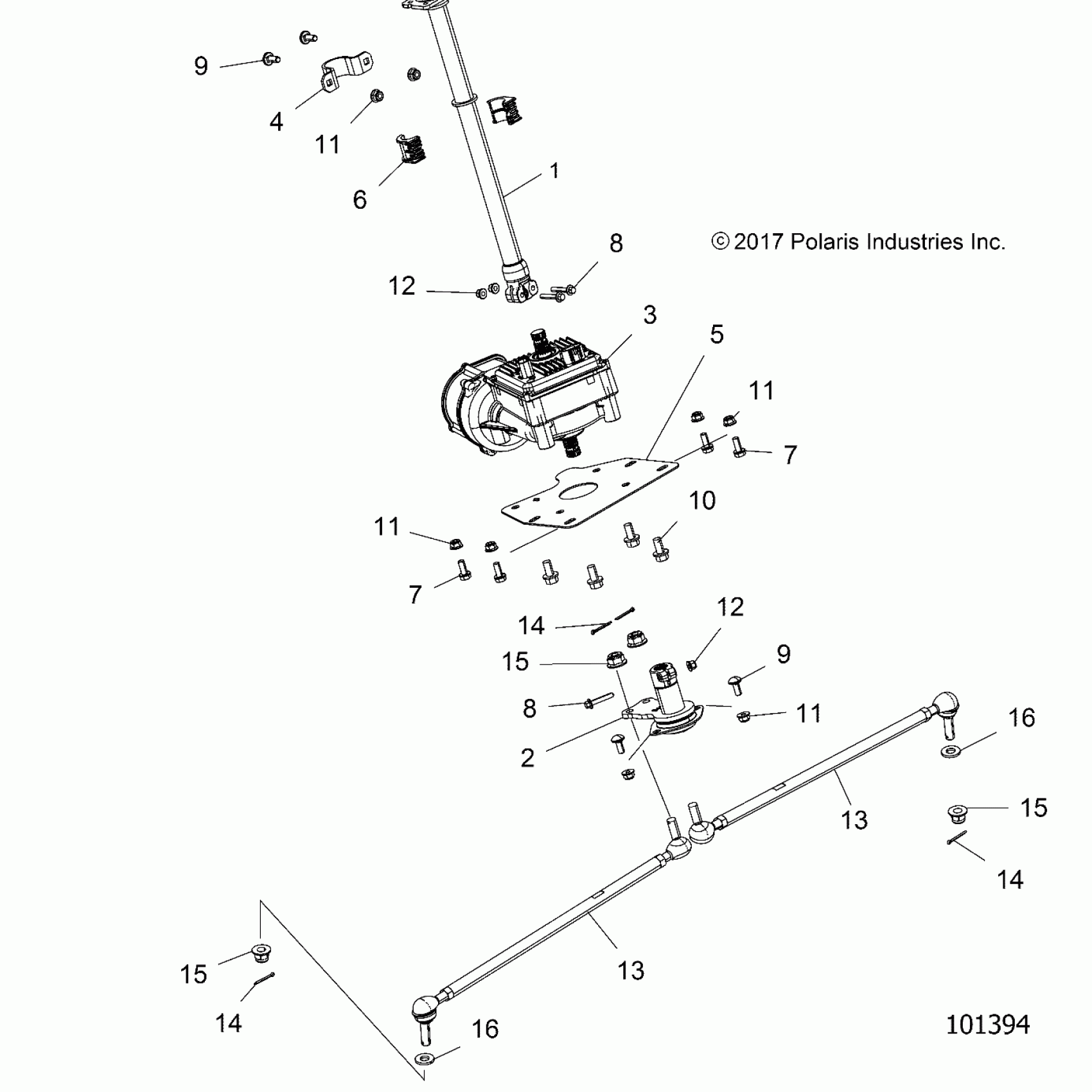

Polaris SPORTSMAN TOURING 570 SP (R09) - A16SJE57AB STEERING, EPS - A16SJE57AB (101394) Diagram

#

Description
Price

1

POST, STEERING, UPPER, BLACK

1824202-329

$157.84

2

ASM., STEERING POST, LOWER

1824203

$140.38

3

ASM., POWER STEERING

2413344

$2,399.99

4

BRACKET, UPPER STEERING BUSHING

5257028

$32.37

5

PLATE, MOUNT, POWER STEERING

5259190-329

Unavailable

6

BUSHING, UPPER STEERING

5438903

$6.35

7

SCREW

7515398

$2.38

7

SCREW

7515398

$2.38

8

SCREW

7516827

$6.35

8

SCREW

7516827

$6.35

9

Bolt, Carriage

7517428

$2.38

9

Bolt, Carriage

7517428

$2.38

10

BOLT

7518558

$3.97

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

12

NUT-M6 FLANGE,NYLOC

7547274

$1.19

12

NUT-M6 FLANGE,NYLOC

7547274

$1.19

13

ASM., TIE ROD

1824206

$105.22

13

ASM., TIE ROD

1824206

$105.22

14

Pin, Cotter

7661203

$1.19

14

Pin, Cotter

7661203

$1.19

14

Pin, Cotter

7661203

$1.19

15

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

16

WASHER, FLAT

7556153

$1.98

16

WASHER, FLAT

7556153

$1.98
