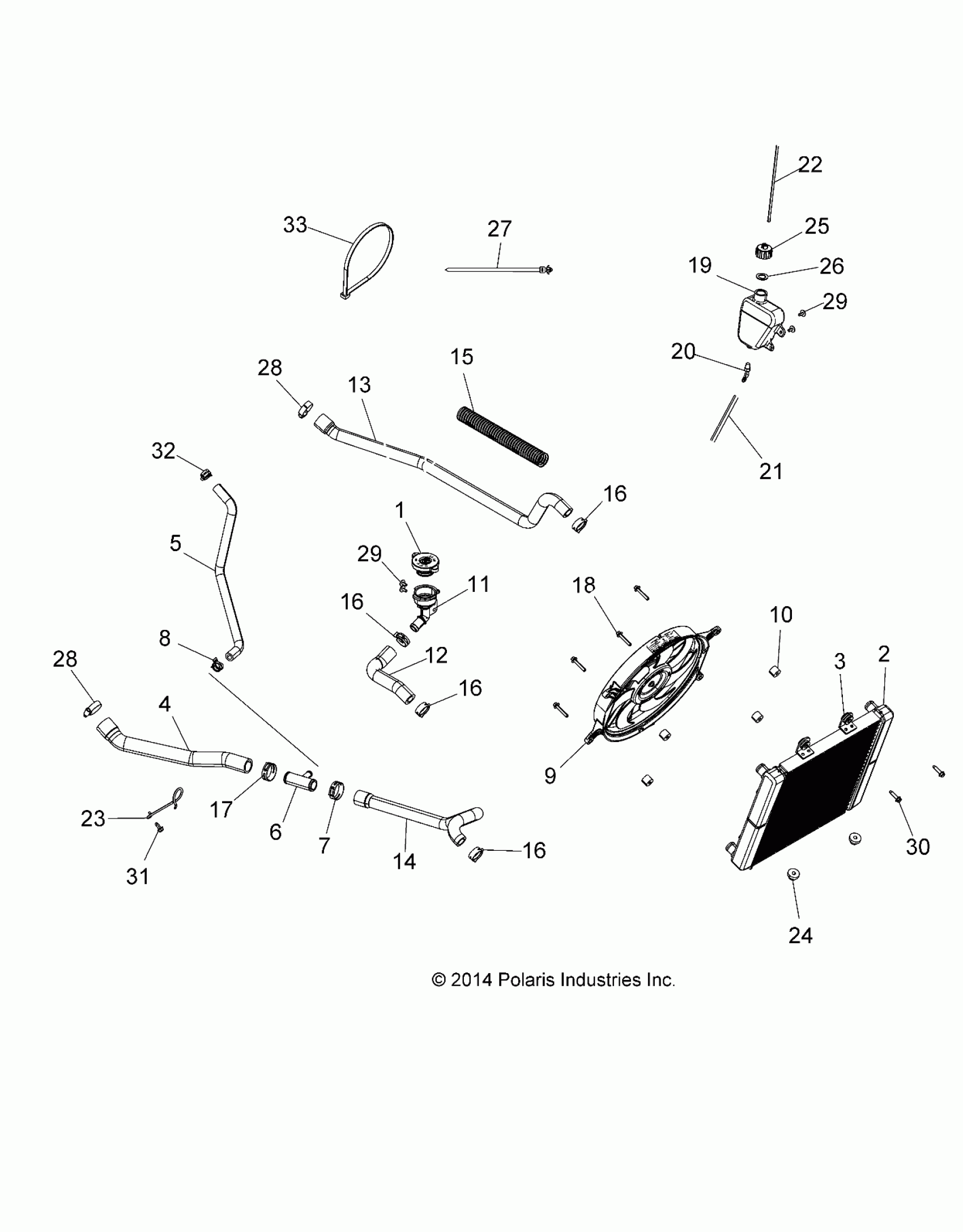

Polaris SPORTSMAN TOURING 570 SP (R09) - A16SJE57AB ENGINE, COOLING SYSTEM - A16SJE57AB (49ATVCOOL1570SPTR) Diagram

#

Description
Price

1

Cap, Pressure

1240508

$48.56

2

ASM., RADIATOR

1240520

$409.26

3

ASM., GROMMET AND INSERT

5413155

$3.99

4

HOSE, ENGINE, LOWER

5414805

$35.99

5

HOSE, BYPASS, FORMED

5414806

$31.99

6

CONNECTOR, TEE

7052530

$5.59

7

Clamp, Springband

7080843

$3.99

8

Clamp, Hose, Spring

7081719

$5.59

9

ASM., FAN AND MOTOR

2411330

$189.59

10

SPACER

5137361

$5.59

11

NECK, FILLER

5412402

$23.99

12

HOSE, FILLER NECK

5414228

$14.39

13

HOSE, RADIATOR, UPPER

5415339

$35.99

14

HOSE, RADIATOR, LOWER

5415340

$31.99

15

CONDUIT, FLEX

5521793-10

$6.39

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.19

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.19

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.19

16

CLAMP, SPRINGBAND, GREEN

7080841

$7.19

17

Clamp, Springband

7080843

$3.99

18

SCREW

7516827

$6.39

19

TANK-SURGE

5436936

$75.99

20

FITTING, BARBED, 90 DEG

7052065

$7.19

21

HOSE, CLEAR

8450003-1525

Unavailable

22

LINE, FUEL

8360009-600

Unavailable

23

SPRING, COOLANT HOSE GUIDE

5338063

$10.39

24

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

25

CAP, OVERFLOW BOTTLE W/FITTING

5437635

$4.79

26

GASKET-OVERFLOW CAP

5810279

$2.41

27

TIE, CABLE, PRESS MOUNT, BLACK

7080999

$9.59

28

CLAMP, HOSE

7081174

$7.19

28

CLAMP, HOSE

7081174

$7.19

29

Screw

7512084

$1.49

29

Screw

7512084

$1.49

30

Screw

7515179

$2.39

31

SCREW

7517386

$1.49

32

CLAMP-HOSE,.875-SS

7080474

$8.40

33

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41
