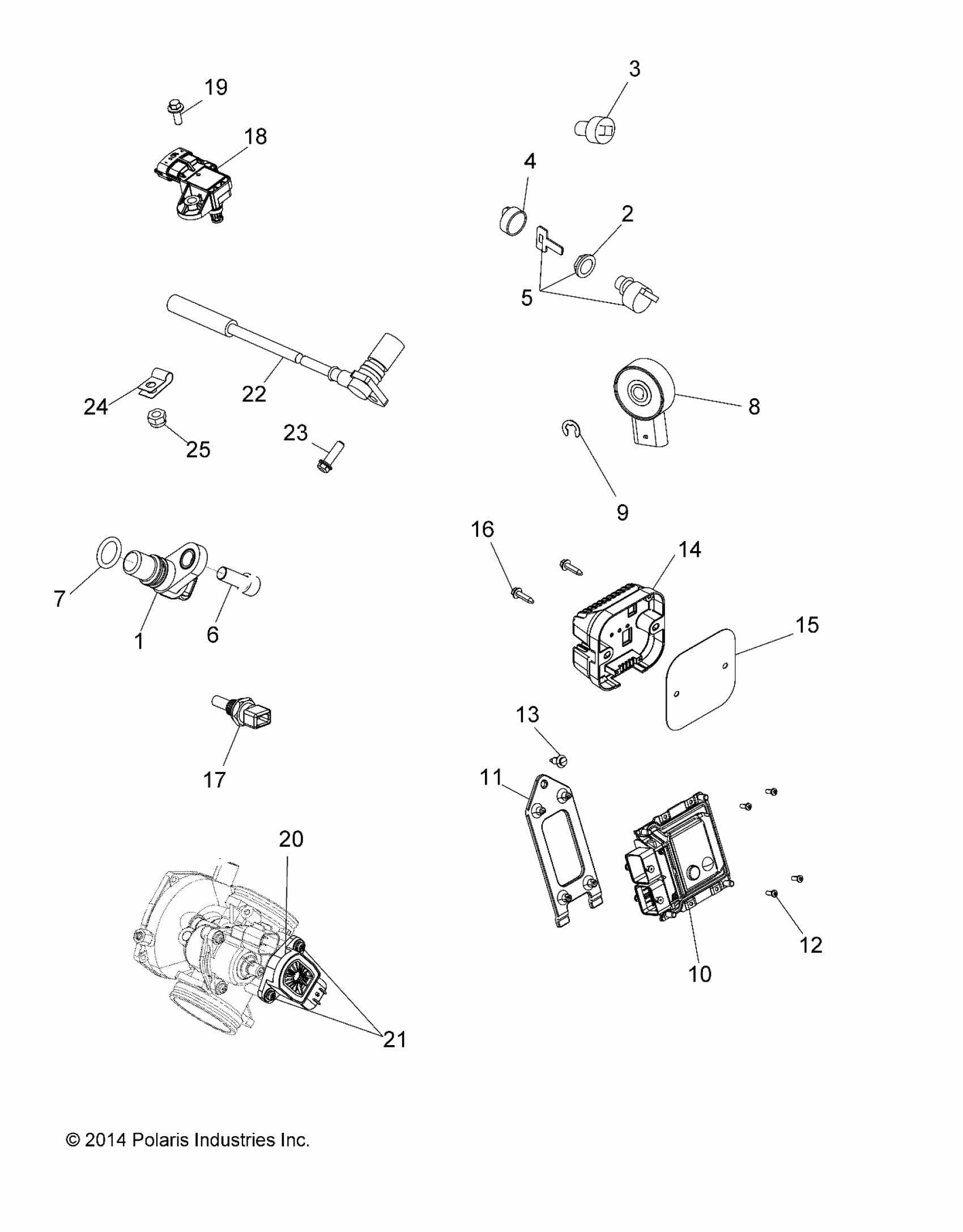

Polaris SPORTSMAN TOURING 570 SP (R09) - A16SJE57AB ELECTRICAL, SWITCHES, SENSORS and ECM - A16SJE57AB (49ATVELECT1570SPTR) Diagram

SENSOR-SPEED,TRANS

4013908

Unavailable

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

SWITCH [BRAKE PRESSURE]

4110164

Unavailable

KEY SWITCH KEY COVER

5433534

$12.35

SWITCH, KEY, 3 POSITION [INCL. 5,7,KEY]

4012165

$104.24

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

SCREW

3234247

$5.59

O-RING

3234302

$7.19

SWITCH, ROTARY, 2 PIN RESISTIVE [GEAR POSITION]

7661999

$111.99

RING, RETAINING

3233834

$10.39

ECU BASE

4012838

$440.69

MNT-ECM,REAR,BLK

5438708-070

$10.39

SCREW

7519091

$3.19

Rivet

7661855

$1.49

REGULATOR, 3PH, 50 AMP

4015231

$349.99

COVER, VOLTAGE REGULATOR

5253294

$10.39

Screw

7515179

$2.39

SENSOR-THERMISTER

4010644

$87.13

SENSOR-TMAP DSS3-TF

2411528

$93.08

BOLT

7516603

$10.39

ASM., SENSOR

3131705

$187.99

SCREW

3131628

$5.27

SENSOR, CRANK POSITION

2411719

$101.17

SCREW

7518576

$3.19

CLAMP-CABLE

7080367

$2.39

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79
