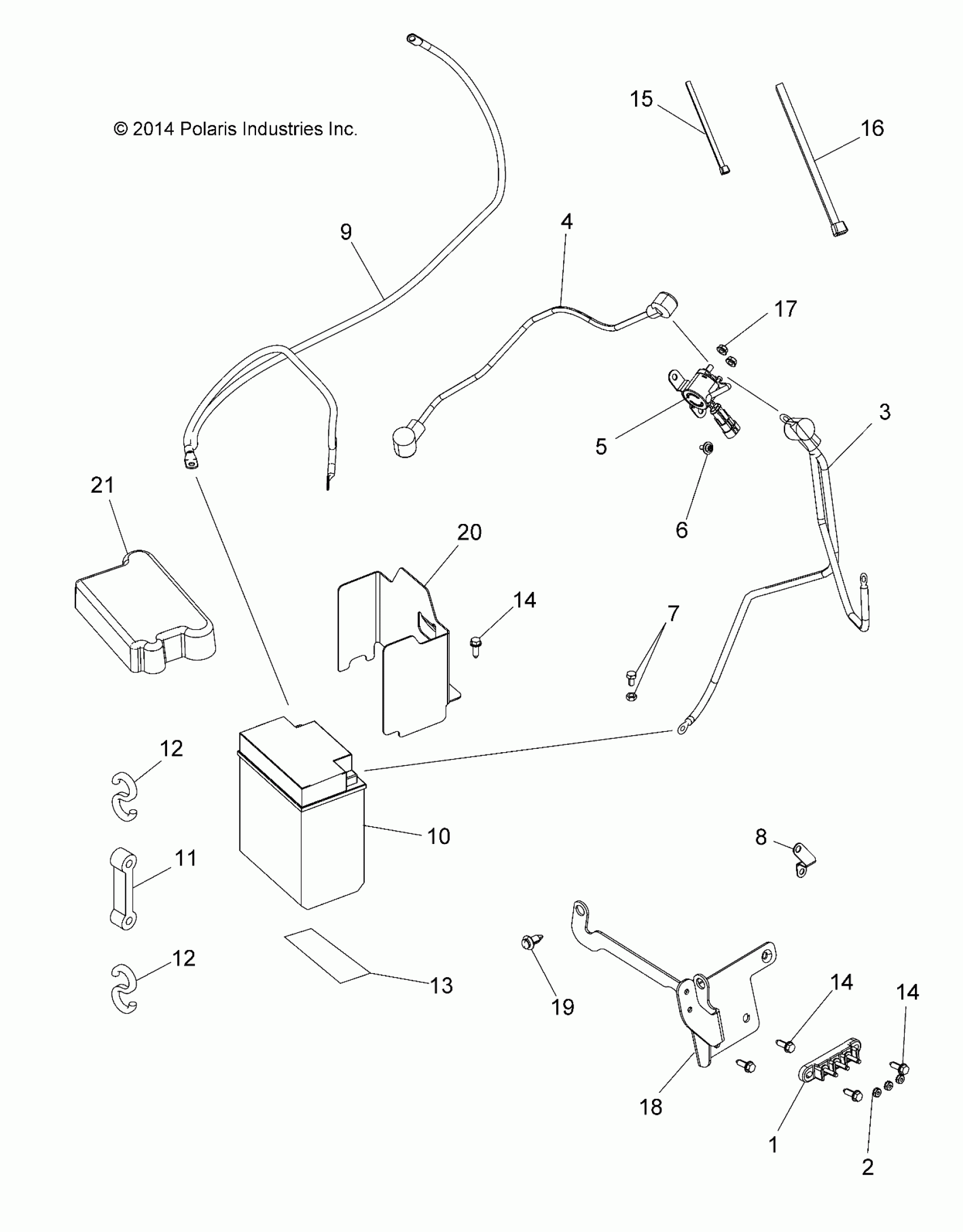

Polaris SPORTSMAN TOURING 570 SP (R09) - A16SJE57AB ELECTRICAL, BATTERY - A16SJE57AB (49ATVBATTERY15570SP) Diagram

#

Description
Price

1

BLOCK, TERMINAL, 3 POST

4011892

$27.99

2

NUT

7547341

$1.49

3

CABLE, BATTERY, 6 GAUGE

4014935

$55.99

4

INSULATOR-CABLE [USE WITH 4014424-845]

5410346

$6.39

4

CABLE, BATTERY, 6 GAUGE, FLAT

4014424-845

$47.99

5

SOLENOID, STARTER

4012001

Unavailable

6

Screw

7512084

$1.49

7

KIT, BATTERY BOLT

2202213

$3.79

8

STRAP, GROUND

5260167

$14.07

9

CABLE, BATTERY, 6 GAUGE

4014937

$35.99

10

BATTERY-SEALED,14AH,ETX15

4011138

$107.99

11

Strap, Battery Hold Down

5412499

$4.62

12

Hook, Battery Strap

7010032

$1.59

12

Hook, Battery Strap

7010032

$1.59

13

Foam, Cover

5813265

Unavailable

14

SCREW

7517386

$1.49

14

SCREW

7517386

$1.49

14

SCREW

7517386

$1.49

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

17

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

18

BRACKET, FUSE BLOCK

5259734

$27.99

19

Rivet

7661855

$1.49

20

BRACKET, BATTERY, GUARD

5259571

$31.99

21

BATTERY, COVER

5431769

$14.39
