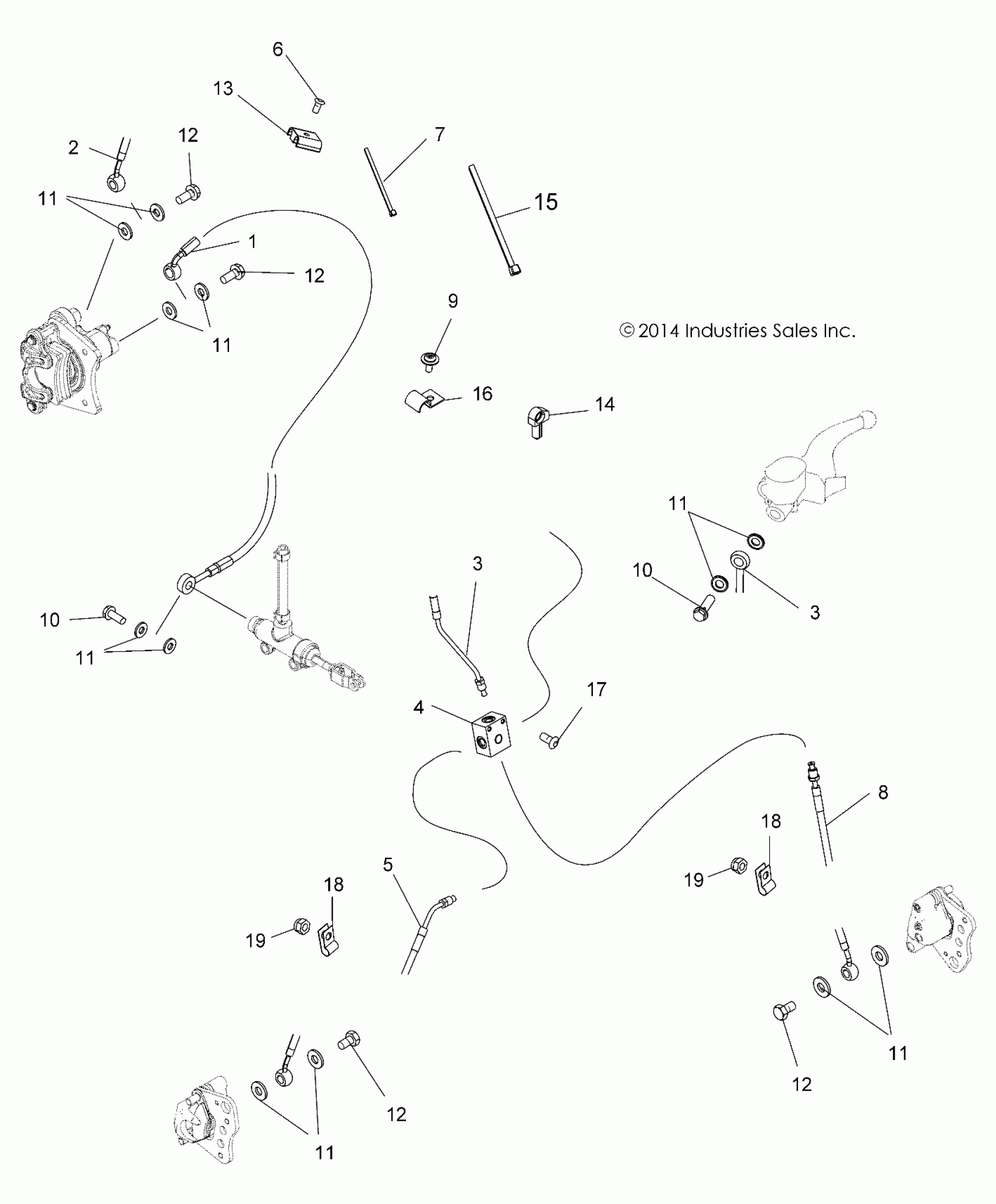

Polaris SPORTSMAN TOURING 570 SP (R09) - A16SJE57AB BRAKES, BRAKE LINES - A16SJE57AB (49ATVBRAKELINE1570SPTR) Diagram

#

Description
Price

1

LINE, BRAKE, REAR, MASTER CYLINDER

1912200

$116.17

2

LINE, BRAKE, JB TO REAR CALIPER

1912199

$119.98

3

LINE, BRAKE, POD

1910913

$64.75

3

LINE, BRAKE, POD

1910913

$64.75

4

FITTING, CROSS

7052292

$39.68

5

LINE, BRAKE, FRONT

1912386

$75.54

6

Screw

7517756

$1.19

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

LINE, BRAKE, LEFT FRONT

1912385

$66.65

9

SCREW

7512024

$4.76

10

BOLT, BANJO

1910499

$5.56

10

BOLT, BANJO

1910499

$5.56

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

11

SEAL

5413212

$4.84

12

BOLT, BANJO

1910499

$5.56

12

BOLT, BANJO

1910499

$5.56

12

BOLT, BANJO

1910499

$5.56

12

BOLT, BANJO

1910499

$5.56

13

CLIP, RETAINING

7670126

$4.76

14

Clip

7670102

$2.38

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

16

CLIP, HALF

7081940

$3.97

17

Screw

7512084

$1.19

18

CLIP-P,W/CUSHION,BLACK,VINYL

7082067

Unavailable

18

CLIP-P,W/CUSHION,BLACK,VINYL

7082067

Unavailable

19

NUT, NYLOK

7547025

$2.62

19

NUT, NYLOK

7547025

$2.62
