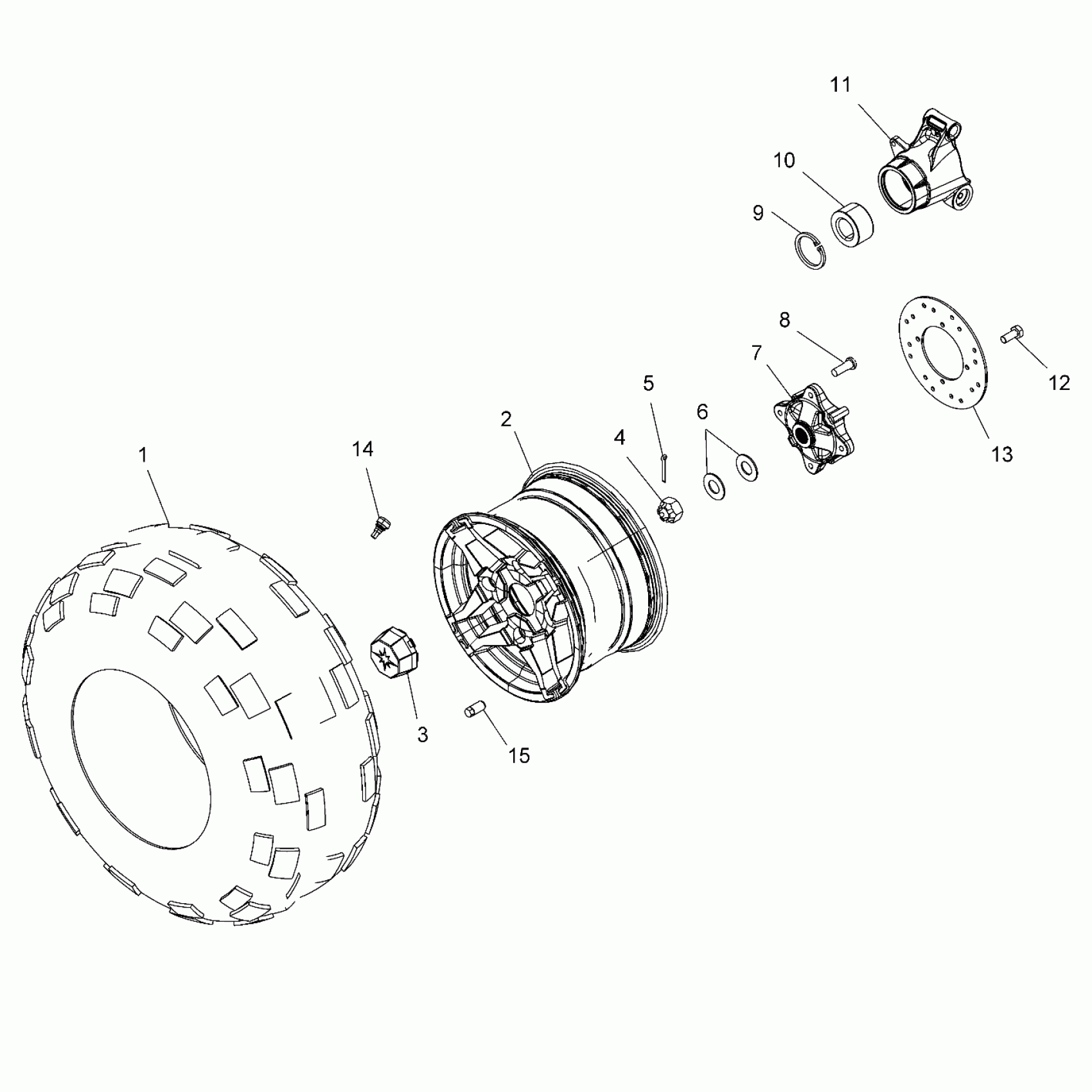

Polaris SPORTSMAN TOURING 570 SP (R03) - A19SJE57BH WHEELS, REAR TIRE and BRAKE DISC - A19SJE57BH (49ATVWHEELREAR15570SP) Diagram

Description

Price

TIRE-26X10-14,CU06S

5415601

$157.49

RIM-REAR,14X7.5,NO MACH,M.BLK

1522455-458

$269.99

COVER-HUB,M.BLK [TO 6/20/2024]

5451374-458

$19.84

CAP-RIM,MATTE BLK [FRM 6/20/2024]

5459343-458

$15.87

NUT, CASTLE

7547337

$1.98

PIN, COTTER

7661404

$4.76

WASHER, CONE

7555796

$7.94

HUB, REAR WHEEL

5135113

$99.74

STUD

7518378

$1.59

RING, RETAINING

7710440

$10.32

BEARING-WHEEL,40X74X40MM

3514917

$39.68

BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]

3515087

$63.49

CARRIER, BEARING, WHEEL

5135563

$71.43

BOLT

7518903

$3.97

DISC, BRAKE, REAR

5248250

$76.89

VALVE-RIM

1525017

$6.46

NUT, WHEEL

7547309

$3.57
