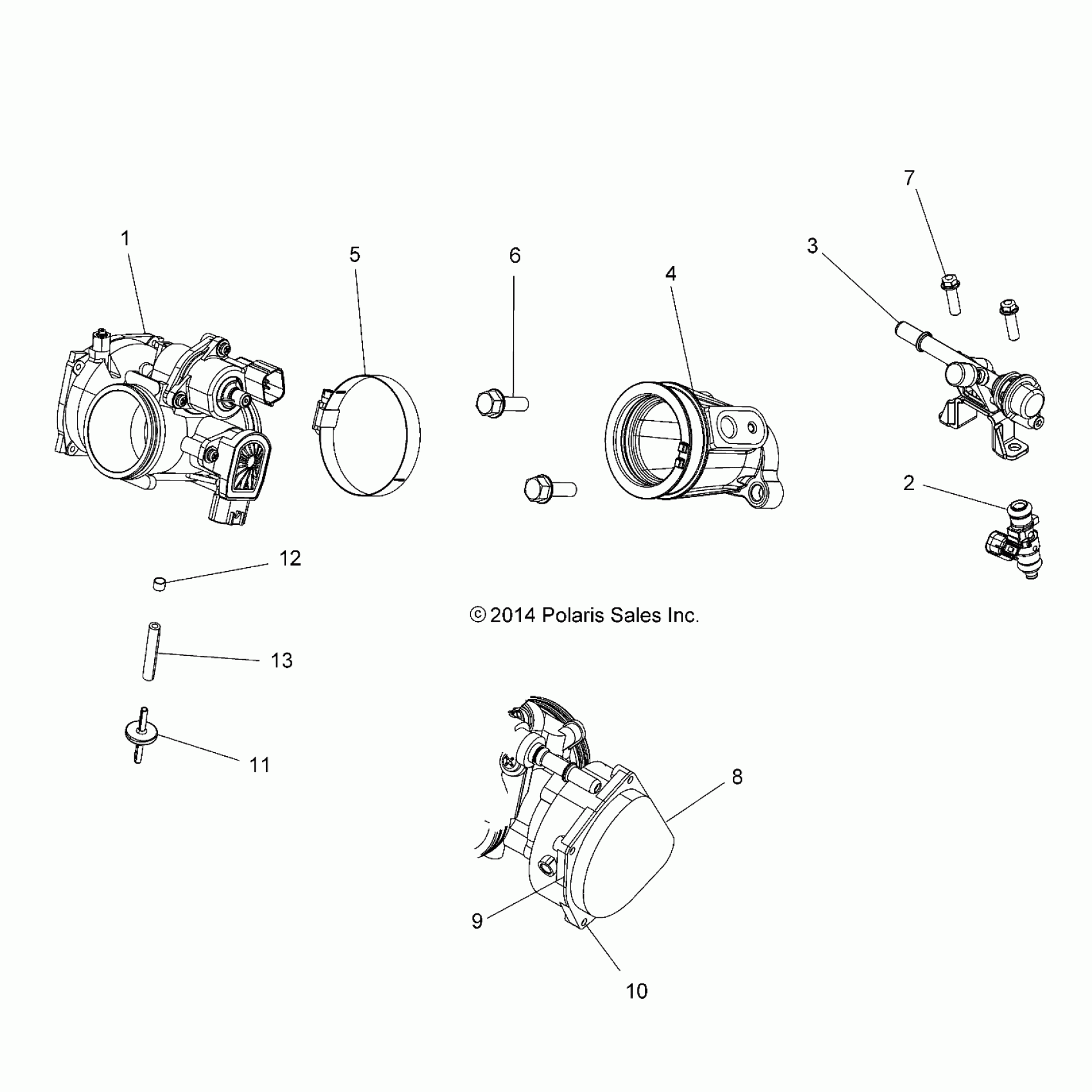

Polaris SPORTSMAN TOURING 570 SP (R03) - A19SJE57BH ENGINE, THROTTLE BODY and FUEL RAIL - A19SJE57BH (49ATVTHROTTLEBODY15570AA) Diagram

#

Description
Price

1

ASM., THROTTLE BODY

1205009

$347.99

2

INJECTOR, FUEL [INCL. O-RING]

2521068

$95.99

2

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

2

O-RING GREEN, LOWER

5415066

$11.32

3

RAIL, FUEL

2521403

$131.19

4

ADAPTER-THROTTLE BODY,MECH

5415524

$75.99

5

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.19

6

SCREW

7516734

$3.19

7

SCREW

7518576

$3.19

8

COVER-THROTTLE BODY

5259059

$5.59

9

GASKET-TB HOUSING

5415104

$1.59

10

SCREW

7519292

$1.49

11

CHECK VALVE

7052038

$10.51

12

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

13

FUEL LINE-55 CENTIMETERS

8450003-55

Unavailable
