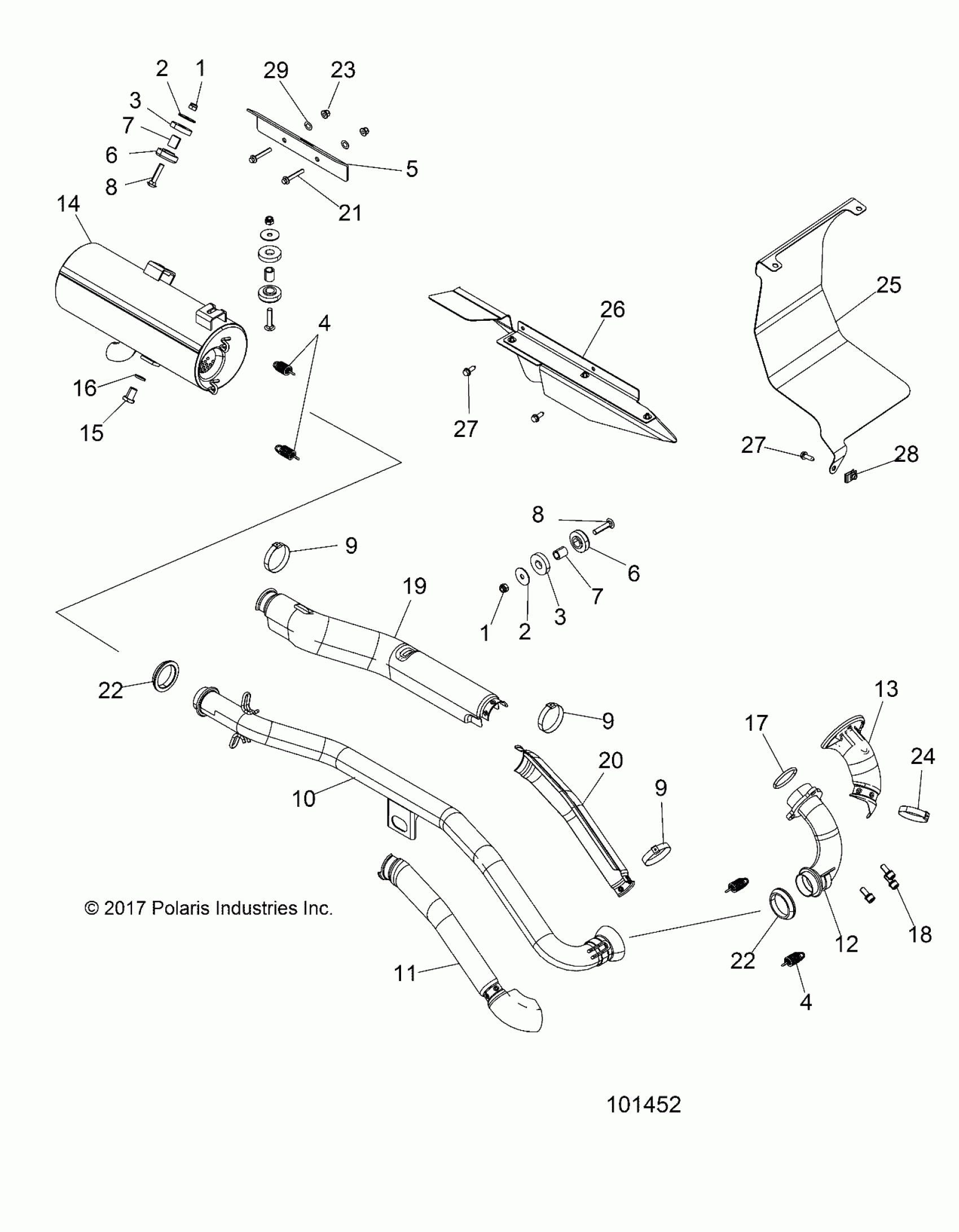

Polaris SPORTSMAN TOURING 570 SP (R03) - A19SJE57BH ENGINE, EXHAUST - A19SJE57BH Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER

7555716

$1.59

2

WASHER

7555716

$1.59

3

WASHER, RUBBER

5414945

$4.79

3

WASHER, RUBBER

5414945

$4.79

4

SPRING

7041804

$7.99

4

SPRING

7041804

$7.99

5

BRKT-SILENCER,FRAME,PLTD

5263678

$39.59

6

DAMPER-VIBRATION

5414946

$4.79

6

DAMPER-VIBRATION

5414946

$4.79

7

BUSHING

5010192

$6.39

7

BUSHING

5010192

$6.39

8

BOLT

7515316

$2.39

8

BOLT

7515316

$2.39

9

CLAMP-HOSE, 2.00-SS

7082359

$13.59

9

CLAMP-HOSE, 2.00-SS

7082359

$13.59

9

CLAMP-HOSE, 2.00-SS

7082359

$13.59

10

ASM-EXHAUST PIPE,570 EFI,SS [INCL. PIPE, SHIELDS, CLAMPS]

1263100

$275.99

11

SHIELD-HEAT,EXHAUST,MID

5260801

$59.99

12

WELD-MANIFOLD

1263099

$139.99

13

SHIELD-HEAT,EXHAUST HEADPIPE

5260800

$35.99

14

WELD-EXHAUST,SILENCER [INCL. 15,16]

1263139

Unavailable

15

BOLT-1/2-20X5/8 HXHDCAP-GR5-P

7520756

$5.59

16

WASHER-CLEAN OUT .51X75X.09

7557077

$8.35

17

GASKET-EXHAUST SEALING

5253989

$27.99

18

SCREW

7517555

$8.79

19

SHIELD-HEAT,EXHAUST,REAR

5265059

$67.99

20

SHIELD-HEAT,EXHAUST MID,INNER

5260808

$63.99

21

Bolt

7518341

$4.79

22

SEAL, EXHAUST

5256385

$27.99

22

SEAL, EXHAUST

5256385

$27.99

23

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

24

CLAMP-45.0DX7W,304SS,OETIKER

7082132

$4.79

25

SHIELD-FUEL TANK,FRAME MNT,TRG

5262925

$27.99

26

ASM-SHIELD,AIRBOX

2636957

$52.79

27

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

27

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.49

28

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59

29

WASHER-FL 10.7X21.9X2.5-Y

7556099

$1.59
