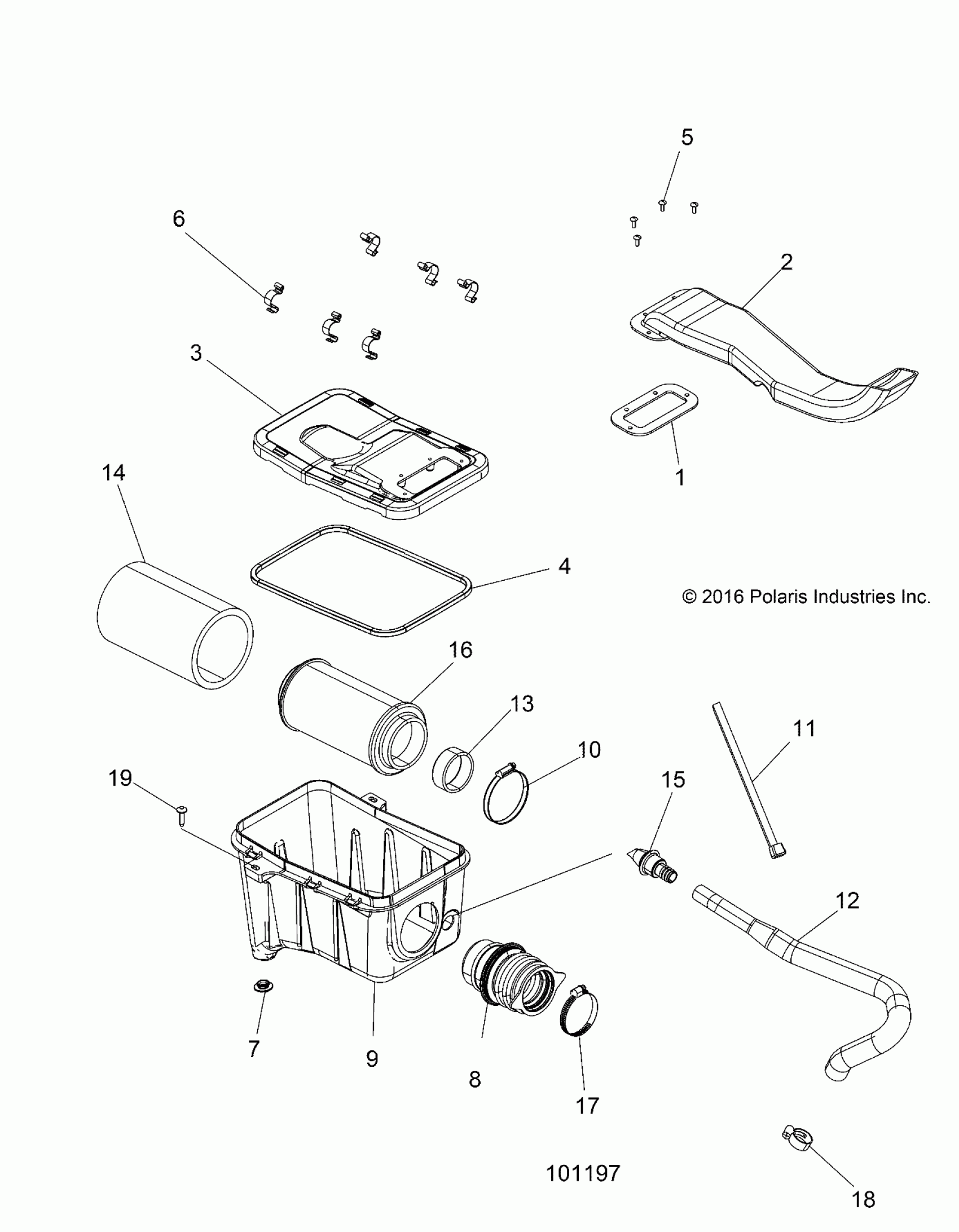

Polaris SPORTSMAN TOURING 570 SP (R03) - A19SJE57BH ENGINE, AIR INTAKE SYSTEM - A19SJE57BH Diagram

#

Description
Price

1

Gasket, Intake

5411422

$6.63

2

DUCT, AIR INLET

5450580

$30.39

3

COVER, AIR BOX

5450388

Unavailable

4

SEAL, AIRBOX COVER

5813949

$27.99

5

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

6

CLIP-AIR BOX

5242044

$9.59

7

PLUG-COMPARTMENT

5412981

Unavailable

8

BOOT, INTAKE

5414638

$23.99

9

BOX, AIR INTAKE

5450387

$127.99

10

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

11

CABLE-TIE,10-102MM,WEATH.-RES. [14"]

7080761

$2.39

11

CABLE-TIE,DIA12-50MM,WTHR-RES. [9"]

7080138

$2.41

12

HOSE, BREATHER

5415276

$31.99

13

SLEEVE, CARB, INNER

5433847

$13.59

14

Filter, Precleaner Sleeve

5811633

$11.99

15

VALVE, BREATHER

7052577

$23.99

16

FILTER, AIR INTAKE

7082101

Unavailable

16

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

17

Clamp, Narrow Band

7080413

$3.19

18

CLAMP, HOSE

7081174

$7.19

19

SCREW

7517685

$1.59
