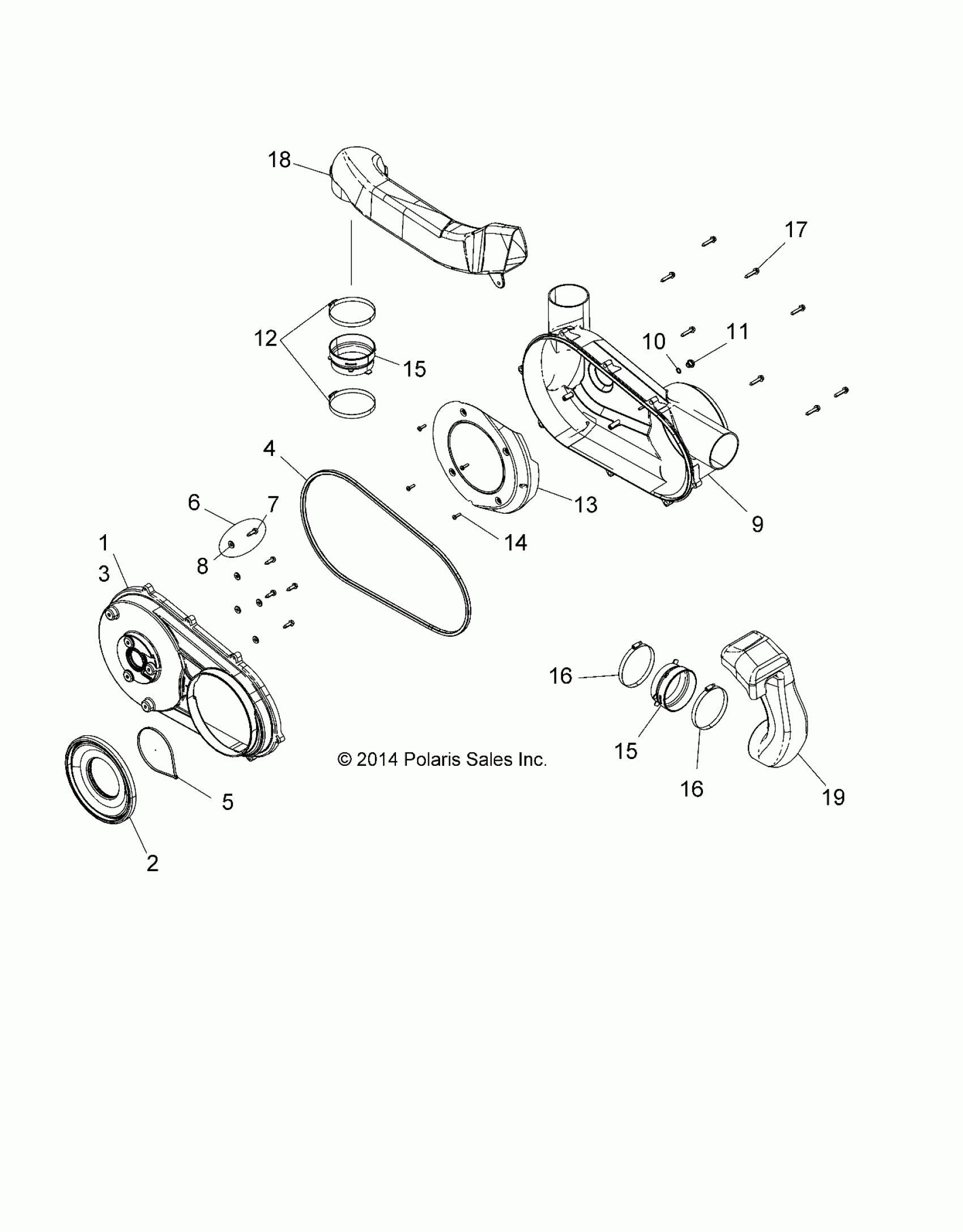

Polaris SPORTSMAN TOURING 570 SP (R03) - A19SJE57BH BODY, CLUTCH COVER - A19SJE57BH (49ATVCLUTCHCVR1570TRG) Diagram

ASM., CLUTCH COVER, INNER [INCL. COVER,2,3]

2634896

$105.22

SEAL, COVER, CLUTCH, INNER

5414727

$60.70

COVER, CLUTCH INNER, BLACK

5450209-070

$105.22

SEAL, OUTER CLUTCH COVER

5521738

$44.51

CABLE-TIE,13-102MM,NON-FLAM

7082260

$5.65

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.56

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.19

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

ASM., COVER, CLUTCH, OUTER [INCL. COVER,PLUG,O-RING,13,14]

2634897

$204.43

O RING-.364X.504X.07

5410542

$4.84

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

CLAMP, WORM DRIVE

7081626

$7.94

COVER, CLUTCH, INTAKE, BAFFLE

5450420

$93.08

SCREW

7512026

$1.19

BOOT, DUCT, CLUTCH

5414768

$14.56

BOOT, DUCT, CLUTCH

5414768

$14.56

CLAMP, WORM DRIVE

7081626

$7.94

CLAMP, WORM DRIVE

7081626

$7.94

SCREW

7519849

$3.17

CABLE-TIE,10-102MM,WEATH.-RES. [FOR USE W/AIR INLET DUCT 5451354]

7080761

$2.41

DUCT, AIR INLET, CLUTCH

5451354

$75.54

DUCT, CLUTCH OUTLET

5450546

$62.21
