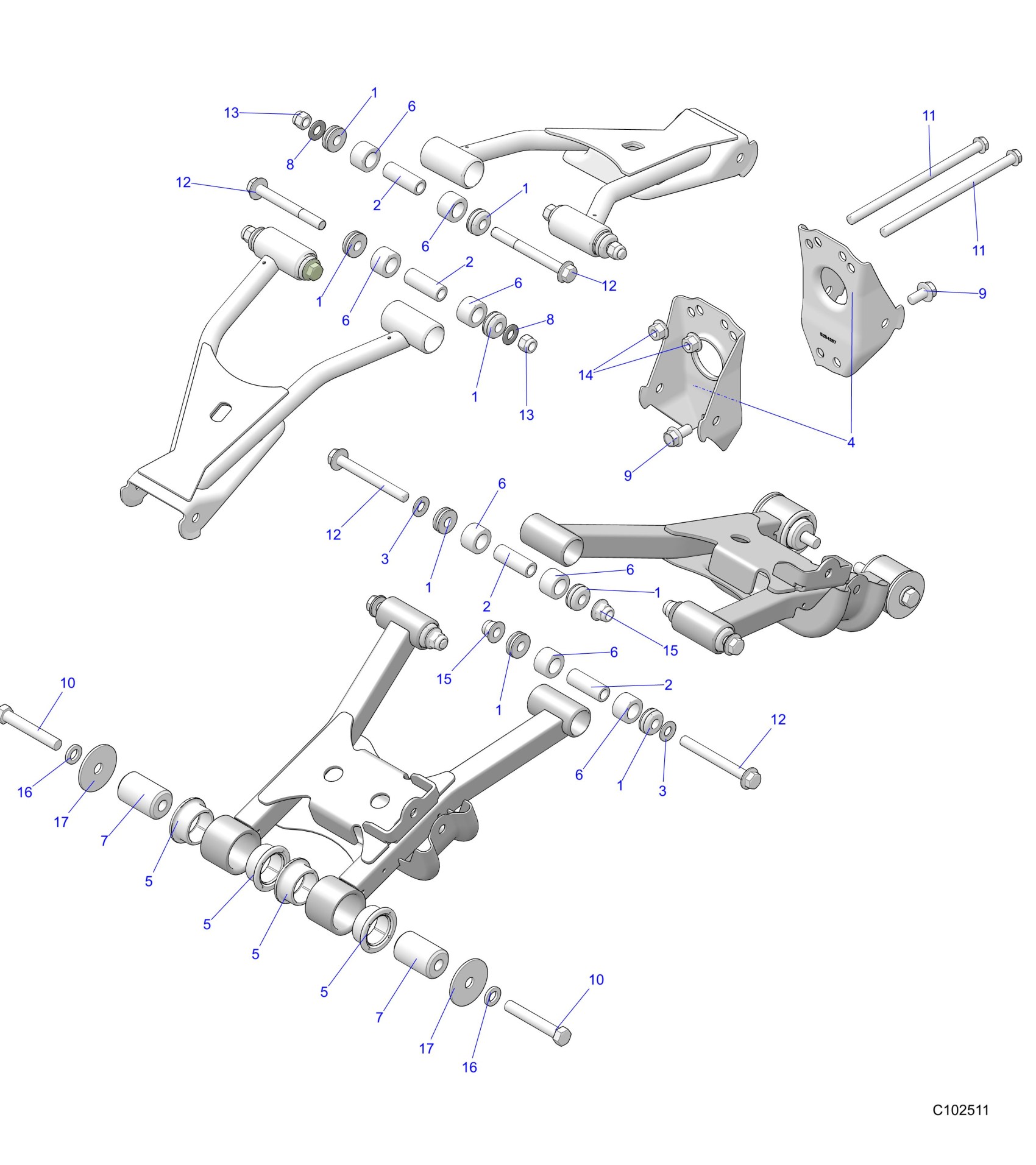

Polaris SPORTSMAN TOURING 570 (R02) - A25SDZ57AP SUSPENSION, REAR CONTROL ARM, MOUNTING - A25SDZ57AP (C102511) Diagram

#

Description
Price

1

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

1

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

1

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

1

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

1

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

1

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

1

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

1

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

2

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

2

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

2

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

2

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

3

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

3

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

4

BRKT-CONTROL-ARM,PIVOT10MM,BLK

5264874-329

$31.99

5

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

5

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

5

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

5

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

6

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

6

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

6

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

6

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

6

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

6

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

6

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

6

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

7

BUSHING, BEARING CARRIER

5632291

$23.99

7

BUSHING, BEARING CARRIER

5632291

$23.99

8

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

8

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

9

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

9

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

10

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

10

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

11

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$7.91

11

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$7.91

12

SCR-HXFL-M10X1.25X90 10.9 ZOD

7521024

$3.99

12

SCR-HXFL-M10X1.25X90 10.9 ZOD

7521024

$3.99

12

SCR-HXFL-M10X1.25X90 10.9 ZOD

7521024

$3.99

12

SCR-HXFL-M10X1.25X90 10.9 ZOD

7521024

$3.99

13

NUT-3/8-24(NYLOK)-Y

7542439

$1.49

13

NUT-3/8-24(NYLOK)-Y

7542439

$1.49

14

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

15

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

16

WASHER-LOCK, 7/16-B

7552614

$1.59

16

WASHER-LOCK, 7/16-B

7552614

$1.59

17

WASHER, FLAT

7555740

$1.59

17

WASHER, FLAT

7555740

$1.59
