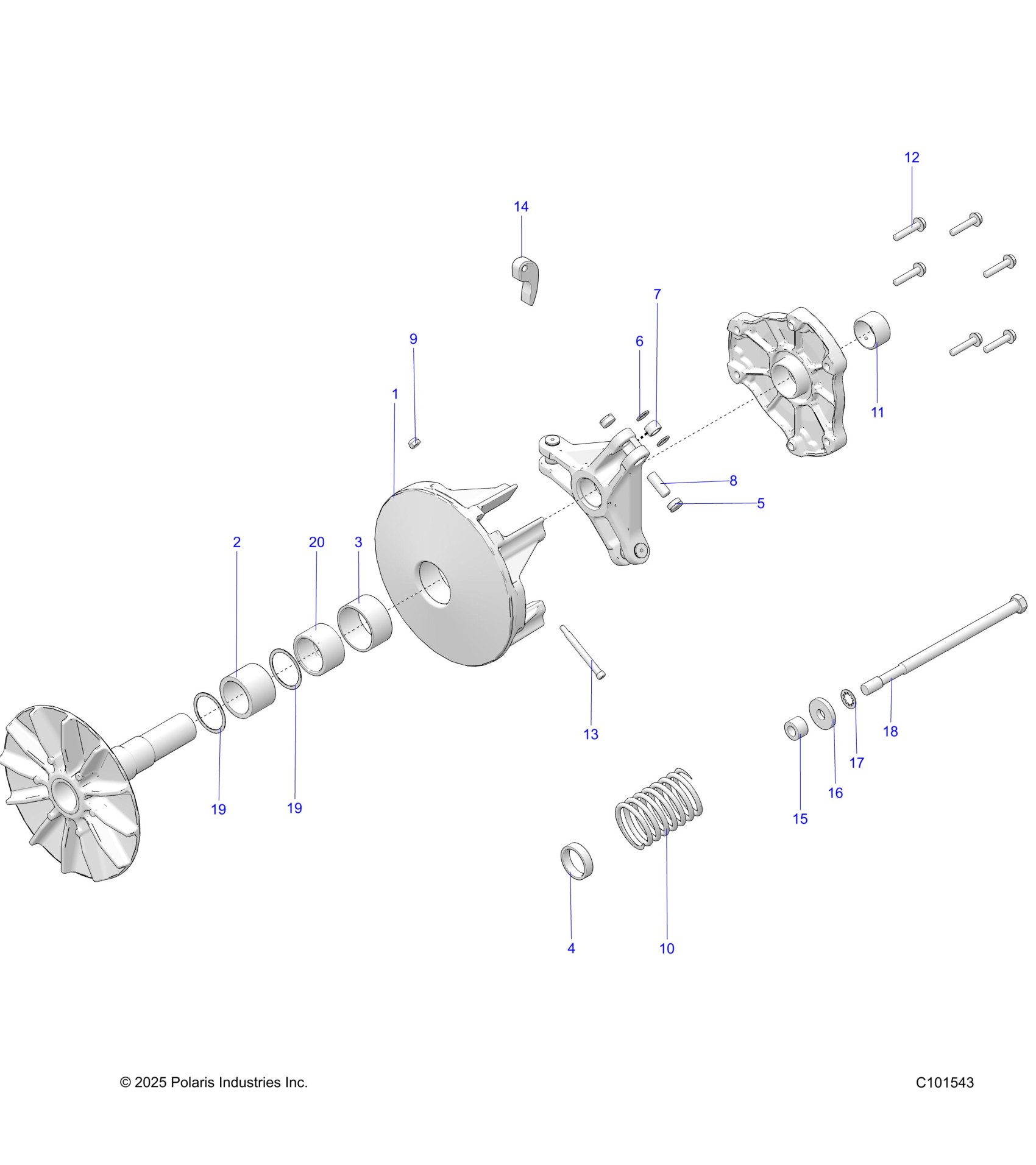

Polaris SPORTSMAN TOURING 570 (R02) - A23SDA57A5/E57A4 DRIVE TRAIN, PRIMARY CLUTCH - A23SDA57A5 (C101543) Diagram

#

Description
Price

1

ASM., DRIVE CLUTCH, BEARING [INCL. 1-9,11-13,19]

1323167

Unavailable

2

BEARING-NEEDLE

3514609

$35.99

3

BEARING-DU,1.75ID

3514492

$31.99

4

SPACER, CLUTCH, LIMITER

5450770

$11.19

5

BUTTON, CLUTCH, RUBBER BACKED

5439254

$7.99

6

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

7

ASM-ROLLER AND BUSHING

1321457

$40.46

8

PIN-ROLLER

5020422

$2.39

9

NUT-10-24-FLEX LOC-Z

7541906

$3.19

10

SPRING-CLUTCH, 35-240

7043594

$47.99

11

BEARING COVER, .75IN

3514684

$15.99

12

SCR-1/4-20X1.25 HX/FL GR5

7518062

$4.79

13

SCR-SH-1/4X2 SAE4037 BLKOX&OIL

7512266

$3.19

14

WEIGHT-SHIFT,25-52G,PM

5632409

$31.99

15

BUSHING-.437 X.770 X.50

5430261

$7.19

16

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

17

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

18

SCR-HH-7/16-20X8 GR8 PHOS/OIL

7519287

$34.99

19

WASHER-CLUTCH,VESPEL

7556335

$6.39

19

WASHER-CLUTCH,VESPEL

7556335

$6.39

20

SPACER, CLUTCH

5633037

$35.99
