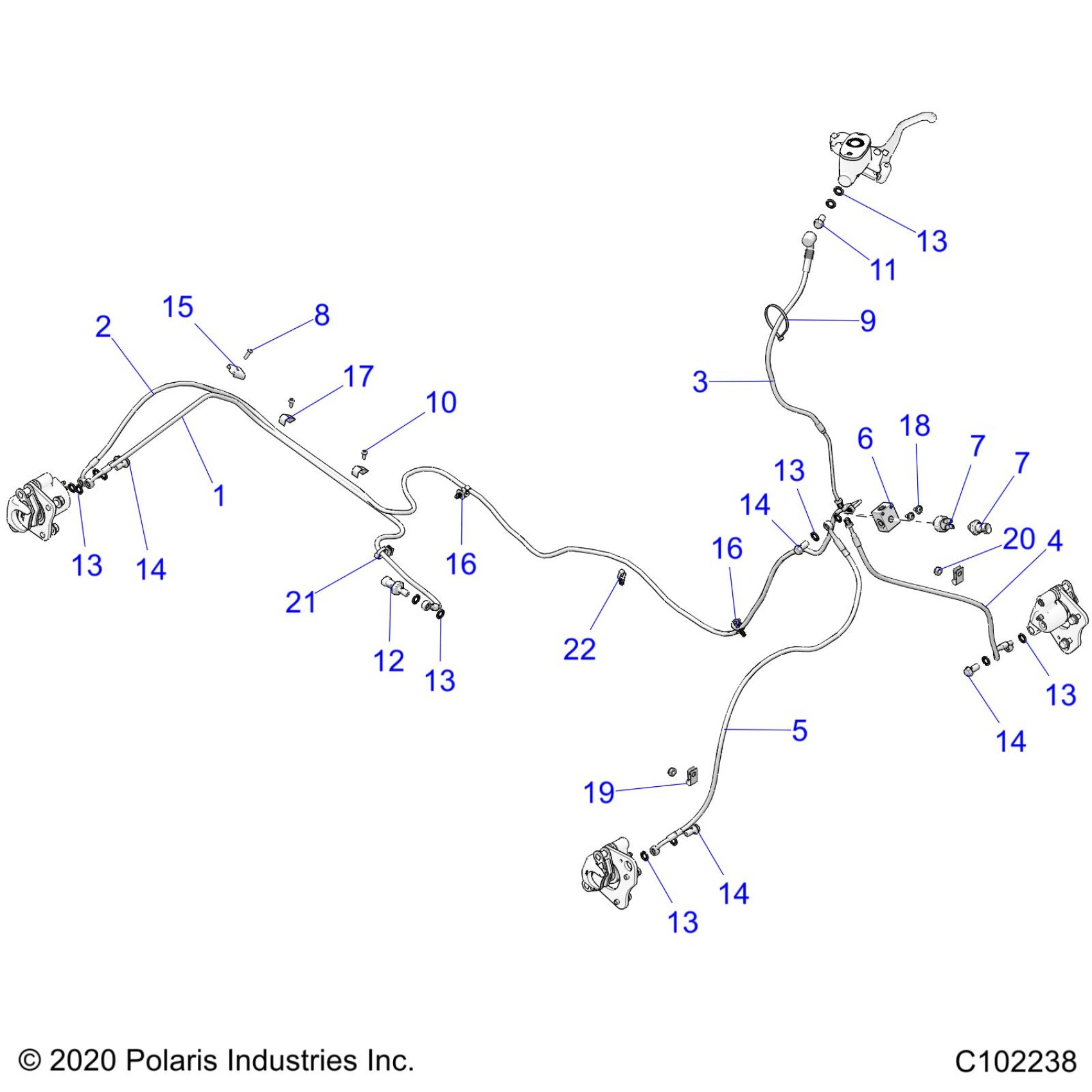

Polaris SPORTSMAN TOURING 570 (R02) - A23SDA57A5/E57A4 BRAKES, BRAKE LINES - A23SDA57A5/E57A4 (C102238) Diagram

#

Description
Price

1

LINE-BRK,MCR,44,70B,20B,90,G2

1913042

$95.99

2

LINE-BRK,RR,87,90F,70B,70,G2

1913043

$107.99

3

LINE-BRK,MCT,22,30B,CF1,0,JF

1913044

$63.99

4

LINE-BRK,FL,26,OF,70B,G2

1913036

$75.99

5

LINE-BRK,FR,29,50F,70B,90,G2

1913037

$75.99

5

LINE-BRK,FR,33,20SB,70B,190,G2 [E57A4]

1913035

$67.99

6

FITTING-CROSS,ATV BRAKE

7052292

$39.99

6

FITTING-CROSS,ATV,BRAKE,BANJO [E57A4]

7052662

$39.99

7

SWITCH-BRK,1/8"-27 NPTF,SEALED

4015069

$111.10

7

SWITCH-BRK,1/8"-27 NPTF,SEALED

4015069

$111.10

8

SCR-#10-24X5/8PN/TR-RDTORX-Y

7517756

$1.49

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

SCR-#10-24X1/2PH/TORX-TRIRD-Y

7512024

$4.79

11

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

12

SWITCH-BRK,M10X1.25,SGL,30-79

4081240

$67.99

13

SEAL-STAT-0-3/8, 70EP [QTY 14 FOR E57A4]

5413212

$4.79

13

SEAL-STAT-0-3/8, 70EP [QTY 14 FOR E57A4]

5413212

$4.79

13

SEAL-STAT-0-3/8, 70EP [QTY 14 FOR E57A4]

5413212

$4.79

13

SEAL-STAT-0-3/8, 70EP [QTY 14 FOR E57A4]

5413212

$4.79

13

SEAL-STAT-0-3/8, 70EP [QTY 14 FOR E57A4]

5413212

$4.79

13

SEAL-STAT-0-3/8, 70EP [QTY 14 FOR E57A4]

5413212

$4.79

14

BOLT-BANJO,10MMX1.00-6G

1910499

$5.59

14

BOLT-BANJO,10MMX1.00-6G

1910499

$5.59

14

BOLT-BANJO,10MMX1.00-6G

1910499

$5.59

14

BOLT-BANJO,10MMX1.00-6G

1910499

$5.59

15

CLIP-RETAINING,DUAL .250" LINE

7670126

$4.79

16

CLIP-NYLON, C, FIR-TREE

7662310

$4.79

16

CLIP-NYLON, C, FIR-TREE

7662310

$4.79

17

CLIP-HALF-Y

7081940

$3.99

18

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.49

19

CLAMP-CABLE

7080367

$2.39

20

NUT-5/16-18,NYLOC,THIN-Y

7542344

$3.99

21

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

22

CLIP-ROUTING

7082522

$3.99
