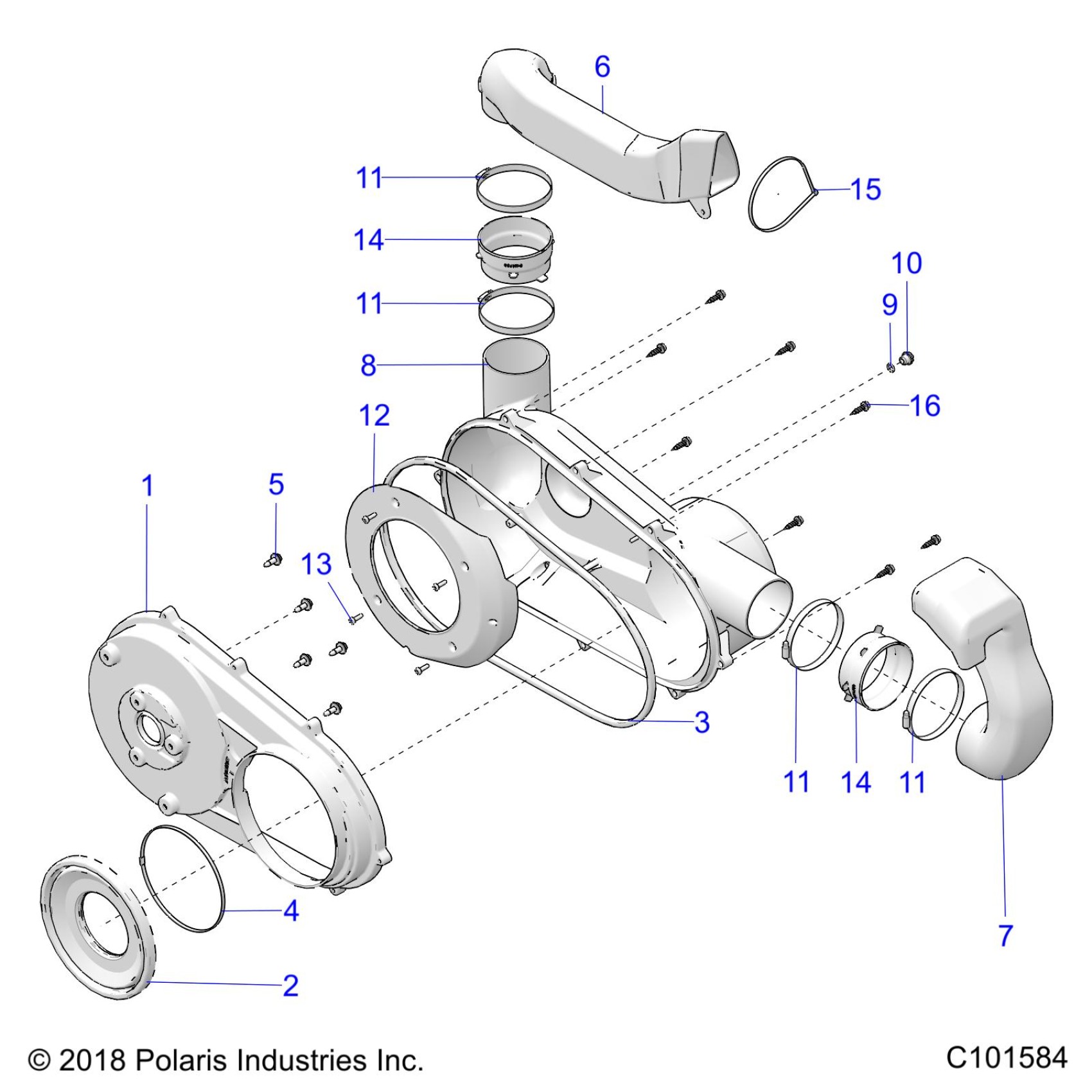

Polaris SPORTSMAN TOURING 570 (R02) - A23SDA57A5/E57A4 BODY, CLUTCH COVER - A23SDA57A5/E57A4 (C101584) Diagram

ASM., CLUTCH COVER, INNER [INCL. COVER,2,3]

2634896

$105.22

SEAL, COVER, CLUTCH, INNER

5414727

$60.70

SEAL-OUTER CLUTCH COVER

5526450

$44.51

CABLE-TIE,13-102MM,NON-FLAM

7082260

$5.65

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.19

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.56

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

DUCT, AIR INLET, CLUTCH

5451354

$75.54

DUCT, CLUTCH OUTLET

5450546

$62.21

ASM-CLUTCH COVER/DUCTS,OUTER [INCL. 8-10,12&13]

2635412

Unavailable

ASM., COVER, CLUTCH, OUTER

2634897

$204.43

O RING-.364X.504X.07

5410542

$4.84

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

CLAMP-WORM DRIVE,3.69 DIA

7081626

$7.94

CLAMP-WORM DRIVE,3.69 DIA

7081626

$7.94

CLAMP-WORM DRIVE,3.69 DIA

7081626

$7.94

CLAMP-WORM DRIVE,3.69 DIA

7081626

$7.94

COVER, CLUTCH, INTAKE, BAFFLE

5450420

$93.08

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

BOOT, DUCT, CLUTCH

5414768

$14.56

BOOT, DUCT, CLUTCH

5414768

$14.56

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

SCR-#14X1-1/4,HI/LO/TAPER-Y

7519849

$3.17
